DTC 51 Abs Pump Motor Lock

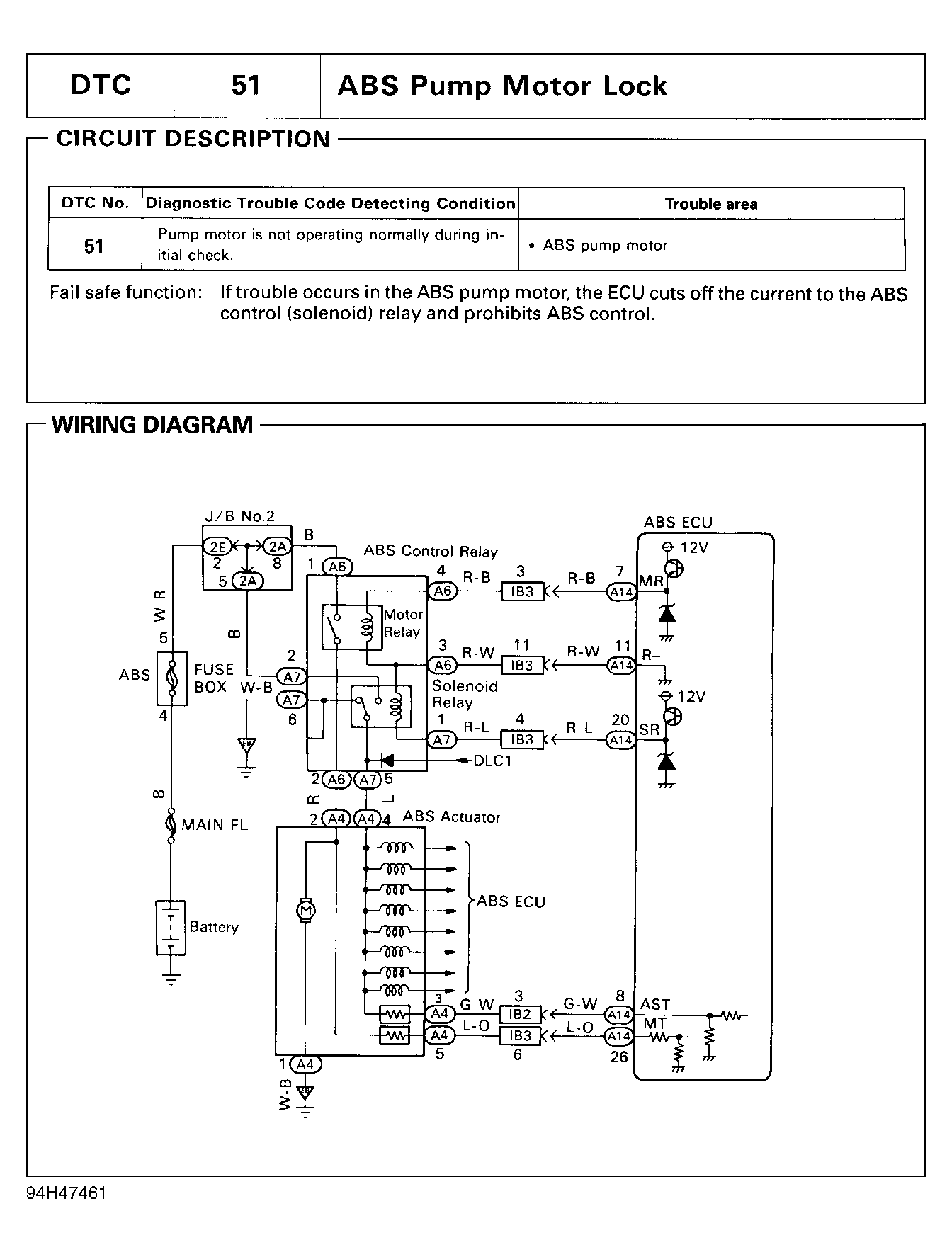

Fig 1: DTC 51 ABS PUMP MOTOR LOCK CHART
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
