Engine Compartment Fuses

Engine compartment fuses are located in the engine compartment. See Fig 1. For engine compartment fuses legends, see POWER SOURCE (CURRENT FLOW CHART) .

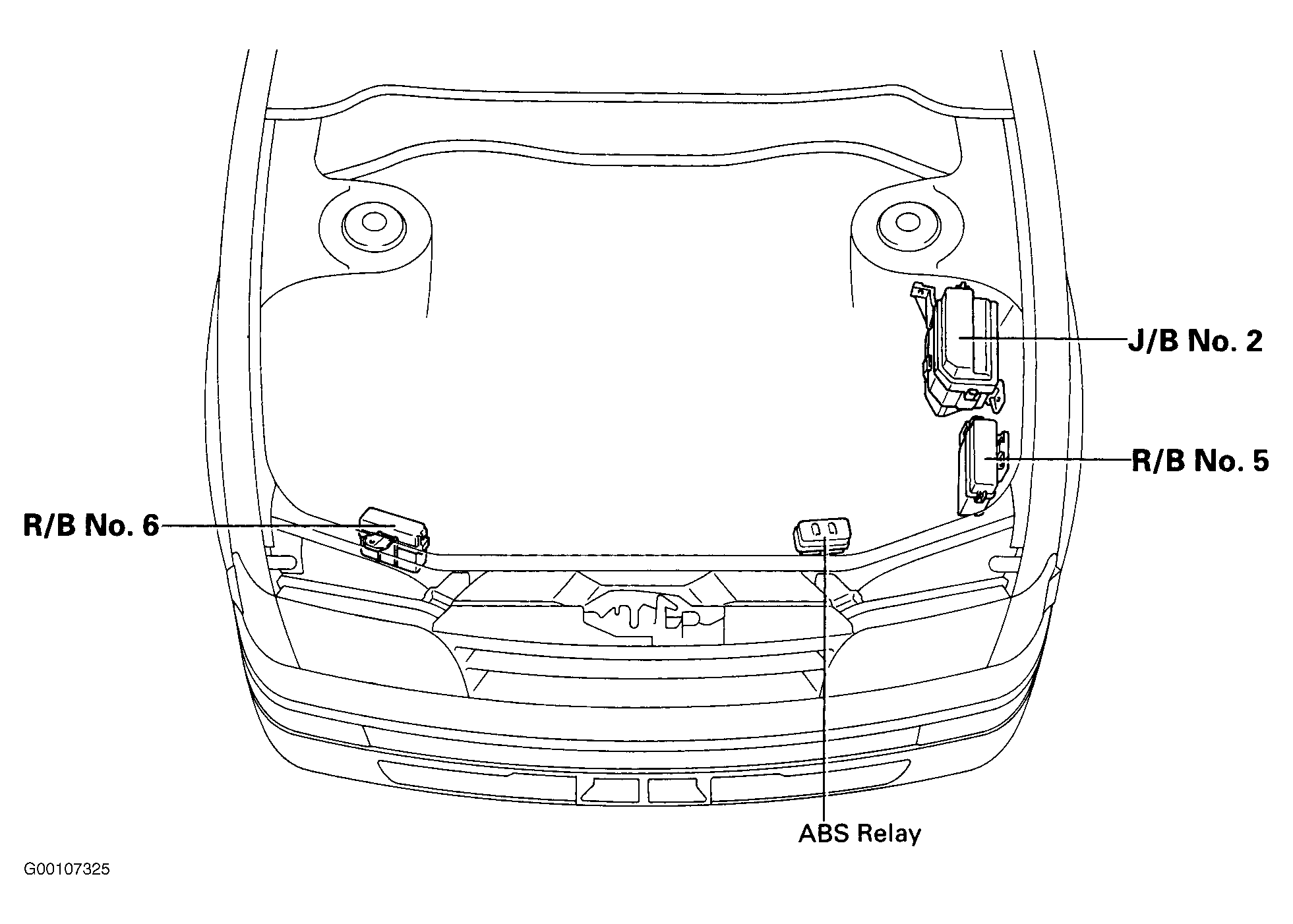

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying J/B No. 2 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying R/B No. 5 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying R/B No. 6 Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
