Front Suspension System: Description

For exploded view of front suspension, refer to illustrations. See Fig 1 and Fig 2 .

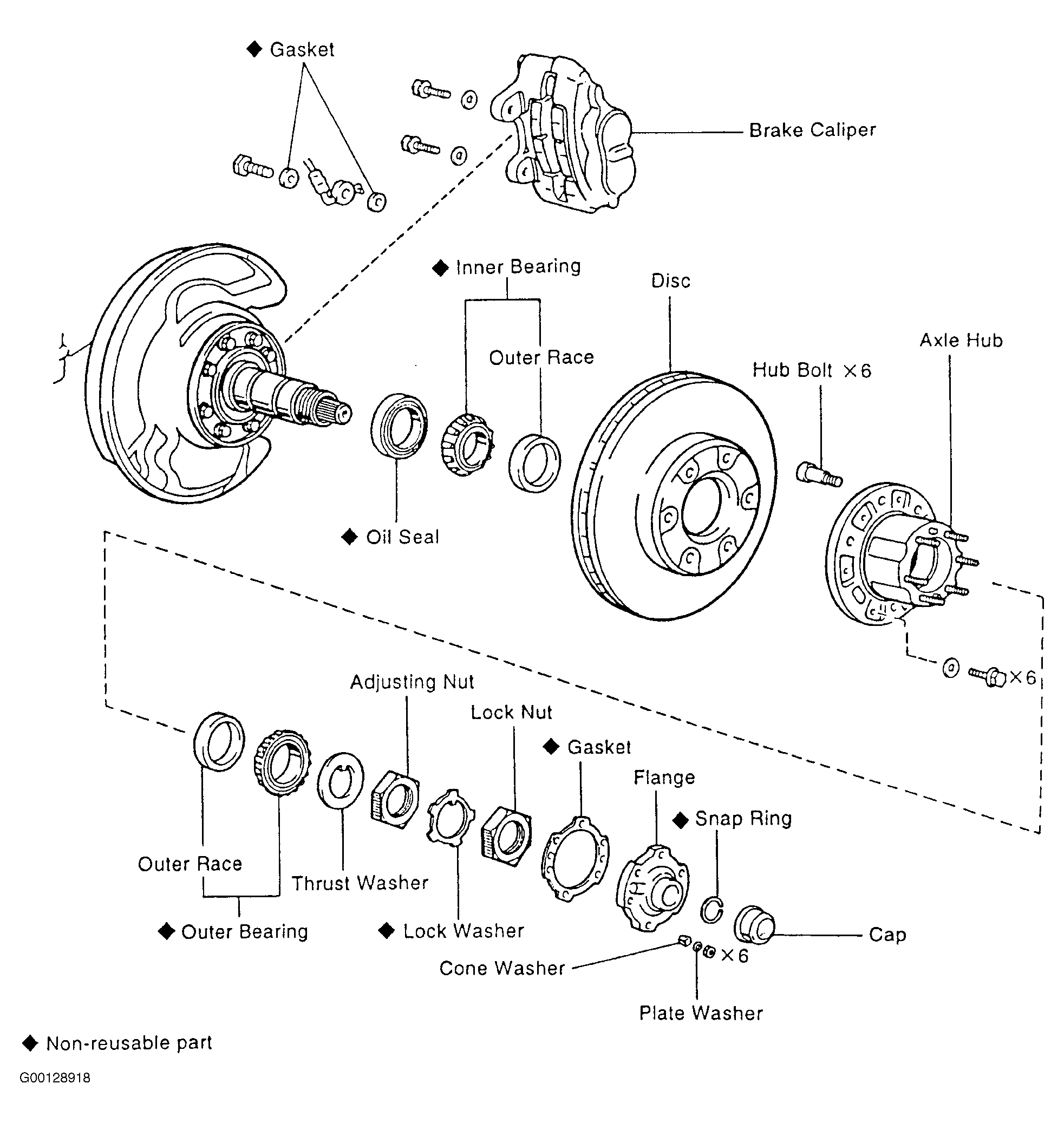

Fig 1: Exploded View Of Front Axle Hub & Rotor Assembly
G00128918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

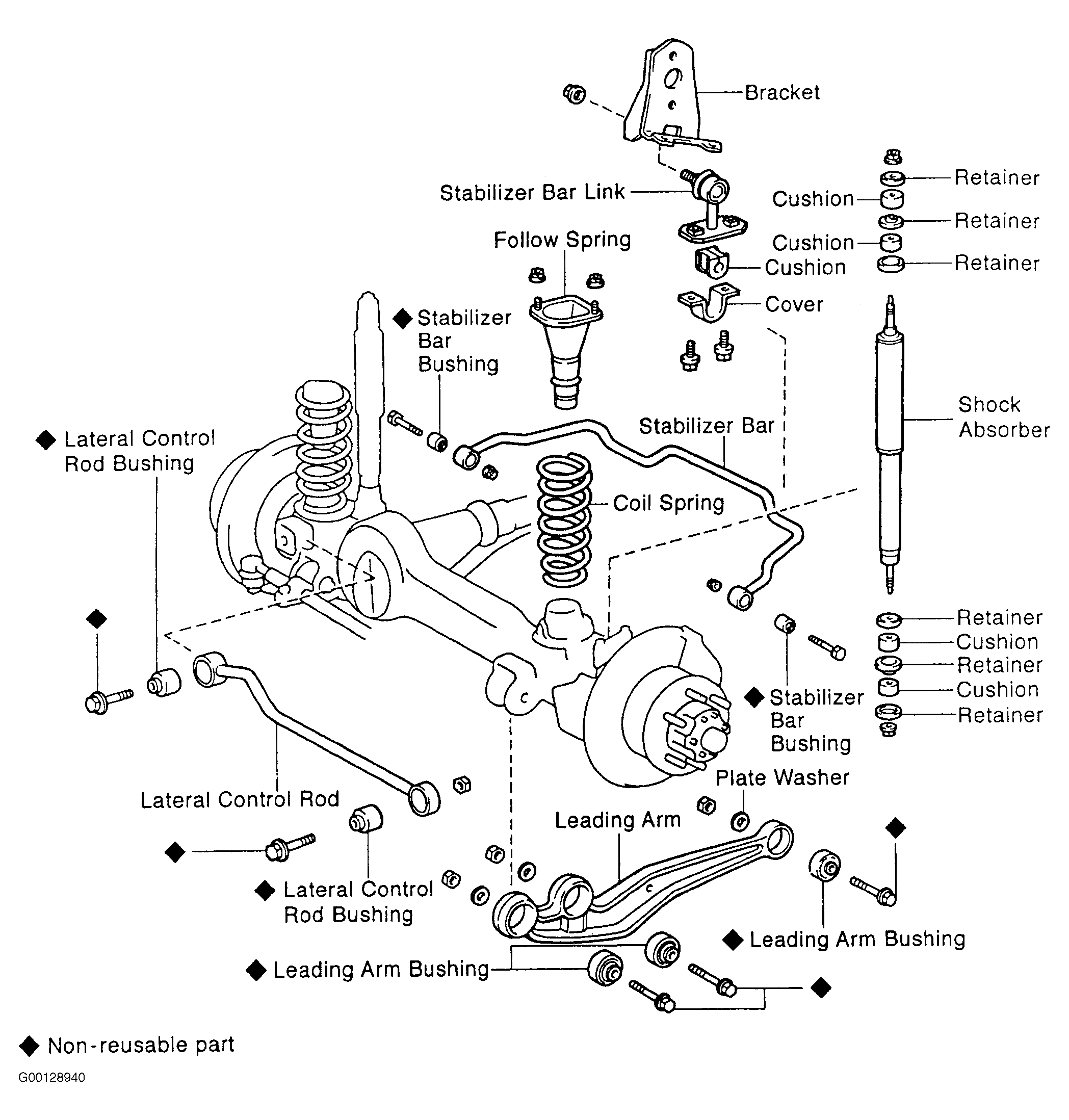

Fig 2: Exploded View Of Front Suspension
G00128940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
