Lateral Control Rod Bushing: Installation

NOTE: Do not use a lubricant when pressing in the bushing.

Using Special Tool 09710-22042 (09710-02051, 09710-02071) and a press, install the bushing from the lateral control rod. See Fig 1.

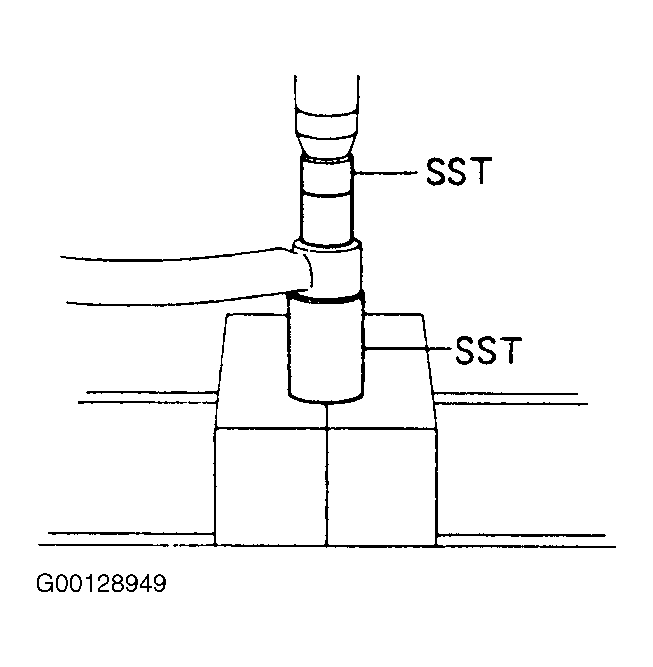

Fig 1: Installing Lateral Control Rod Bushing
G00128949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
