Steering Column: Notes

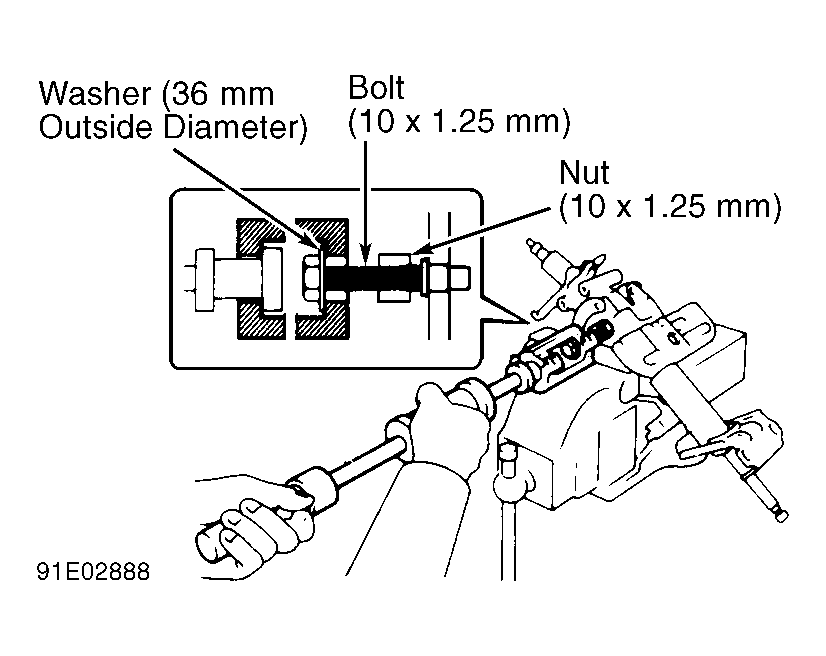

Fig 1: Removing Steering Column Bolts

G91E02888

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

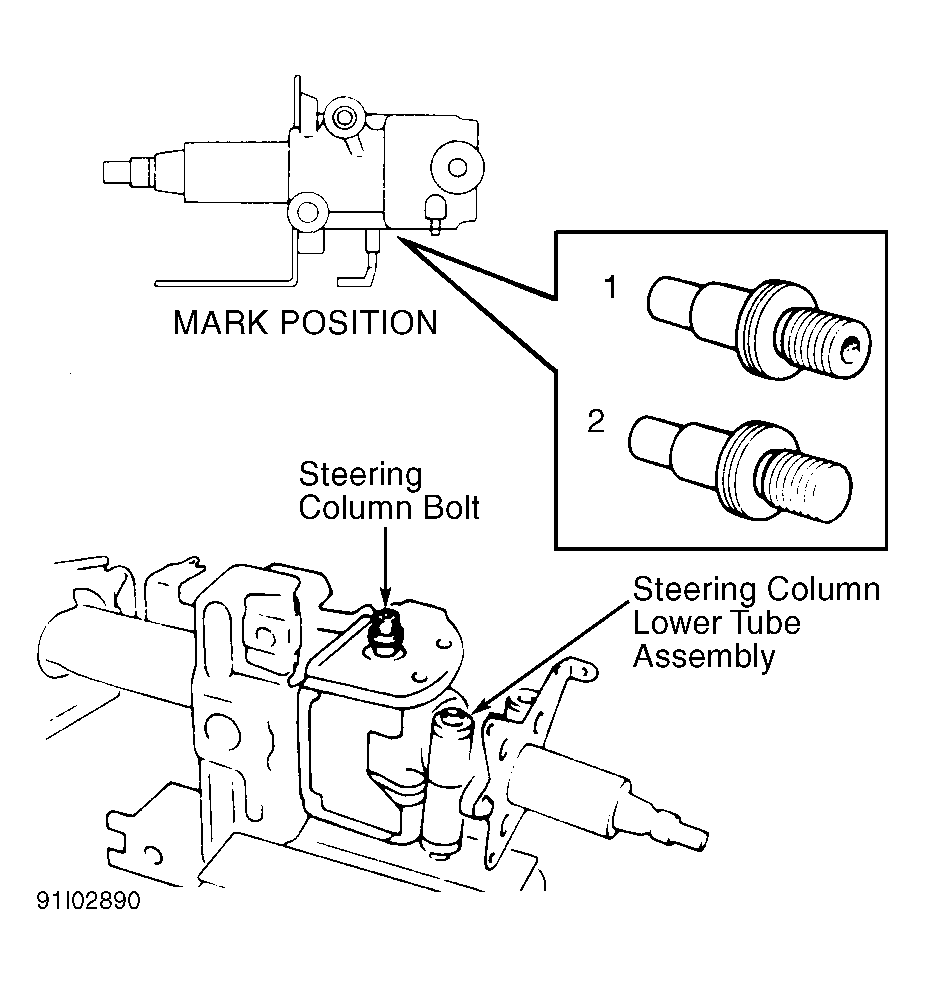

Fig 2: Selecting Steering Bolt

G91I02890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

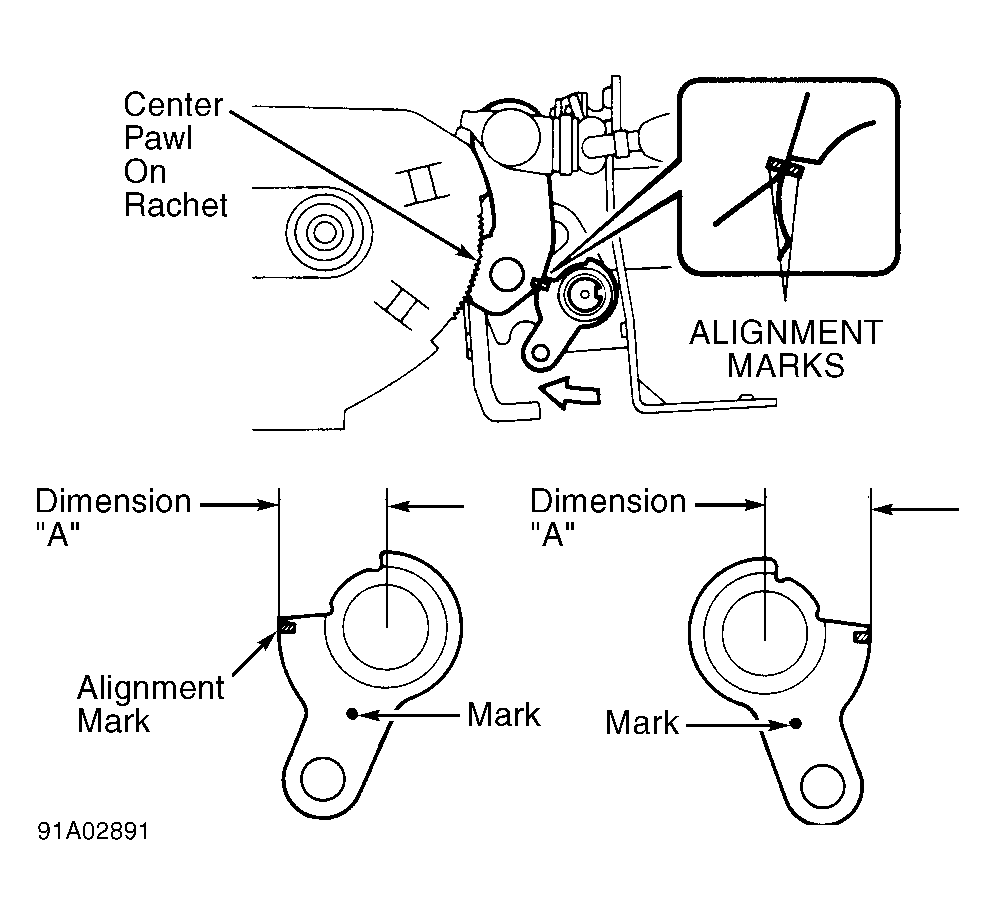

Fig 3: Assembling Tilt Pawl & Stoppers

G91A02891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TILT PAWL STOPPER SELECTION

Tilt Lever Side (Mark)	Tilt Sub-Lever Side (Mark)	Dimension "A" In. (mm)
1	A	.498-.502 (12.65-12.75)
2	B	.494-.498 (12.55-12.65)
3	C	.490-.494 (12.45-12.55)
4	D	.486-.490 (12.35-12.45)
5	E	.482-.486 (12.25-12.35)
