Anti-Lock Brake System: Description

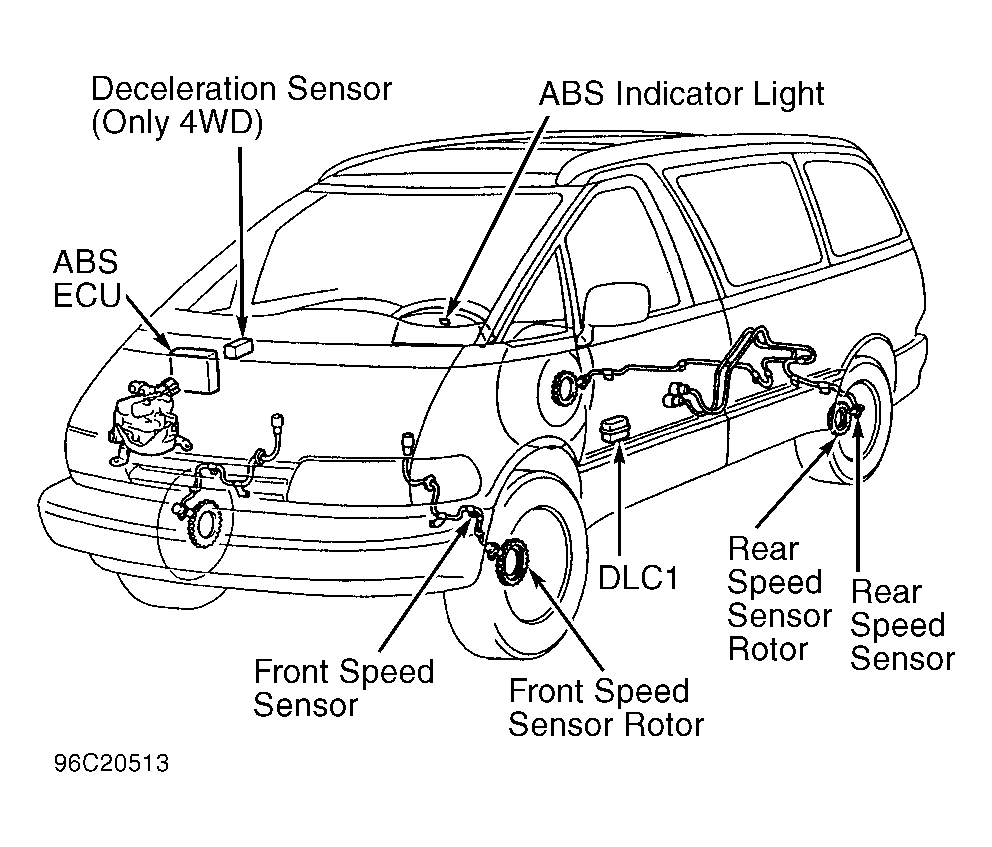

Anti-Lock Brake System (ABS) consists of deceleration sensor (4WD), ABS actuator, ABS Electronic Control Unit (ABS ECU), ABS indicator light, and 4 wheel speed sensors. See Figure.

NOTE: For more information on brake system, see BRAKE SYSTEM - DISC & DRUM article in BRAKES section.
