DTC 44: Ne Signal Circuit

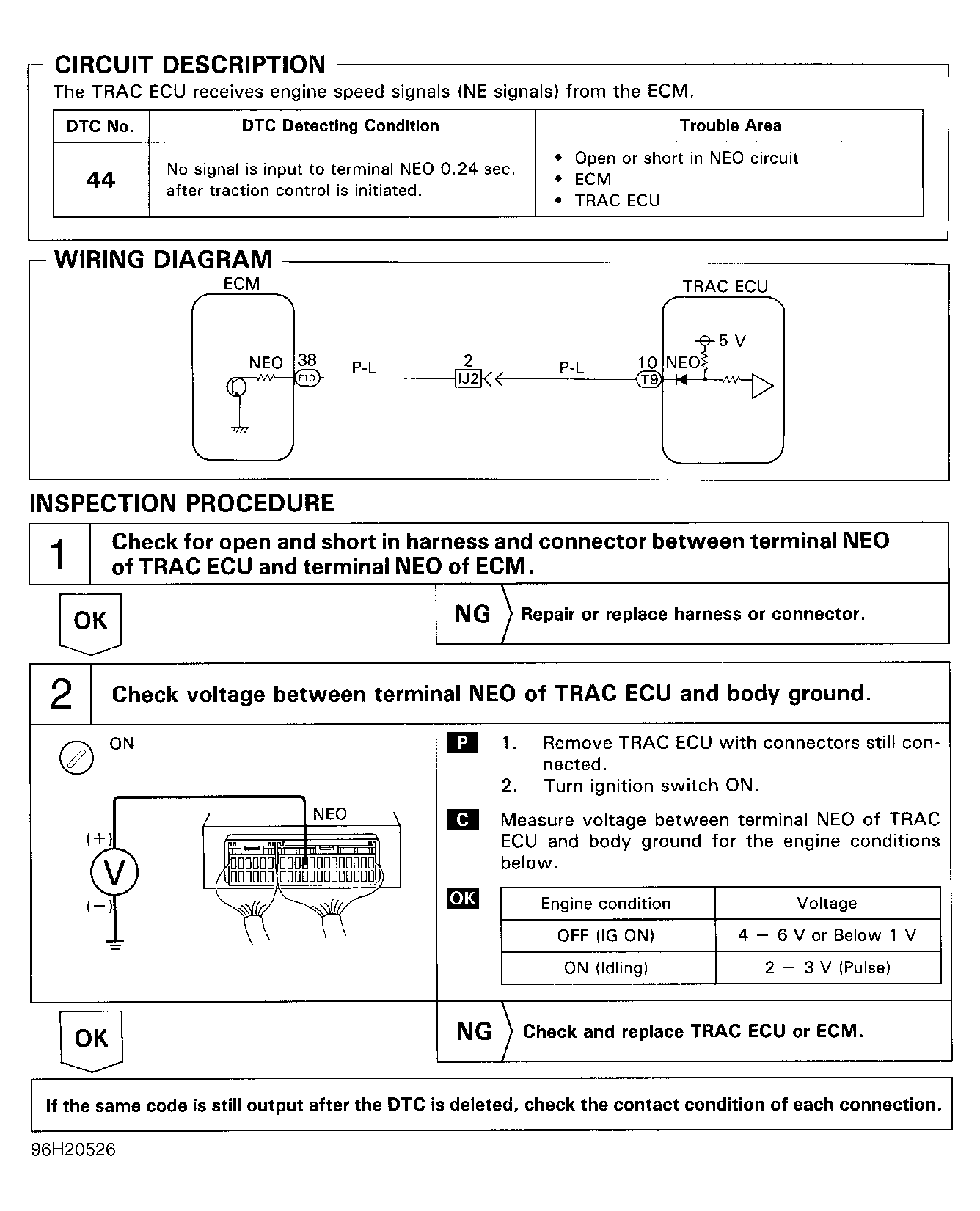

Fig 1: DTC 44 - NE SIGNAL CIRCUIT CHART
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
