Rear Suspension

  1. Measure rear camber. See CAMBER ADJUSTMENT  under WHEEL ALIGNMENT PROCEDURES. Bounce both ends of vehicle several times to settle suspension.

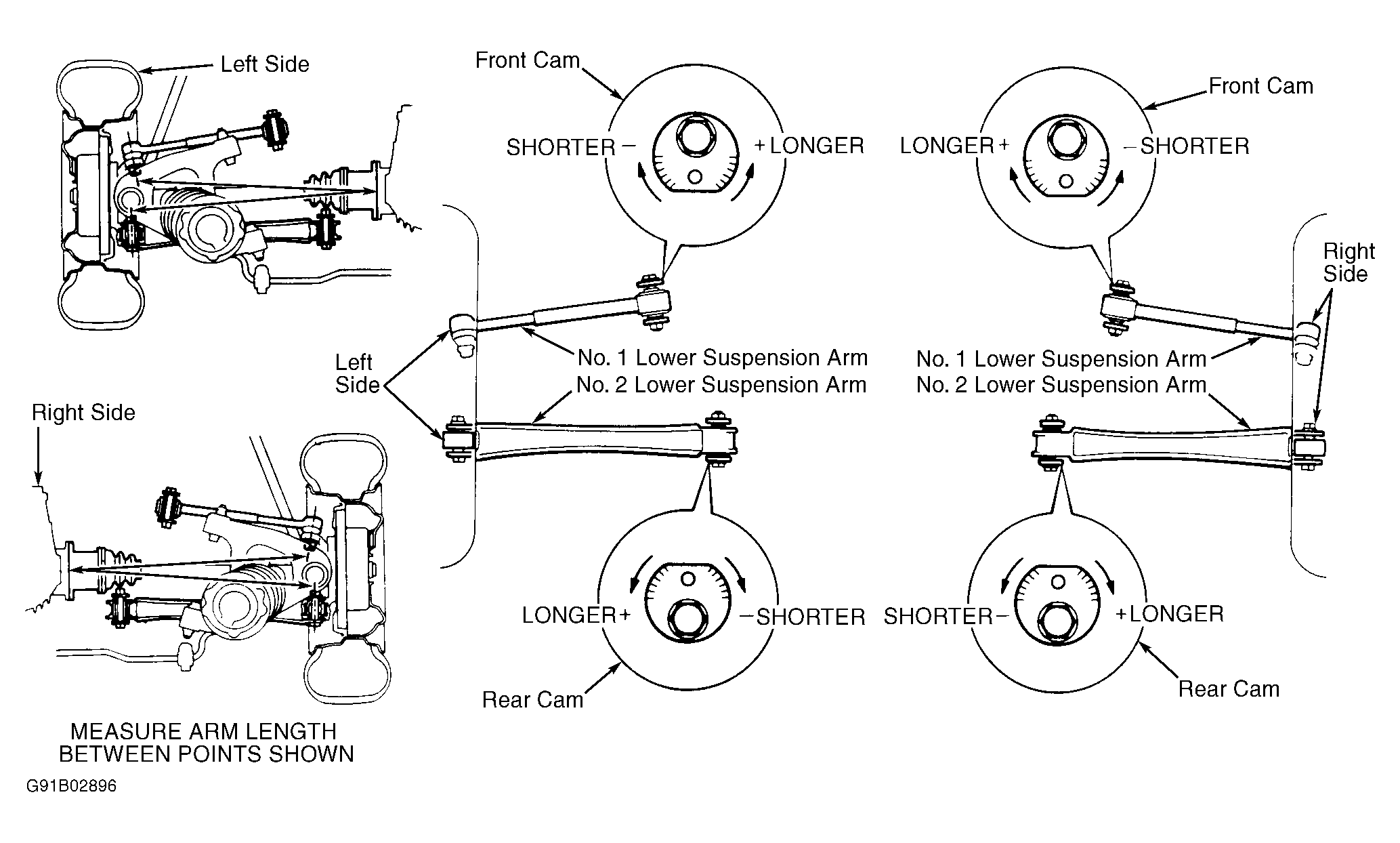

  2. Measure toe-in. If toe-in is not within specification, adjust by rotating adjuster cams. See WHEEL ALIGNMENT SPECIFICATIONS . See Figure.
