Throttle Body: Installation

  1. To install, reverse removal procedure using NEW gasket. Ensure gasket is installed with protrusion facing upward. See Fig 1.
  2. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS  table. Fill cooling system.

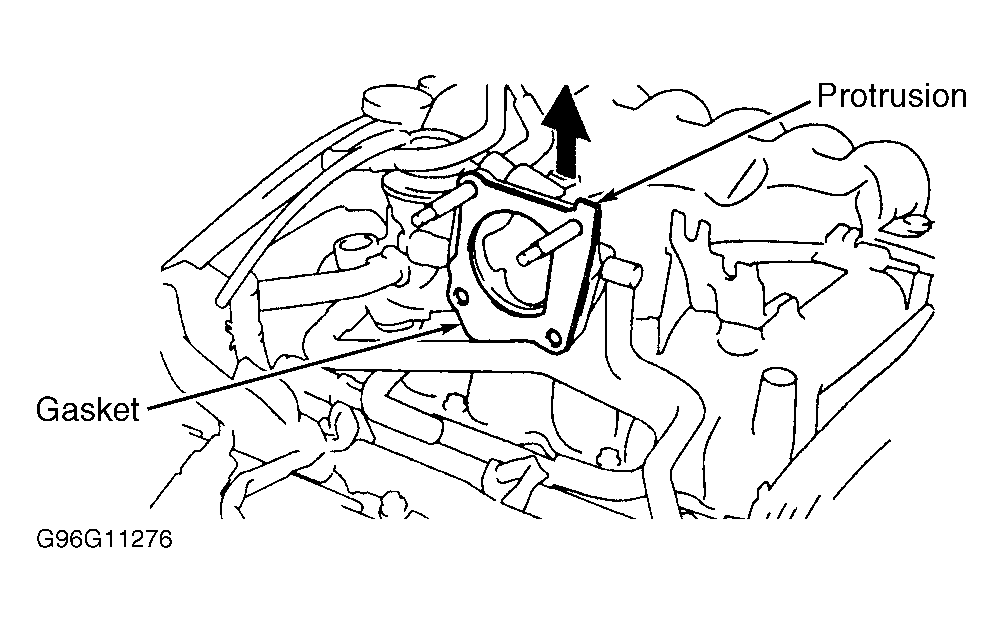

Fig 1: Installing Gasket For Throttle Body
G96G11276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
