Toyota
›
1997
›
4Runner Limited, RWD
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Circuit Tests
›
Stoplight Switch Circuit
Stoplight Switch Circuit

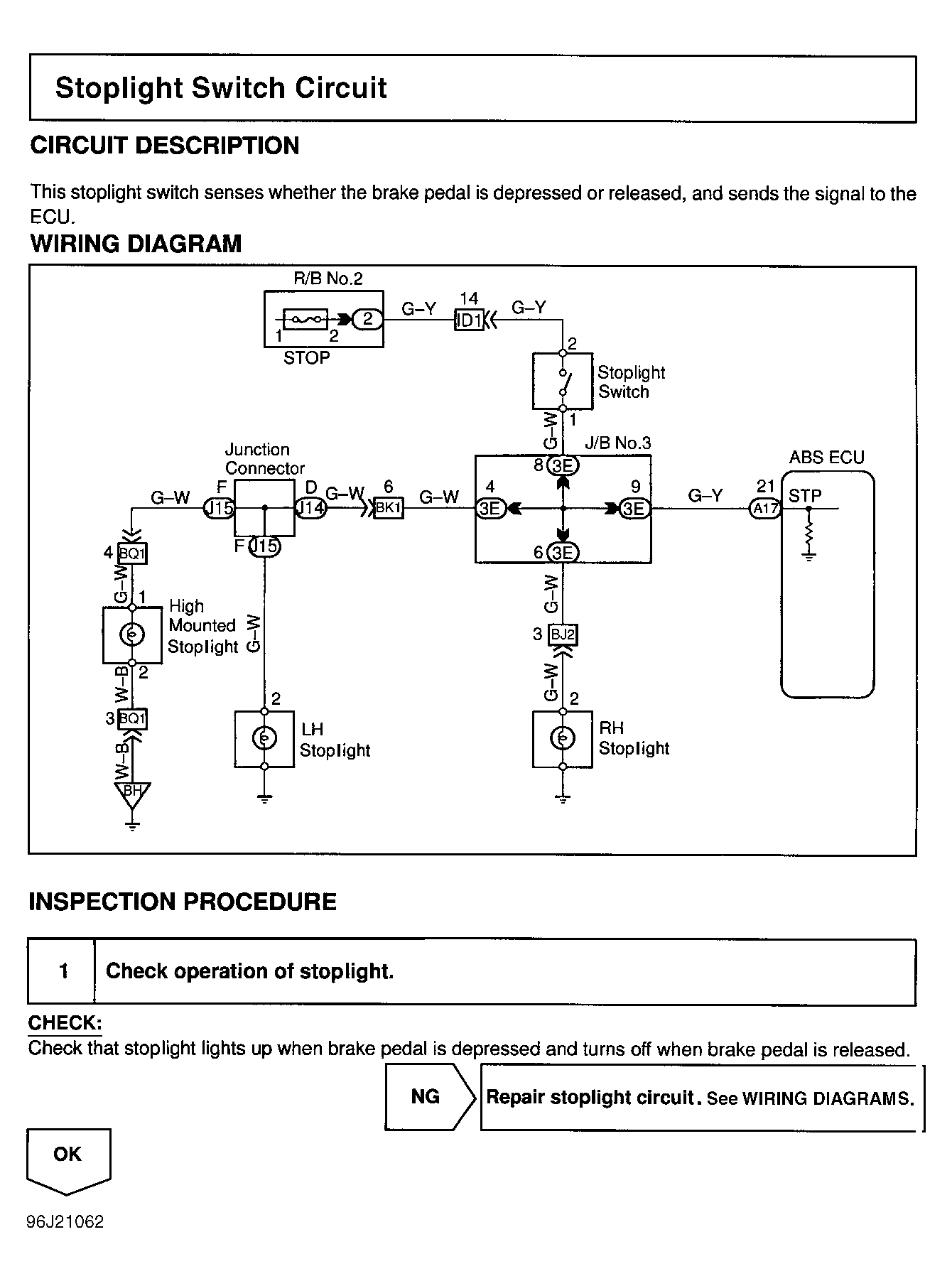

Fig 1: Stoplight Switch Circuit (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

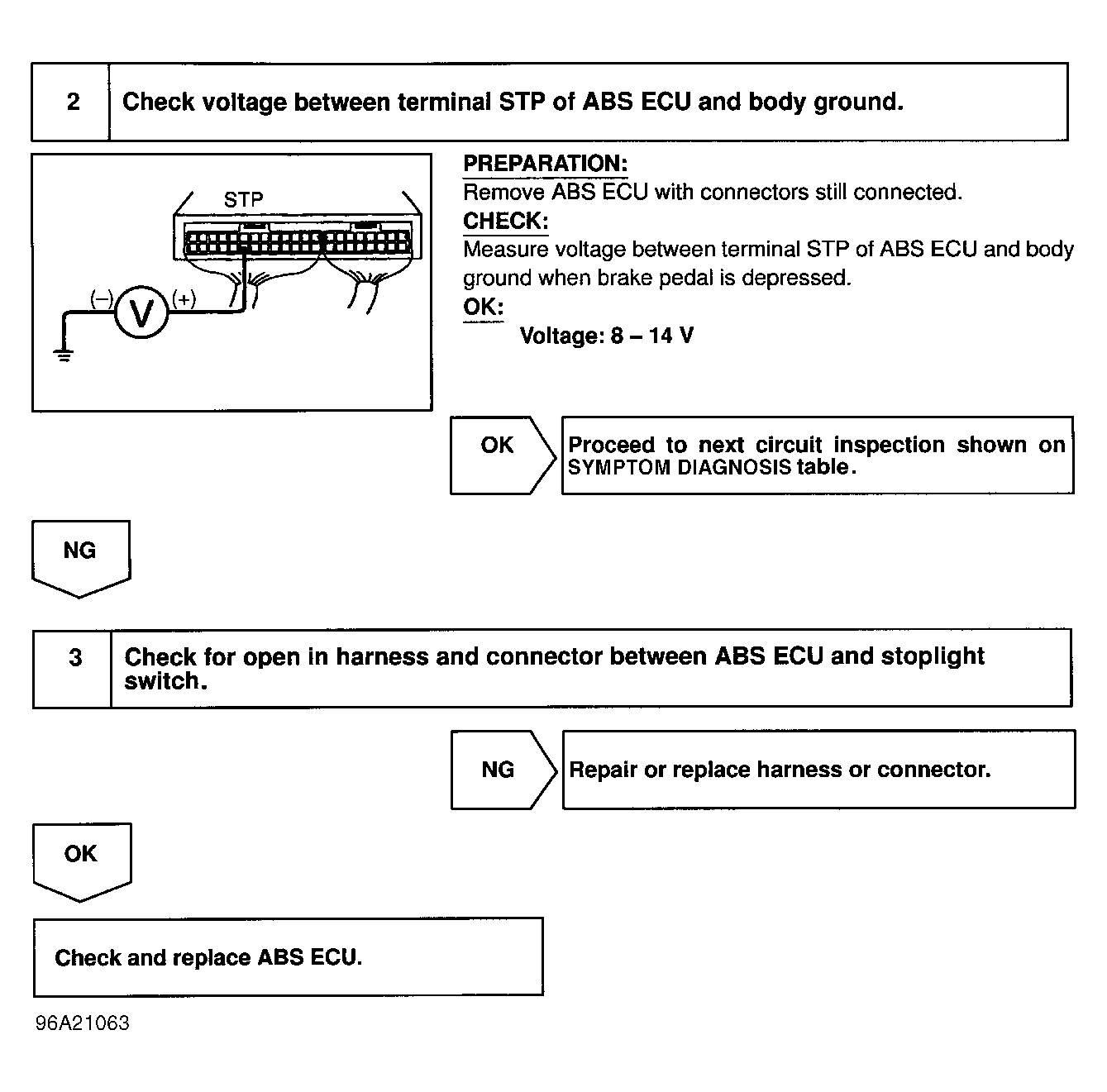

Fig 2: Stoplight Switch Circuit (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
