Test 5: Key Unlock Warning Switch Circuit

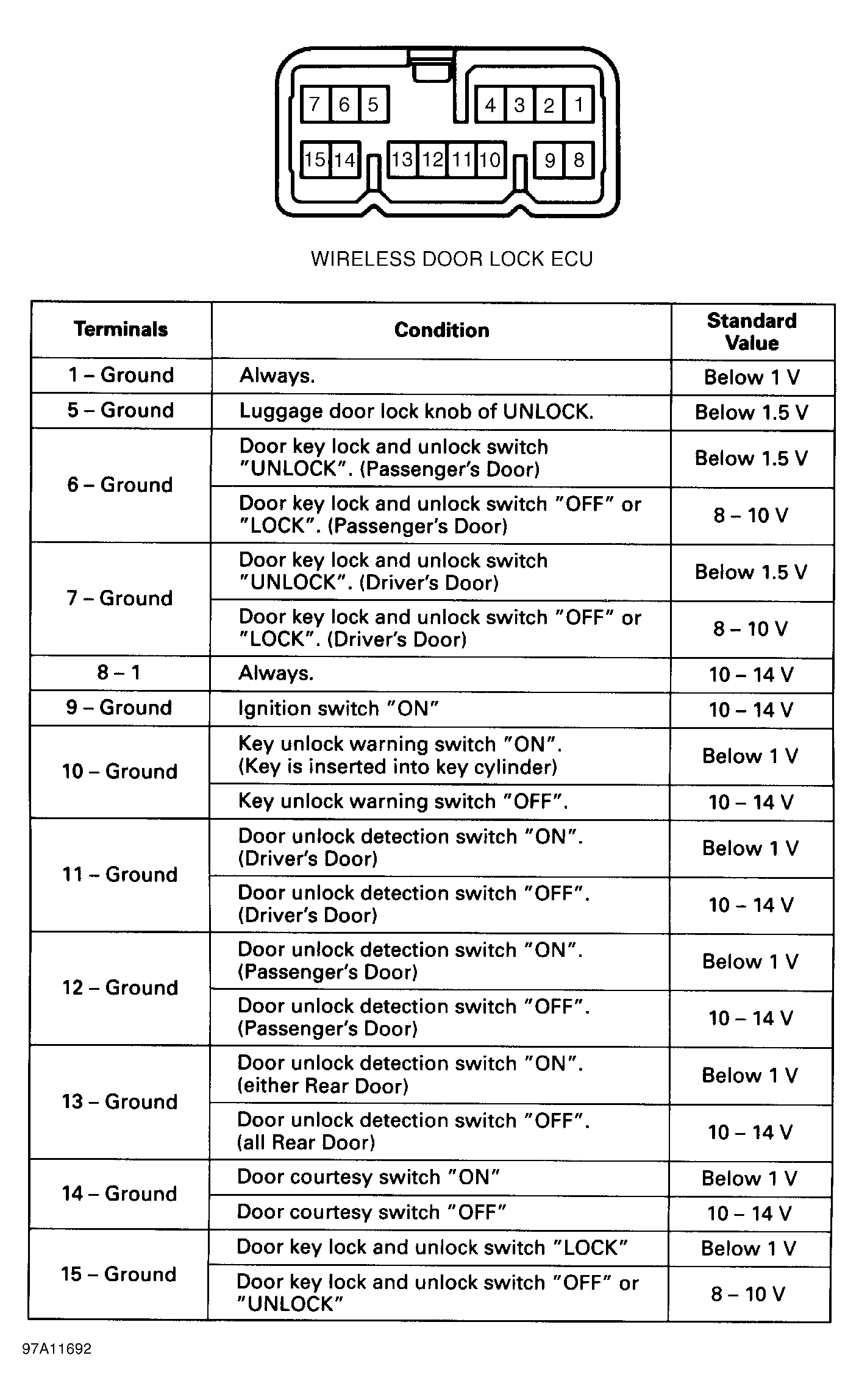

With ignition switch in OFF position, remove luggage compartment left side panel. Remove wireless door lock ECU. Measure voltage between ground and ECU connector terminal No. 10 (Red/Yellow wire). See Figure. Battery voltage should exist. If battery voltage does not exist, repair Red/Yellow wire. If battery voltage exists, proceed to next test given in TROUBLE SHOOTING SYMPTOMS  table.
