Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

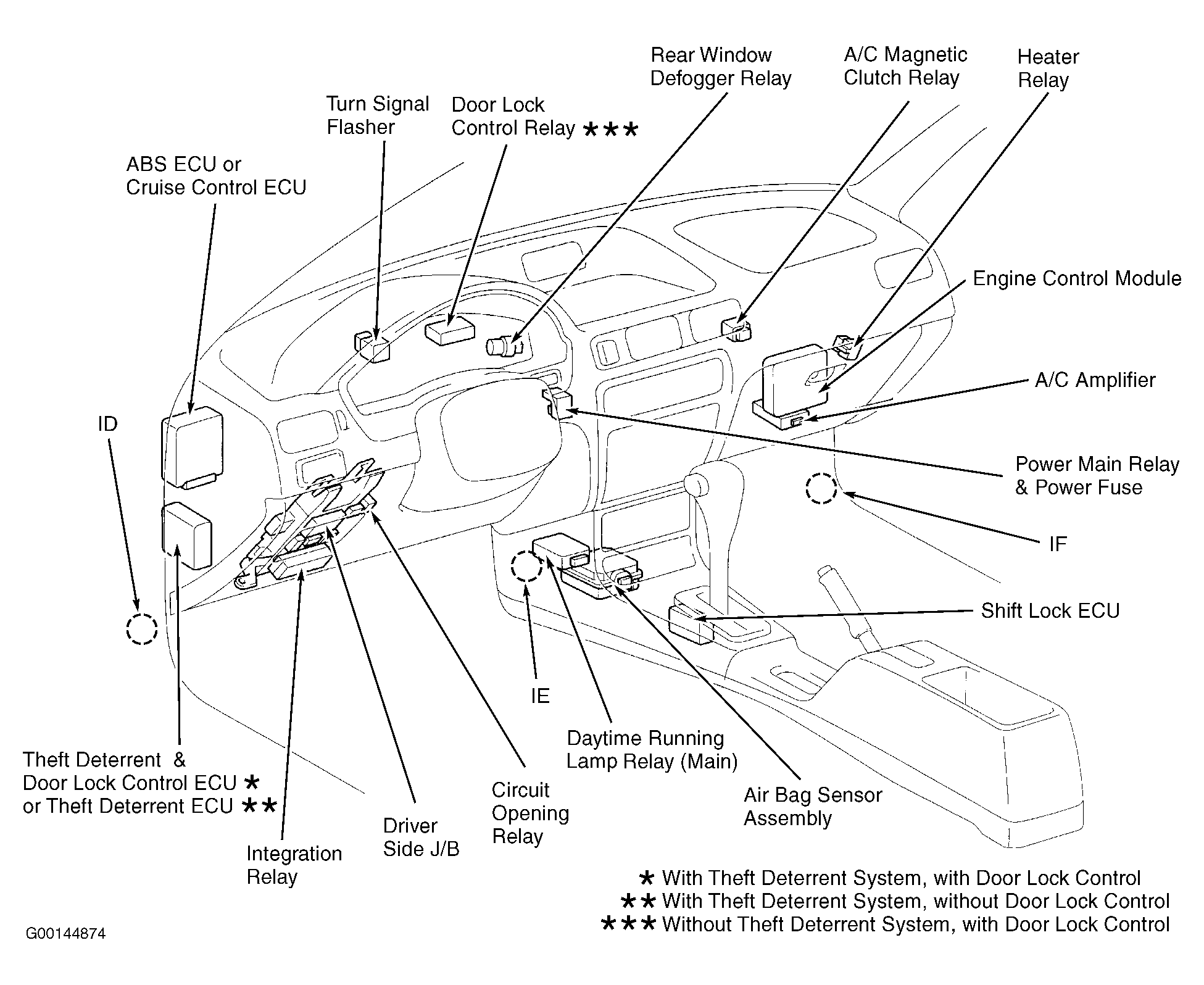

| Driver Side J/B | Behind dash, left of steering column. See Figure. |
| Engine Room R/B | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 5 (Canada) | On left side of engine compartment. See Figure. |
| Fusible Link Block | On left side of engine compartment, clipped on side of engine room R/B. See Figure. |
| Power Fuse | Behind dash, right of steering column. See Figure. |
