Repair and Diagnosis
›
Maintenance
›
Procedures
›
Maintenance Information
›
Service Point Locations
Service Point Locations

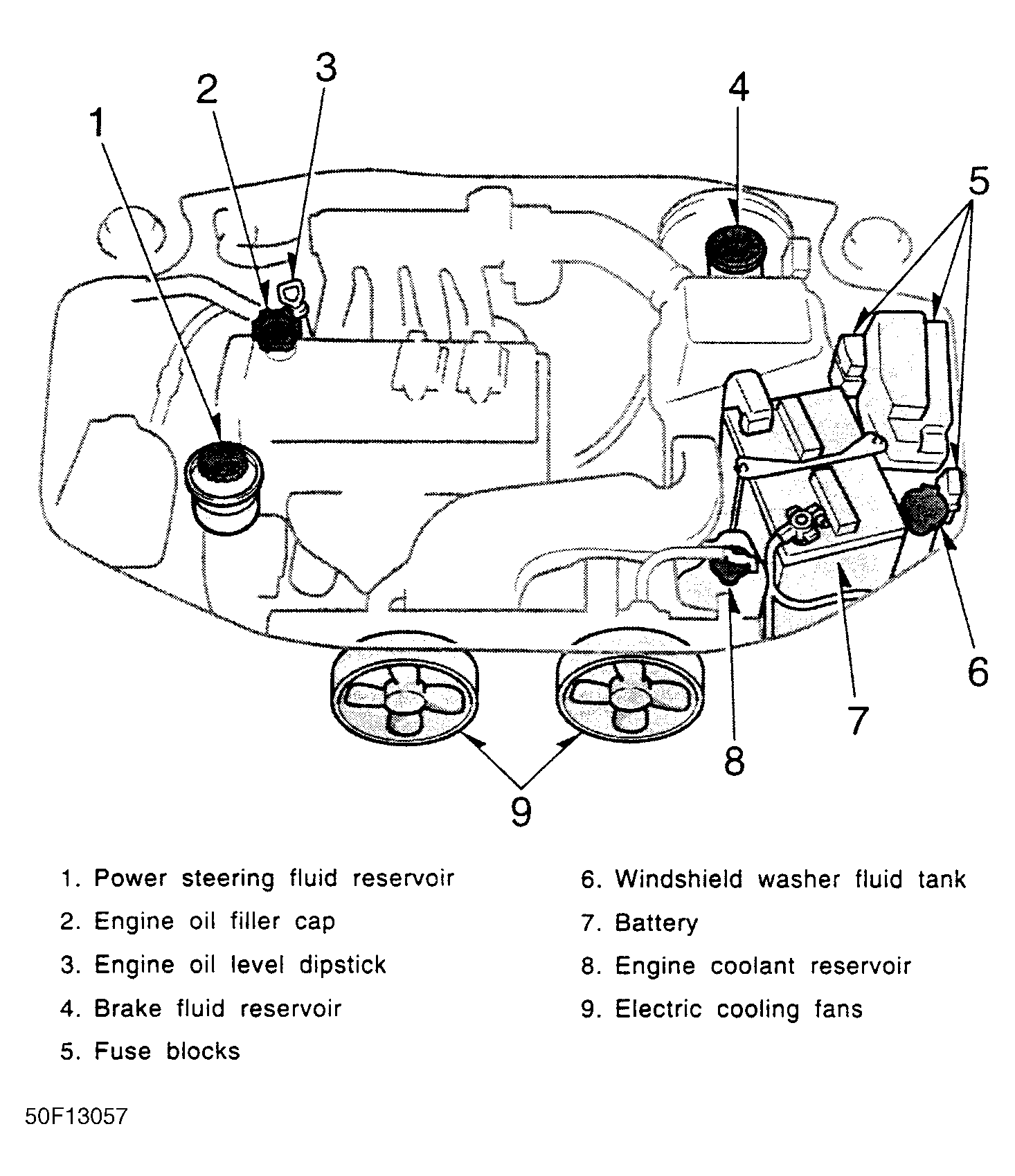

Fig 1: Service Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

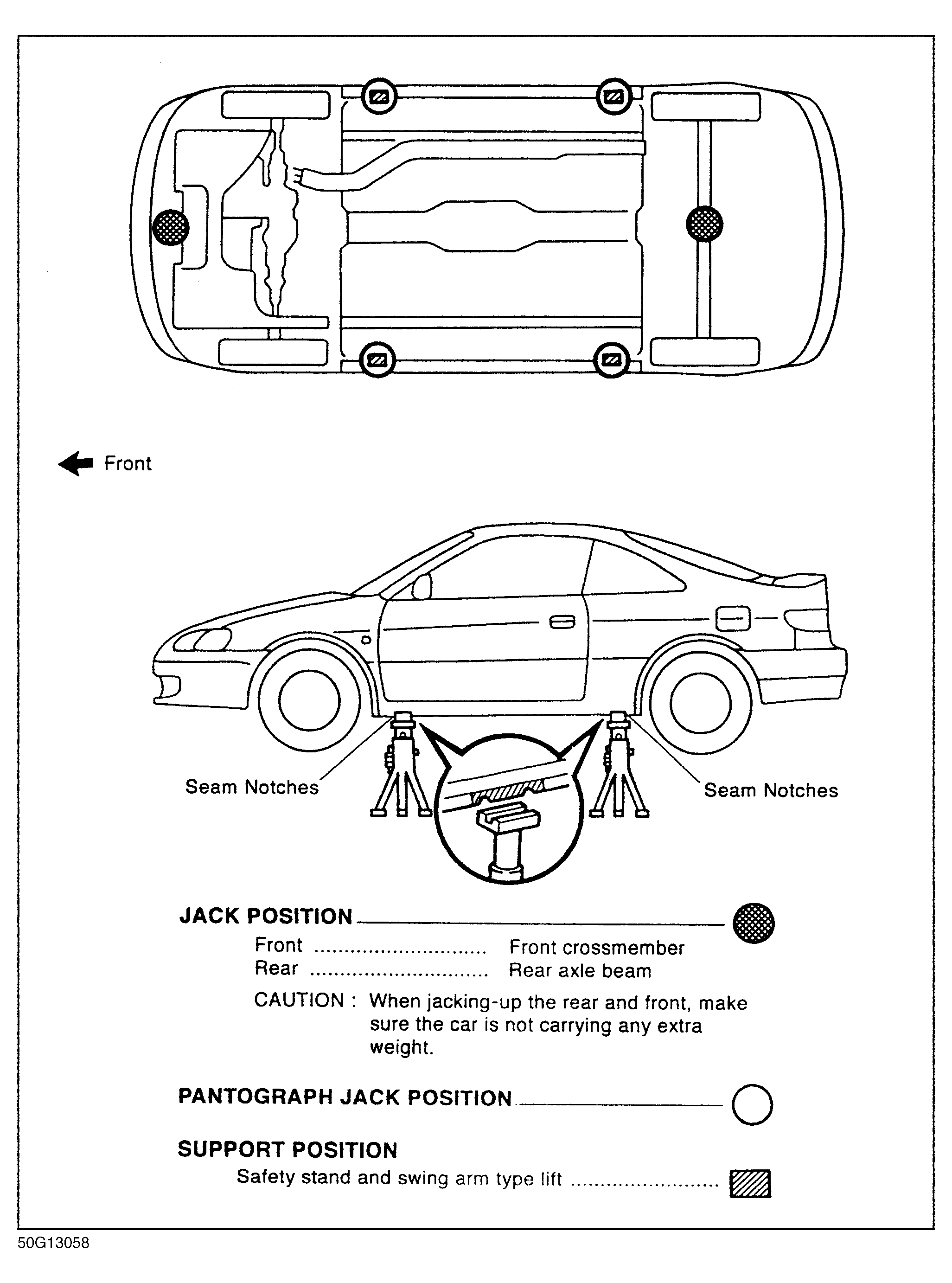

Fig 2: Lift Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
