Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |
| A/C Fuse (Rear) |

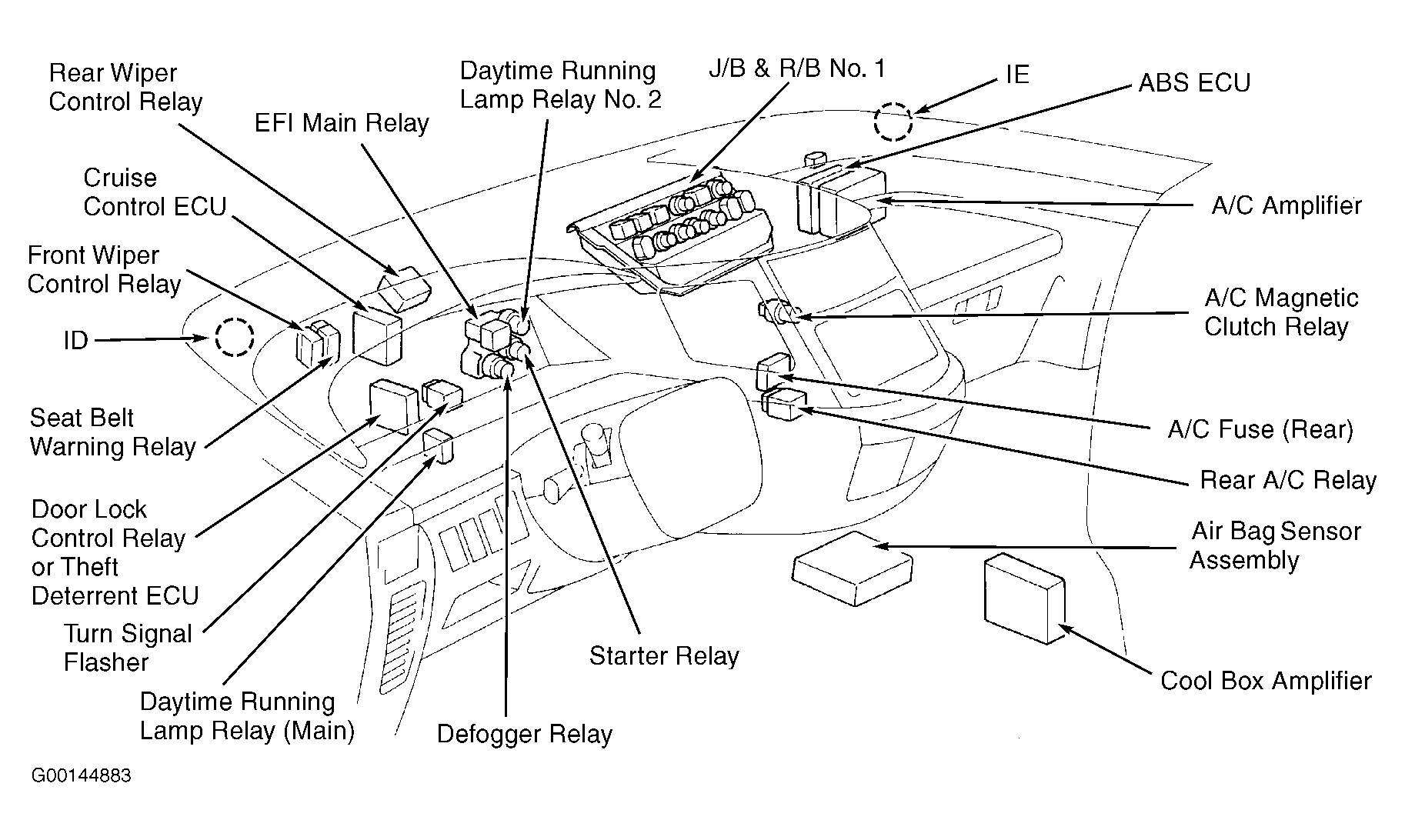

Behind center of dash. See Figure. |
| Fuse Box |
On right side of front compartment. |
| Heater CB |
On J/B & R/B No. 1. |
| J/B & R/B No. 1 |
Behind center of dash. See Figure. |
| J/B No. 3 |

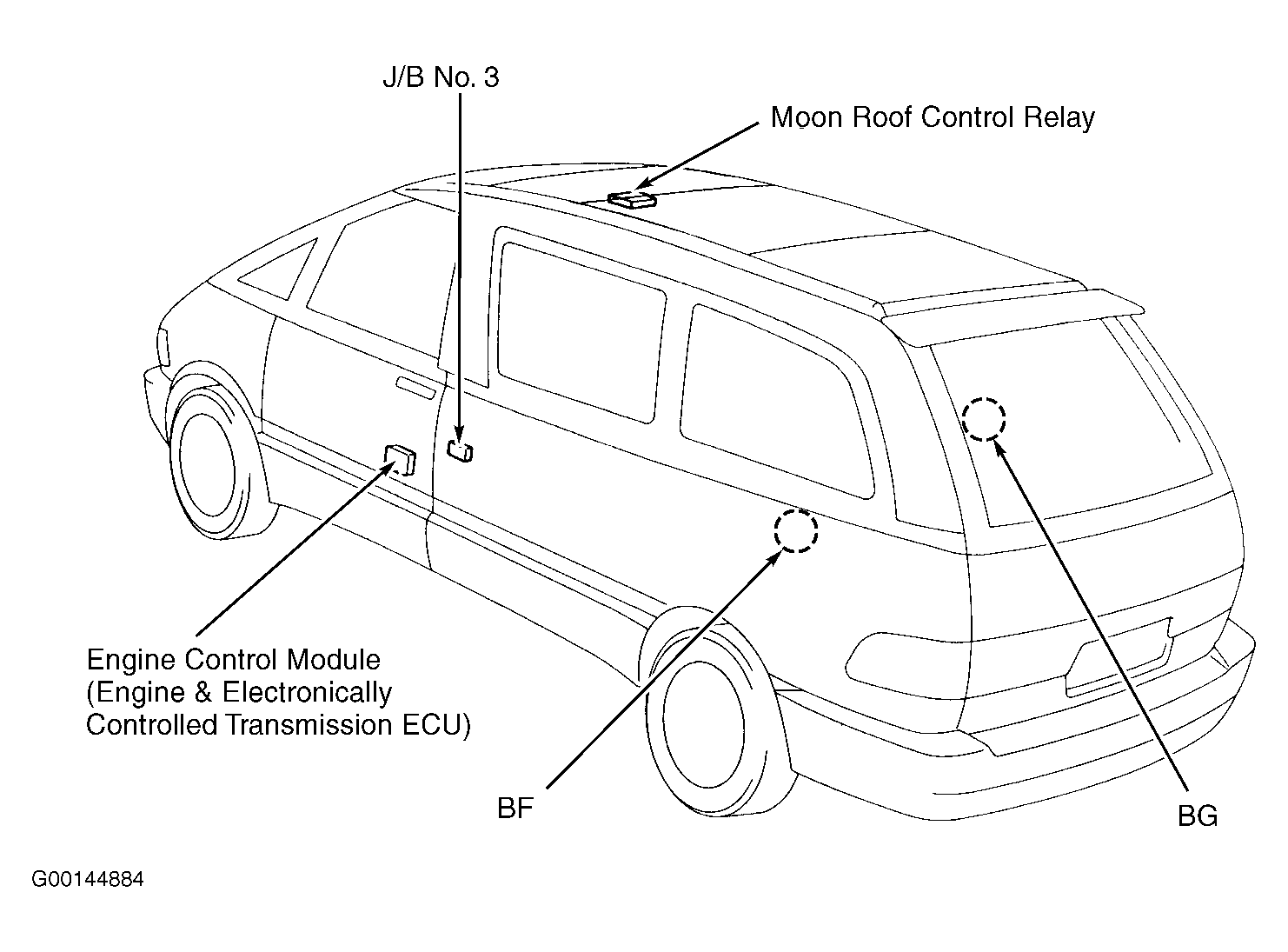

Below driver's seat. See Figure. |
