Maintenance Information
›
Service Point Locations
Service Point Locations

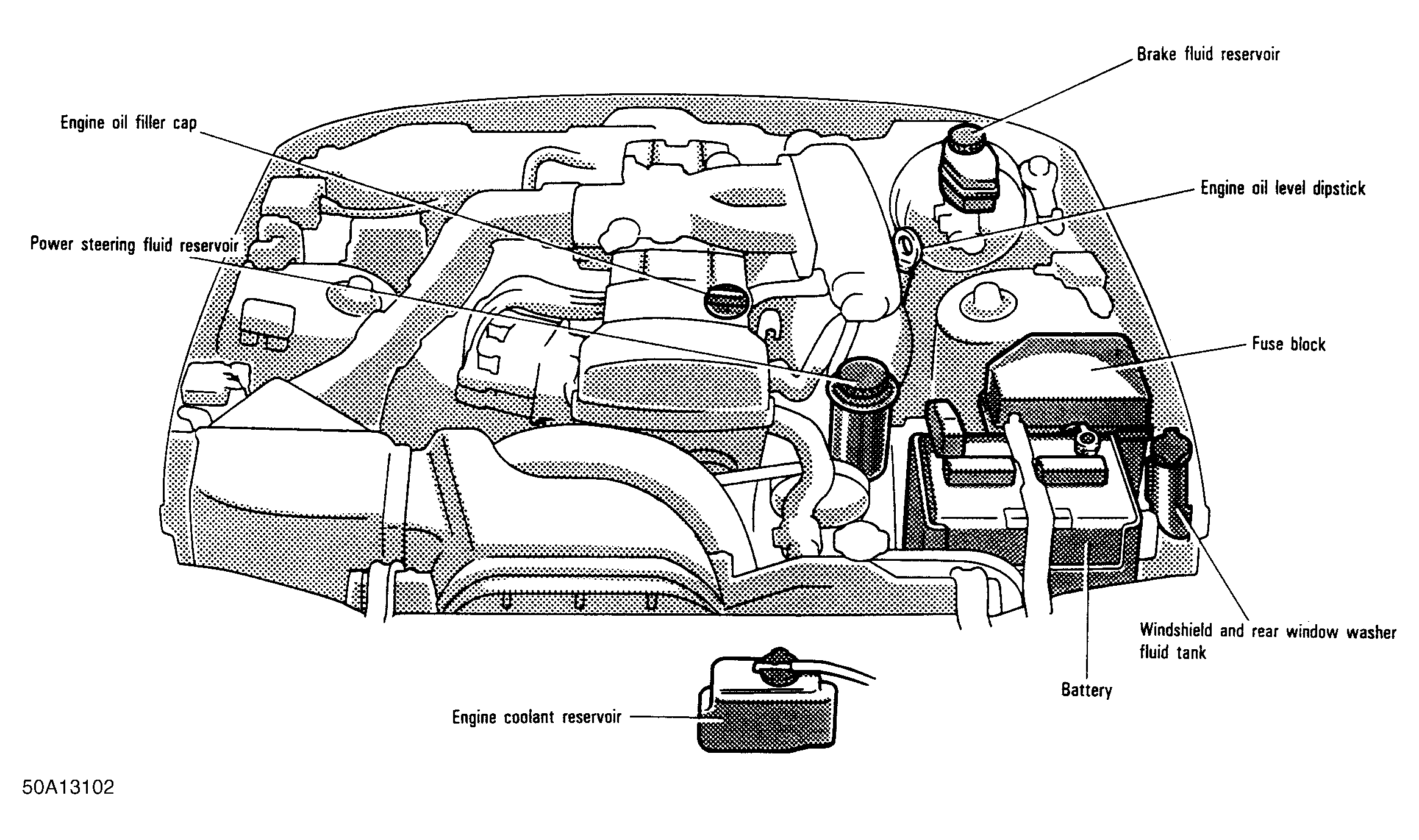

Fig 1: Service Point Locations (2JZ-GE Non-Turbo Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

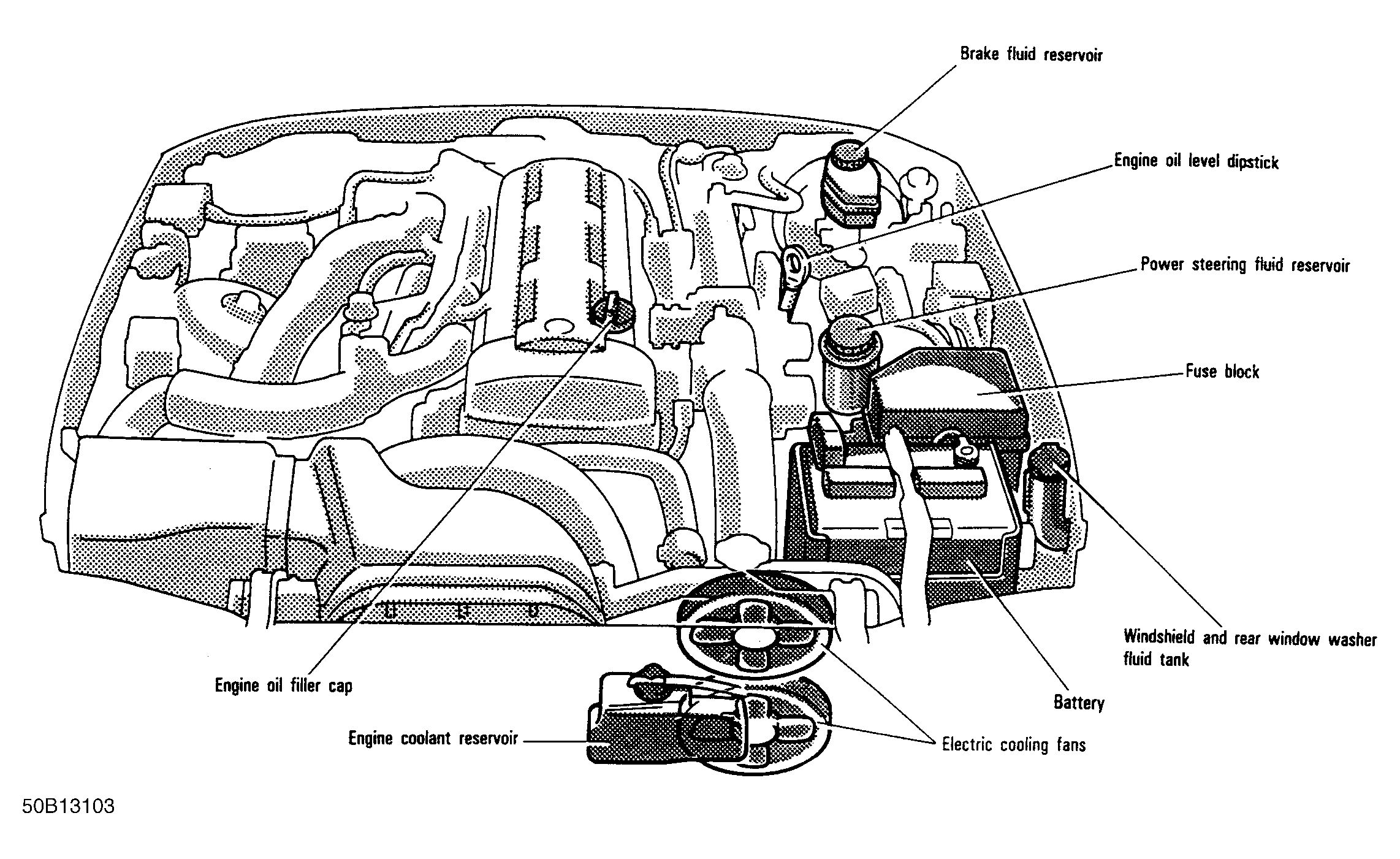

Fig 2: Service Point Locations (2JZ-GTE Turbo Engine)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

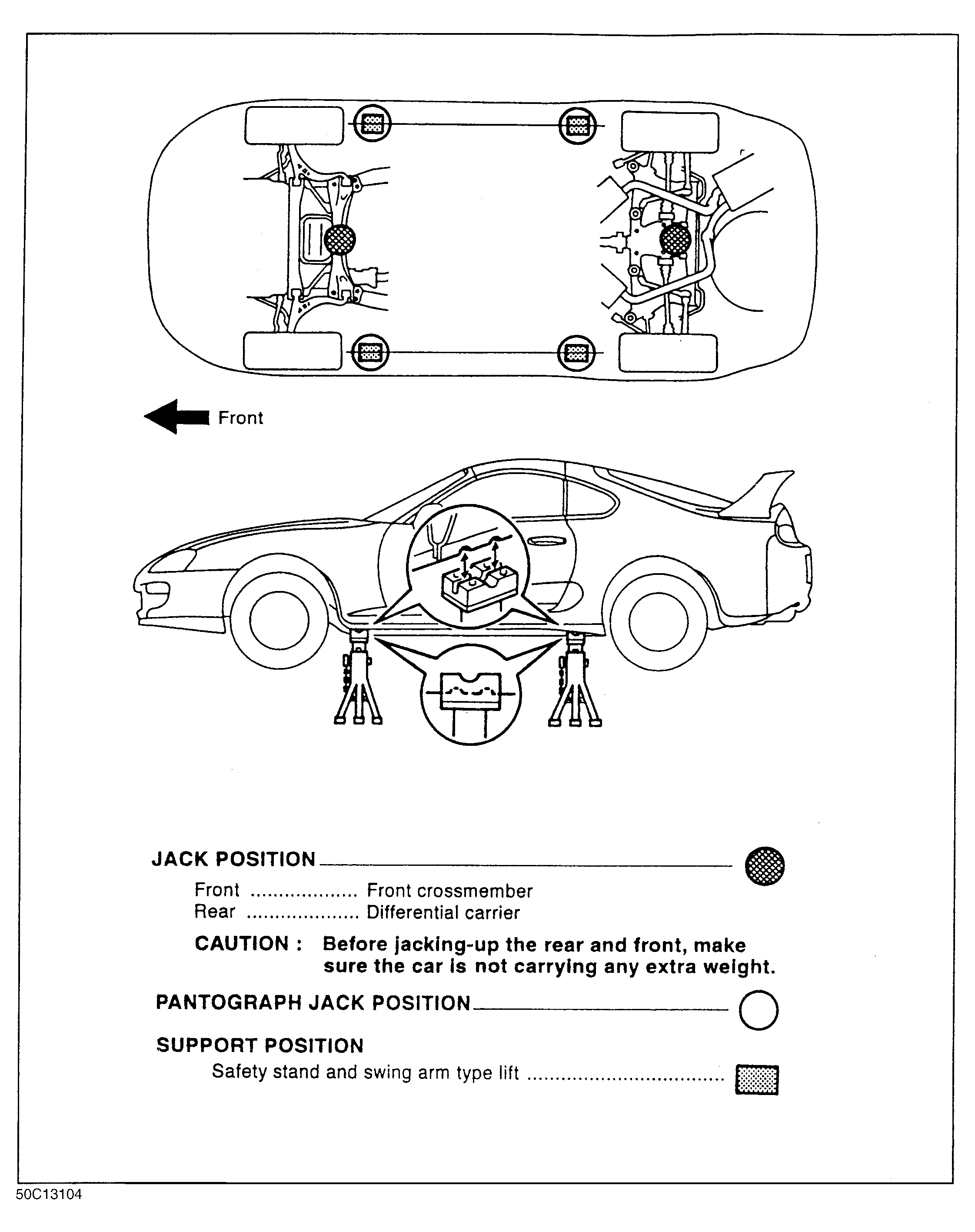

Fig 3: Lift Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
