Pump Motor Relay Circuit

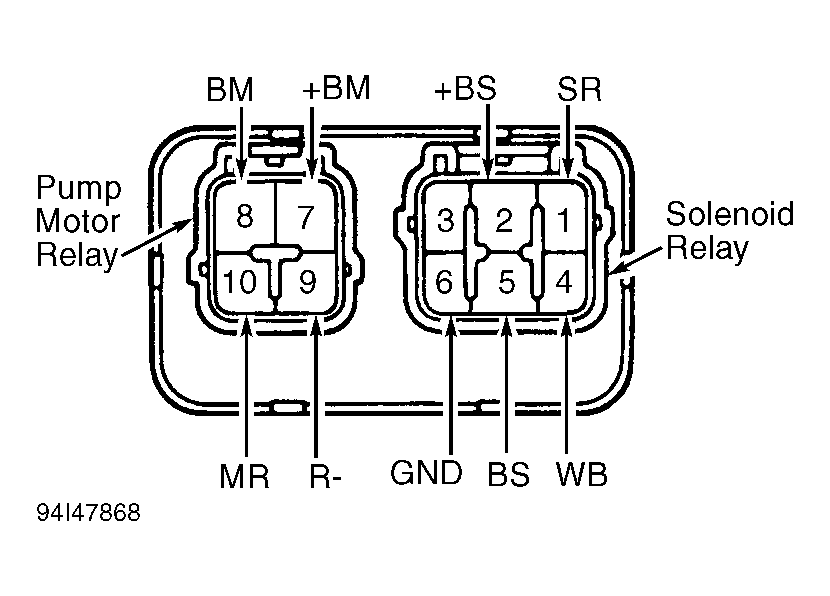

  1. Remove ABS control relay. See Figure. Using DVOM, ensure continuity is present between relay terminals No. 9 and 10. See Figure. Ensure continuity is not present between relay terminals No. 7 and 8. Replace relay if continuity is not as specified.
  2. Using fused jumper wires, connect positive battery terminal to relay terminal No. 10, and ground relay terminal No. 9. See Figure. Ensure continuity is present between relay terminals No. 7 and 8. Replace relay if continuity is not as specified.
