Fuse Panel Identification: Notes

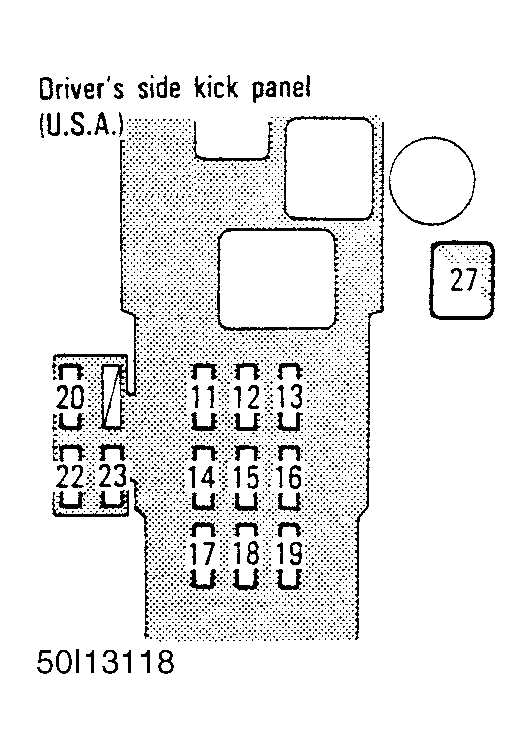

Fig 1: Driver's Side Kick Panel Fuse Panel Identification (USA)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

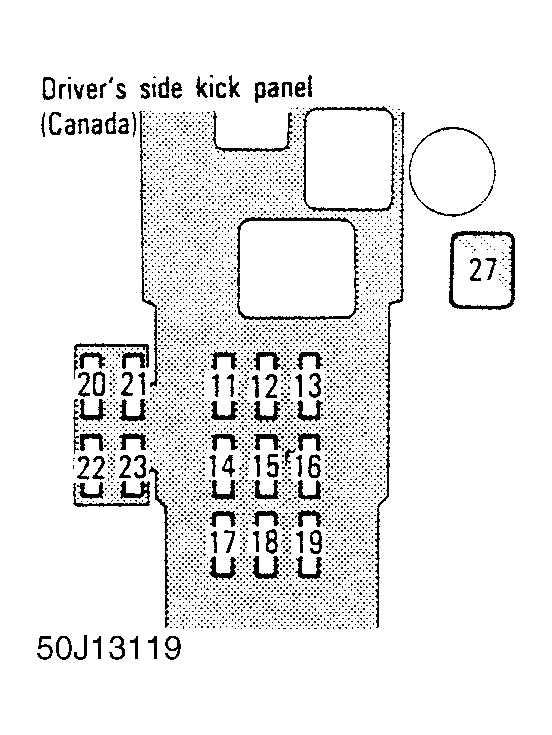

Fig 2: Driver's Side Kick Panel Fuse Panel Identification (Canada)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
