Component Tests

For component testing, see appropriate test under CIRCUIT TESTS or DIAGNOSTIC TESTS . ABS ECU values can be measured using Toyota Hand-Held Tester and Break-Out Box. ABS circuits and harness can also be tested by backprobing ABS ECU connectors and comparing measured voltages with ABS ECU standard values chart. See Fig 1-10.

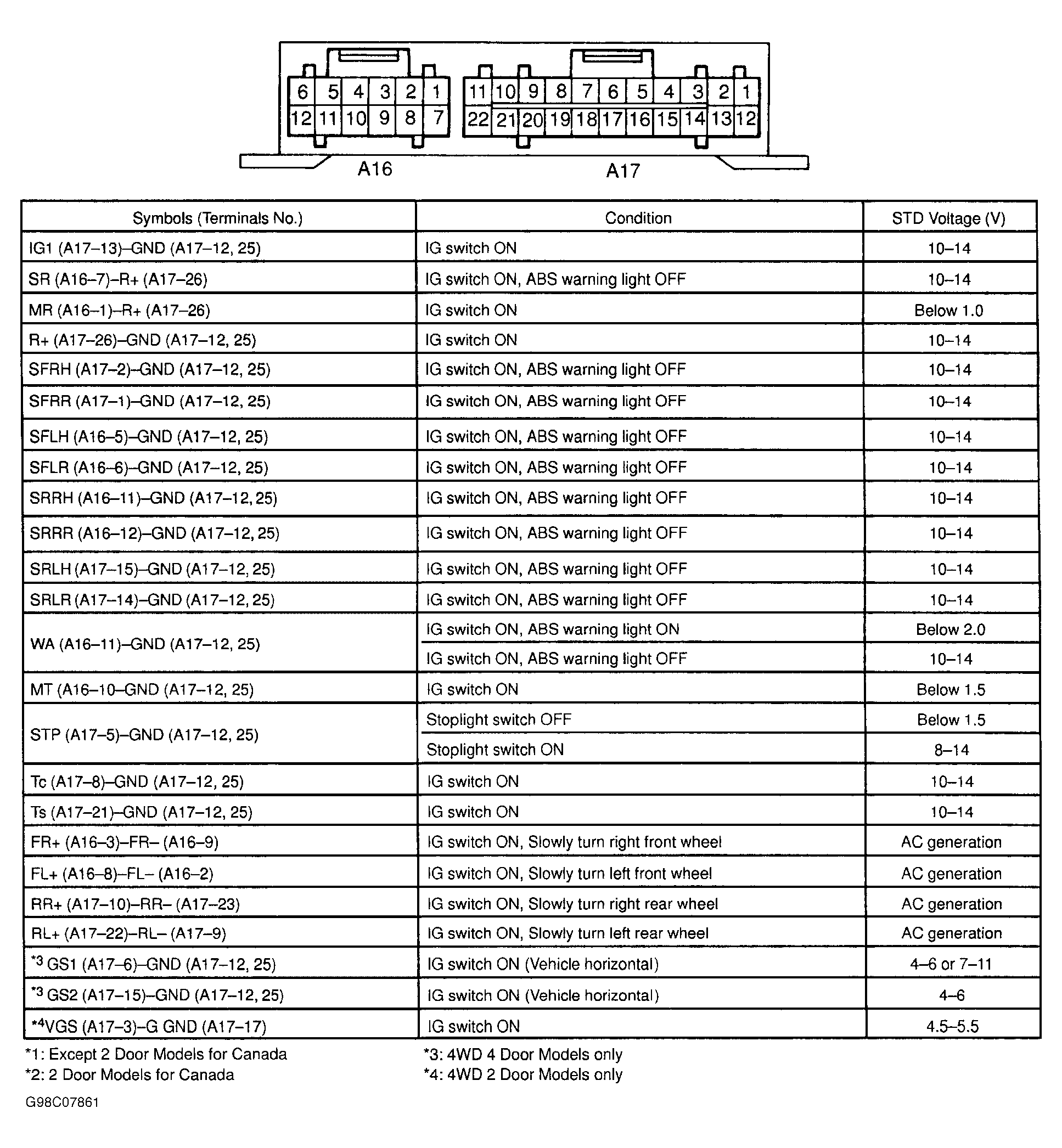

Fig 1: ABS ECU Standard Values Chart (1997 2WD & 4WD 4 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

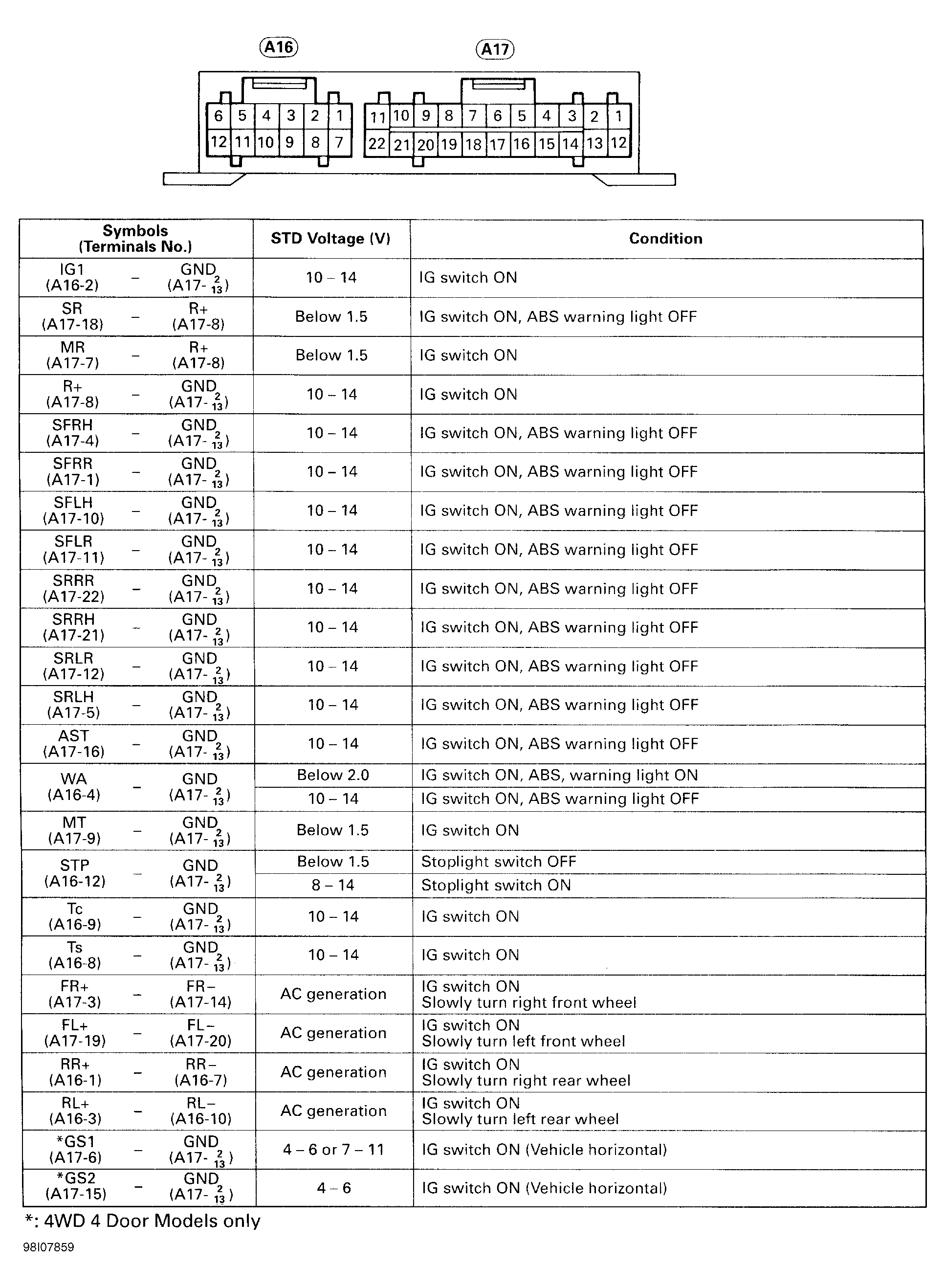

Fig 2: ABS ECU Standard Values Chart (1997 4WD 2 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

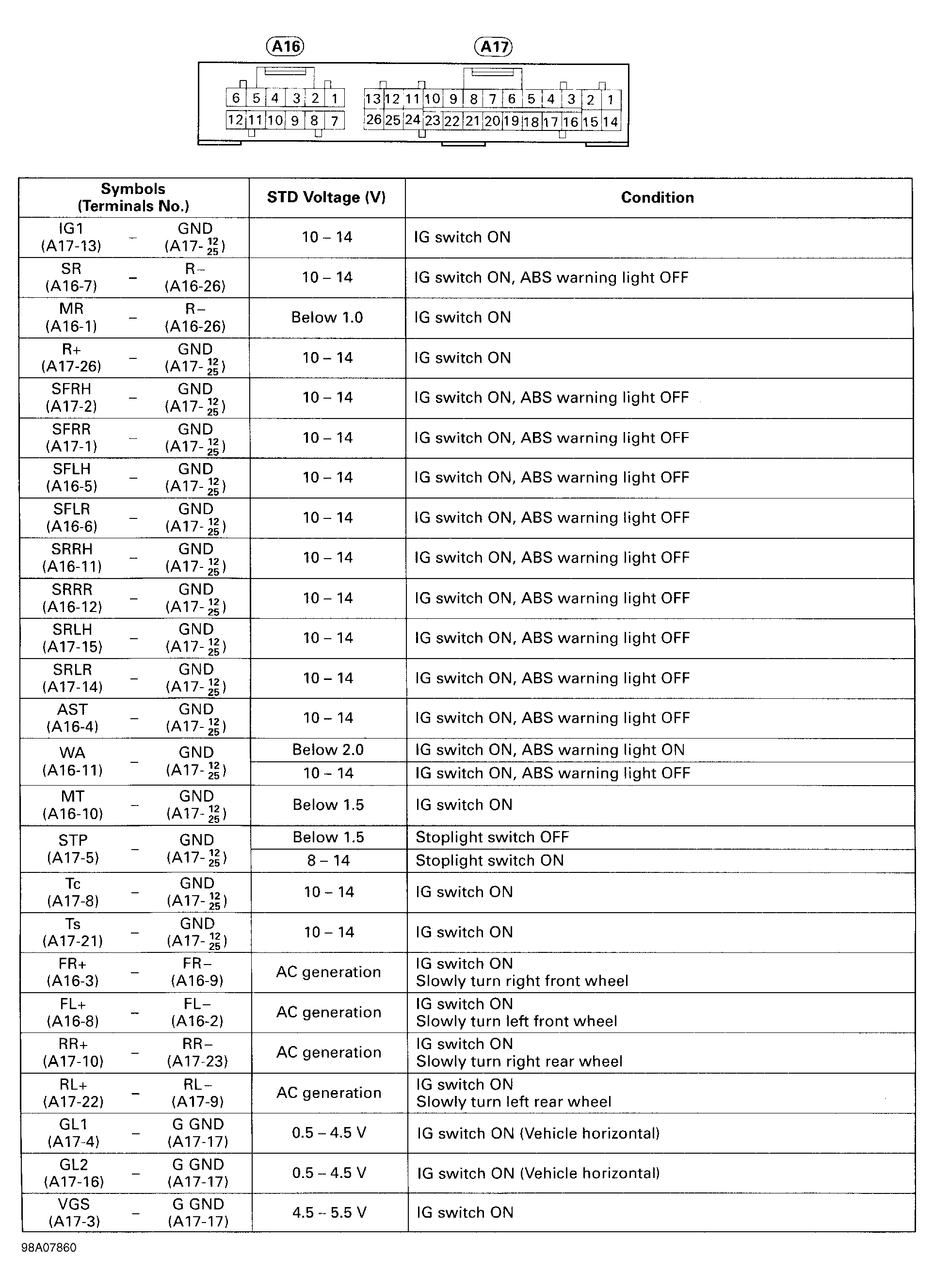

Fig 3: ABS ECU Standard Values Chart (1998)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
