Ignition Coil: Installation

To install, reverse removal procedure using NEW gaskets. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS .
When installing spark plug wire on ignition coil, ensure spline on holder aligns with spline on ignition coil. Lightly pull upward on holder to ensure lock claw is securely locked in place.

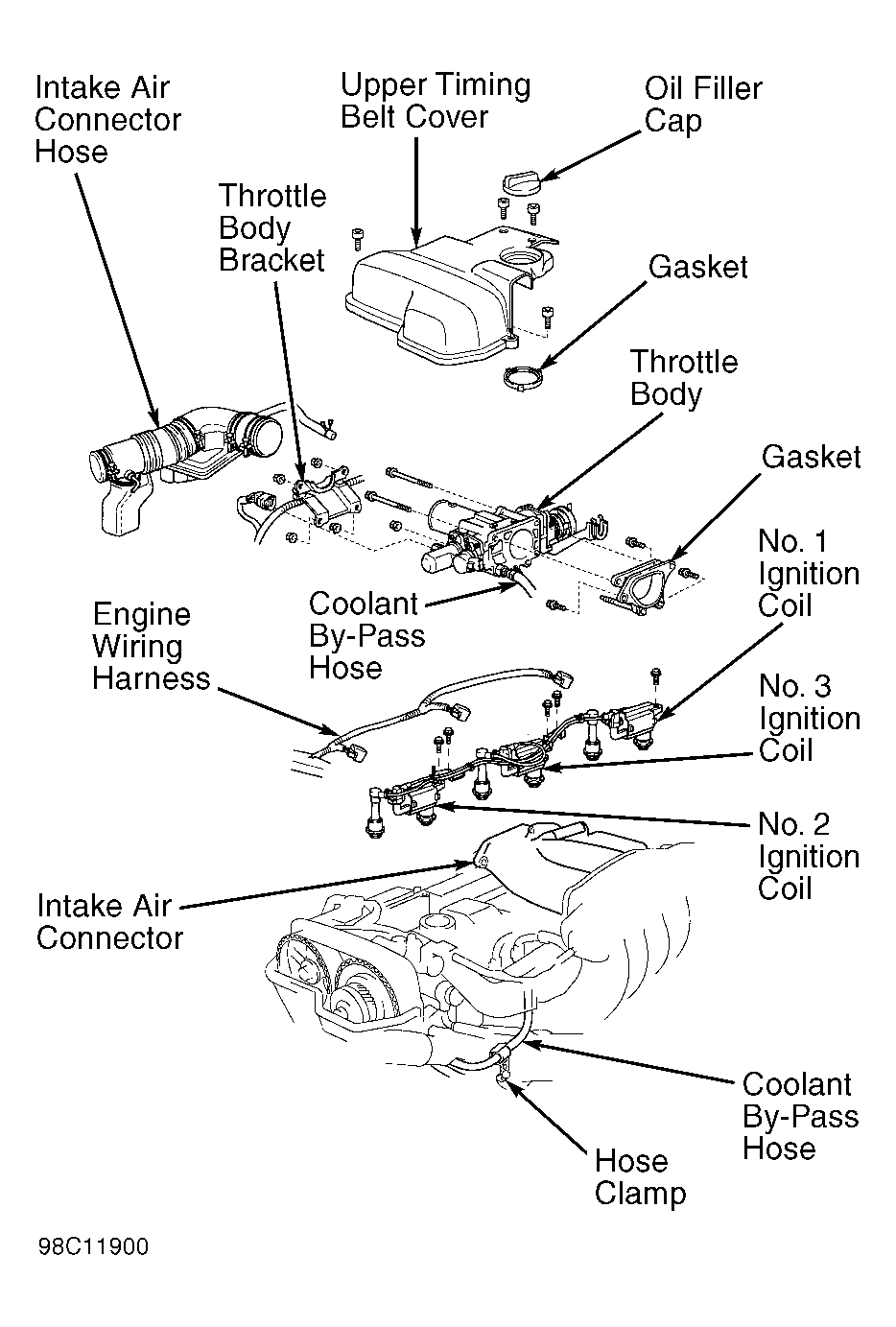

Fig 1: Locating Ignition Coils & Components (Non-Turbo)

Fig 2: Removing Spark Plug Wire From Ignition Coil (Non-Turbo)
