Electrical Component Locator: Miscellaneous
MISCELLANEOUS
| Component | Component Location |
|---|---|
| Blower Resistor | Below right side of dash, in blower housing. |
| Data Link Connector (DLC) No. 1 (2.4L & 2.7L) | On left side of engine compartment. See Figure. |

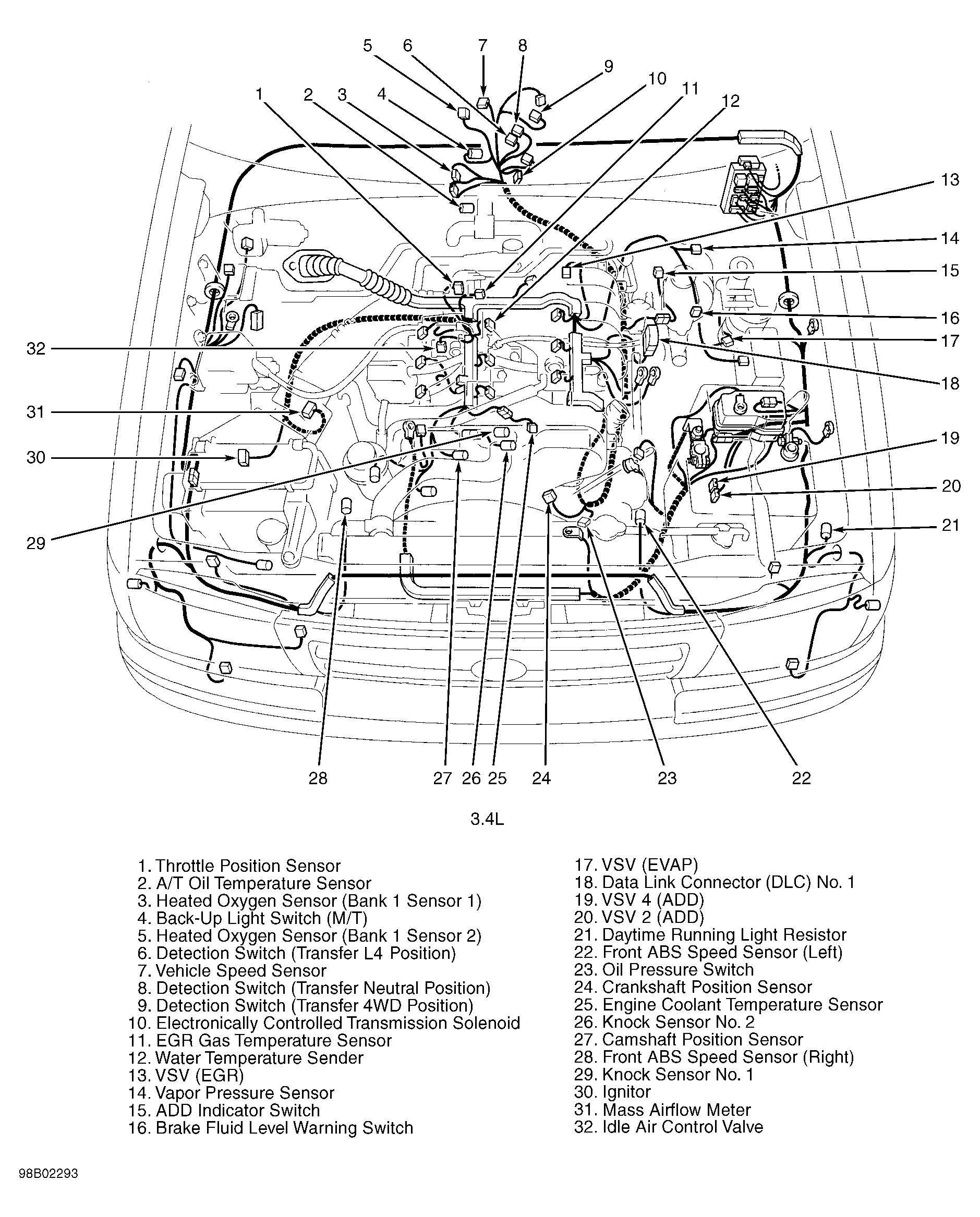

| Data Link Connector (DLC) No. 1 (3.4L) | On left side of engine compartment. See Figure. |
| Data Link Connector (DLC) No. 3 | Below left center of dash. |
| Daytime Running Light Resistor (2.4L & 2.7L) | On left front side of engine compartment. See Figure. |
| Daytime Running Light Resistor (3.4L) | On left front side of engine compartment. See Figure. |
| Diode (A/T) | Behind top center of dash, taped to harness. |
| Diode (Door Courtesy) | Behind top left side of dash, taped to harness. |
| Diode No. 1 (Daytime Running Light System) | Behind top left side of dash, taped to harness. |
| Diode No. 2 (Daytime Running Light System) | Behind top left center of dash, taped to harness. |
| Diode (O/D) | Behind top right side of dash, taped to harness. |
| Ignition Coil & Ignitor No. 1 (2.4L & 2.7L) | On left side of engine. |
| Ignition Coil & Ignitor No. 2 (2.4L & 2.7L) | On left side of engine. |
| Ignition Coils (3) (3.4L) | On valve cover, between cylinders. |
| Ignitor (3.4L) | On right side of engine compartment. See Figure. |
| Junction Connector | Behind upper left side of dash, taped to harness. |
| Junction Connectors (2) | Above glove box, taped to harness. |
| Junction Connectors (2) | On left side of engine compartment. |
| Noise Filter (Ignition System) (2.4L & 2.7L) | On right side of engine compartment. See Figure. |
