Fuel Pump Resistance & Operation

Disconnect electrical connector for fuel pump. See FUEL PUMP ELECTRICAL CONNECTOR LOCATION table.

FUEL PUMP ELECTRICAL CONNECTOR LOCATION

Application	Connector Location
Camry, Celica & Corolla	Under Cover Plate, Below Rear Seat
RAV4	Under Cover Plate, Below Driver's Side Rear Seat
Tacoma	On Top Of Fuel Tank At Fuel Pump
Tercel	Under Cover Plate, Below Rear Seat
T100	On Top Of Fuel Tank, Near Fuel Pump
4Runner	On Top Of Fuel Tank At Fuel Pump

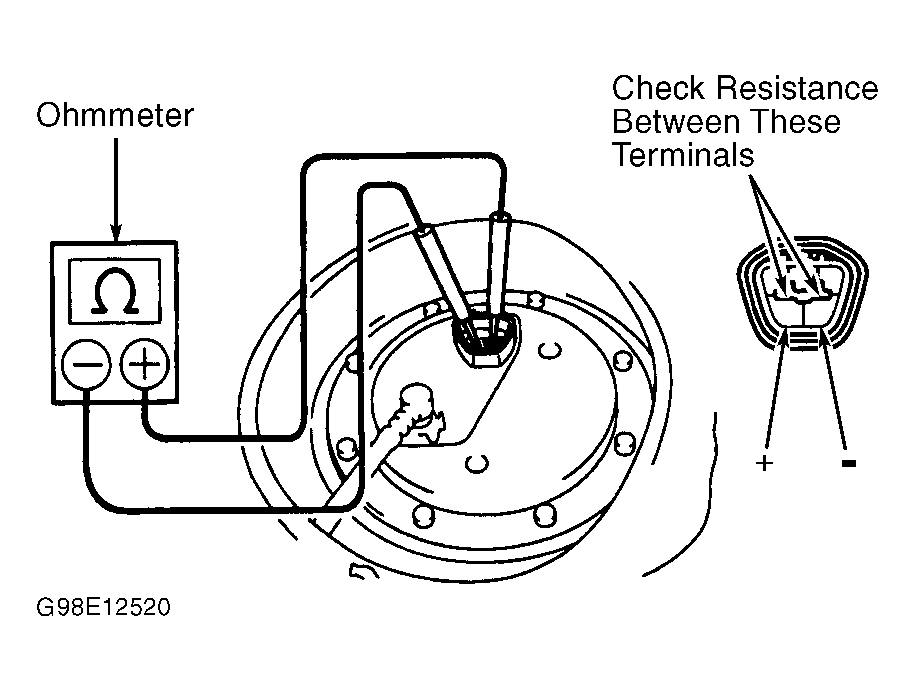

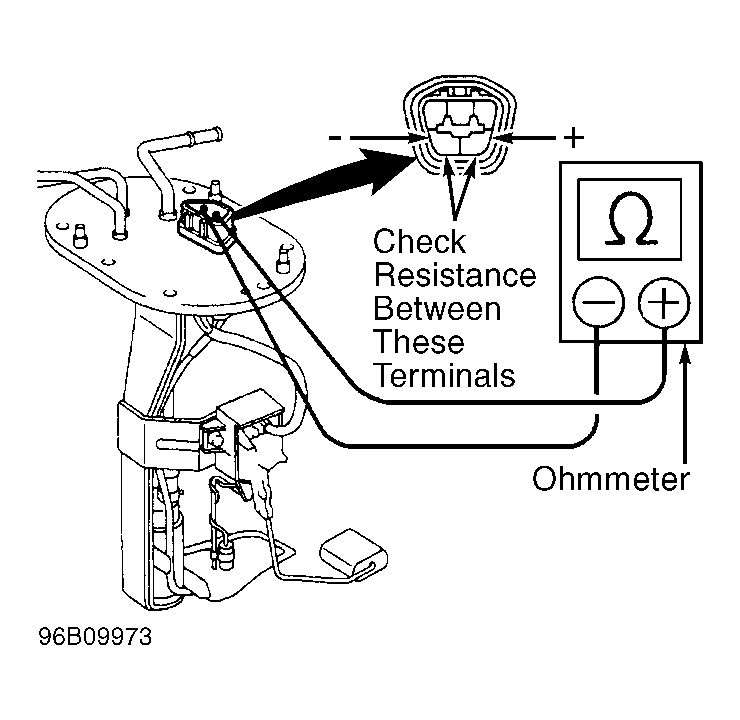

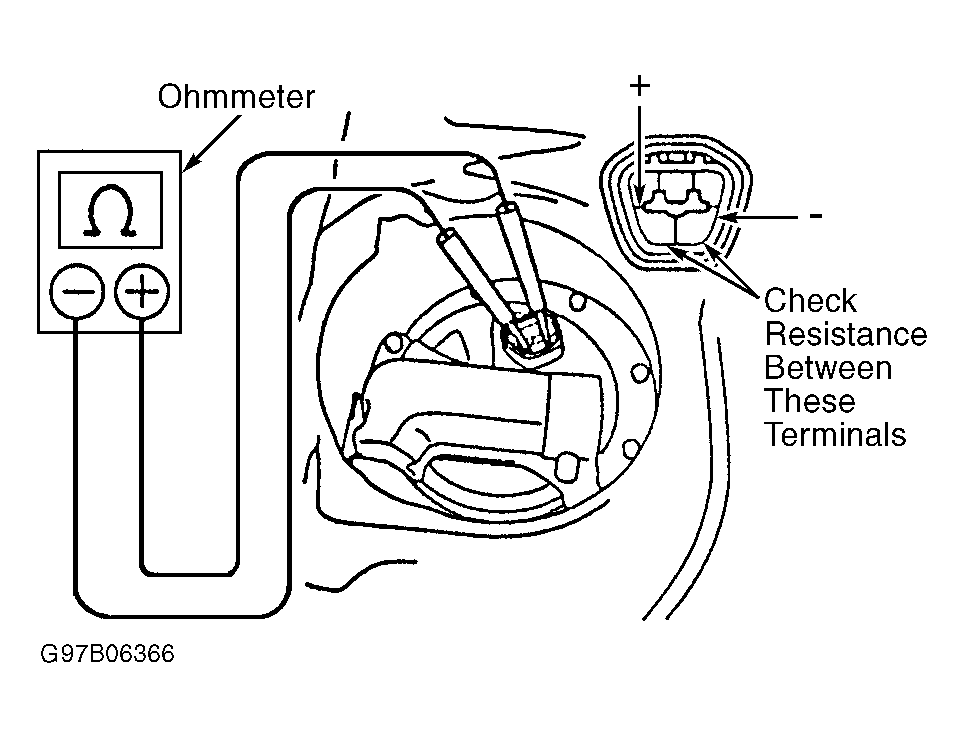

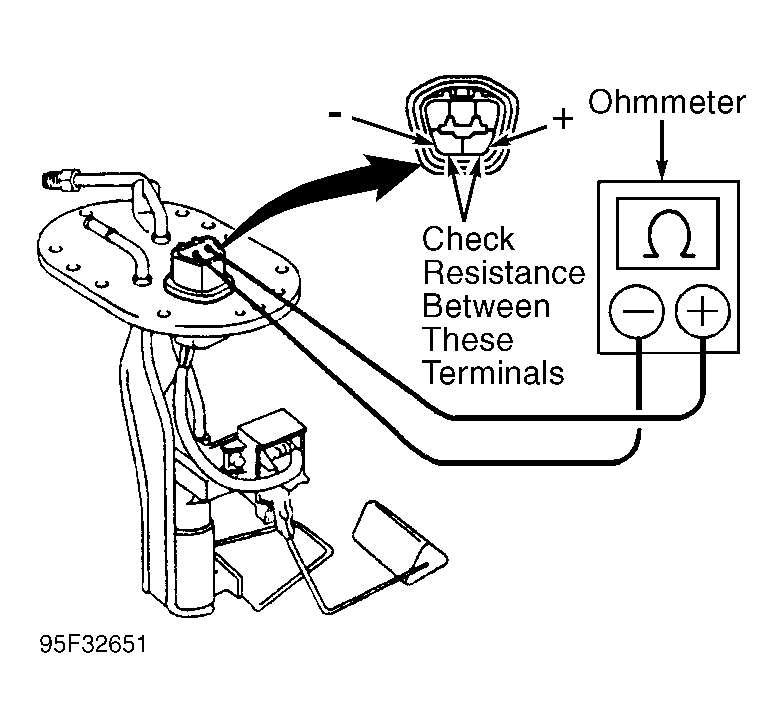

To test fuel pump resistance, use ohmmeter to check resistance between specified terminals on fuel pump electrical connector or fuel pump. See Fig 1-Fig 8 . Replace fuel pump if resistance is not.20-3.00 ohms at 68°F (20°C).
CAUTION: When testing fuel pump operation, DO NOT apply battery voltage to fuel pump for more than 10 seconds or fuel pump may be damaged. When testing fuel pump operation, keep fuel pump away from battery as far as possible.
To test fuel pump operation, apply battery voltage and ground to (+) and (-) terminals on electrical connector or fuel pump. See Fig 1-Fig 8 . DO NOT apply battery voltage to fuel pump for more than 10 seconds. Keep fuel pump away from battery as far as possible. Replace fuel pump if fuel pump fails to operate.
