Service Point Locations

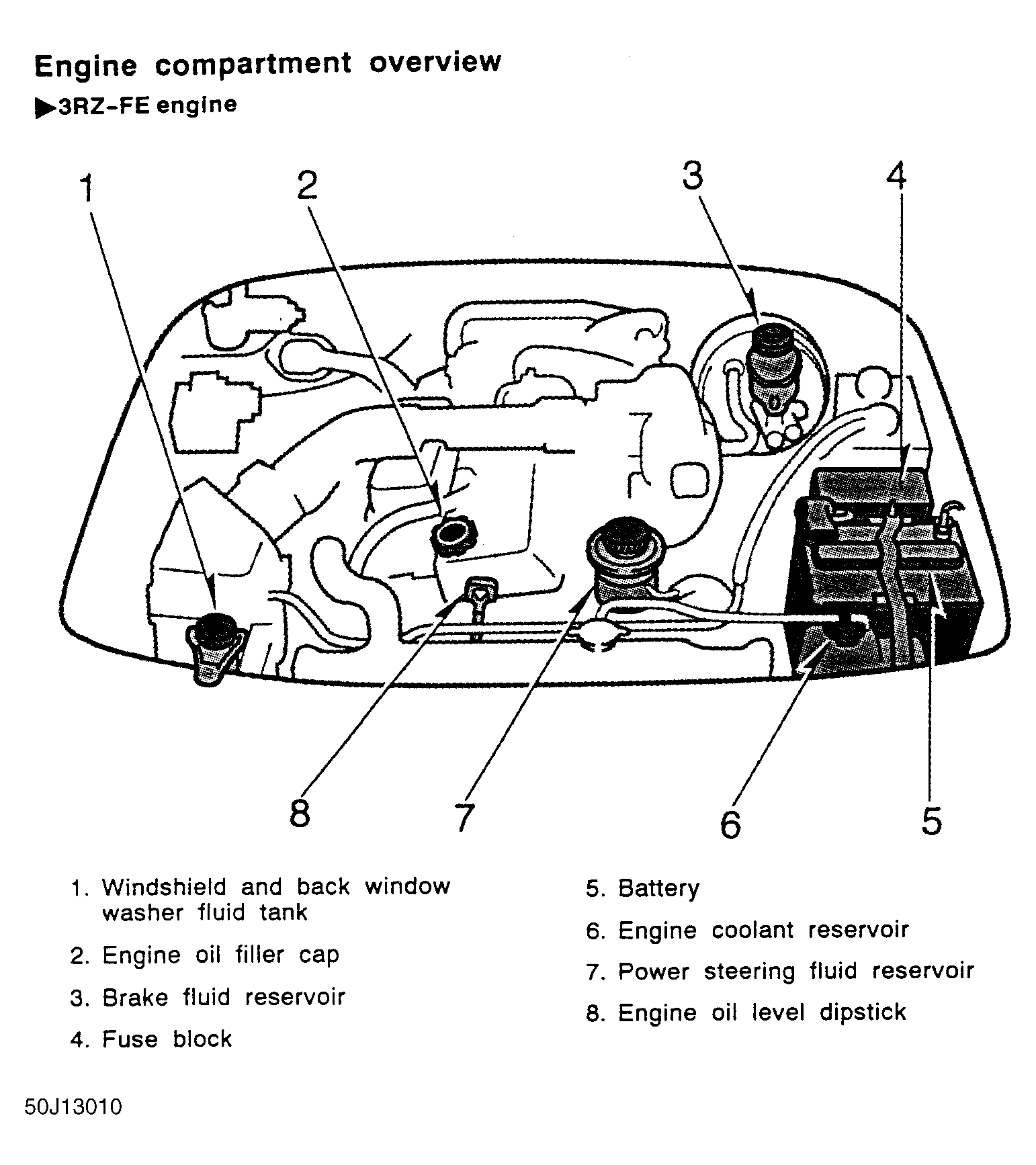

Fig 1: Service Point Locations - 3RZ-FE Engine
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

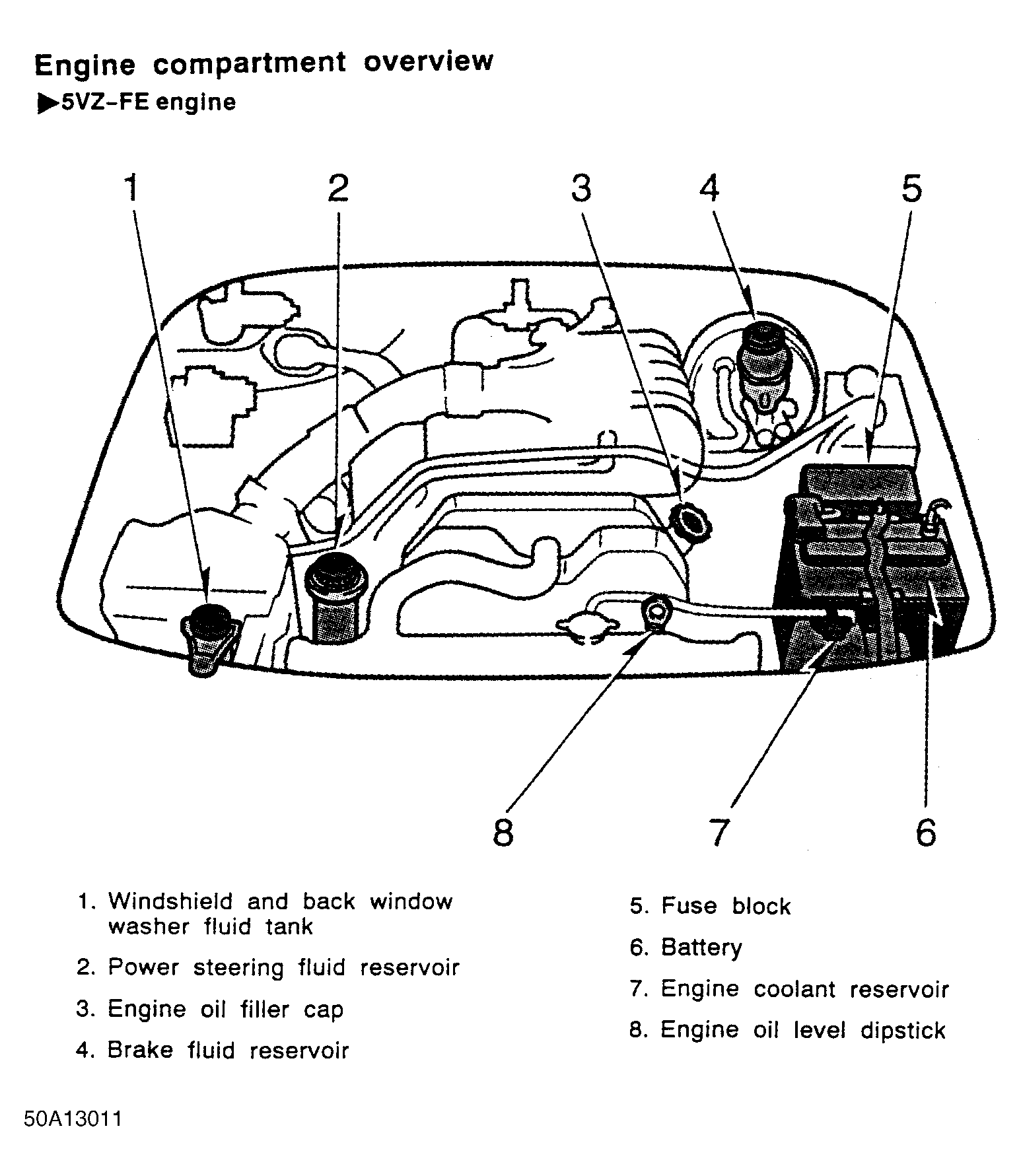

Fig 2: Service Point Locations - 5VZ-FE Engine
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

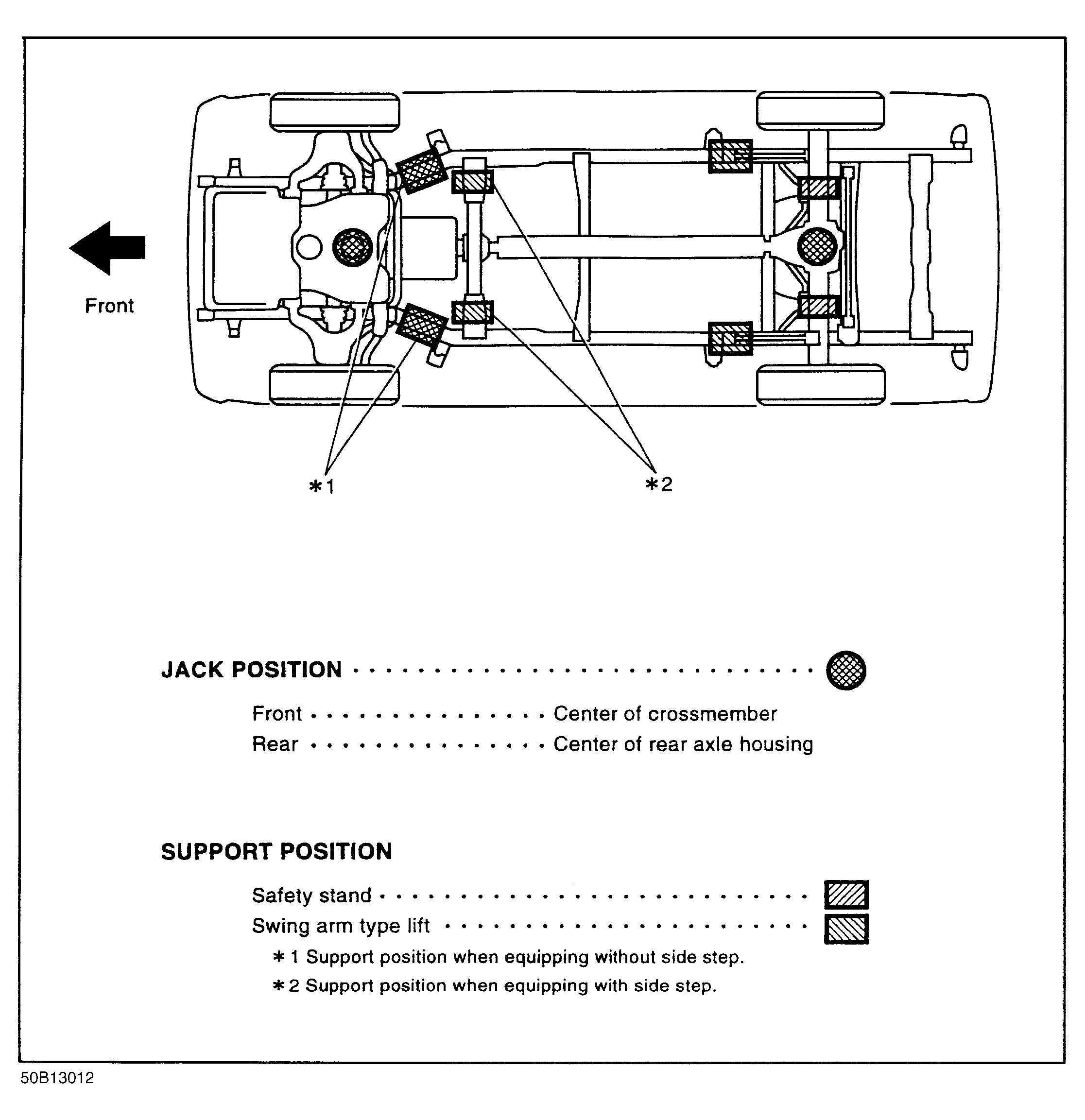

Fig 3: Lift Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
