Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1-Fig 4 .

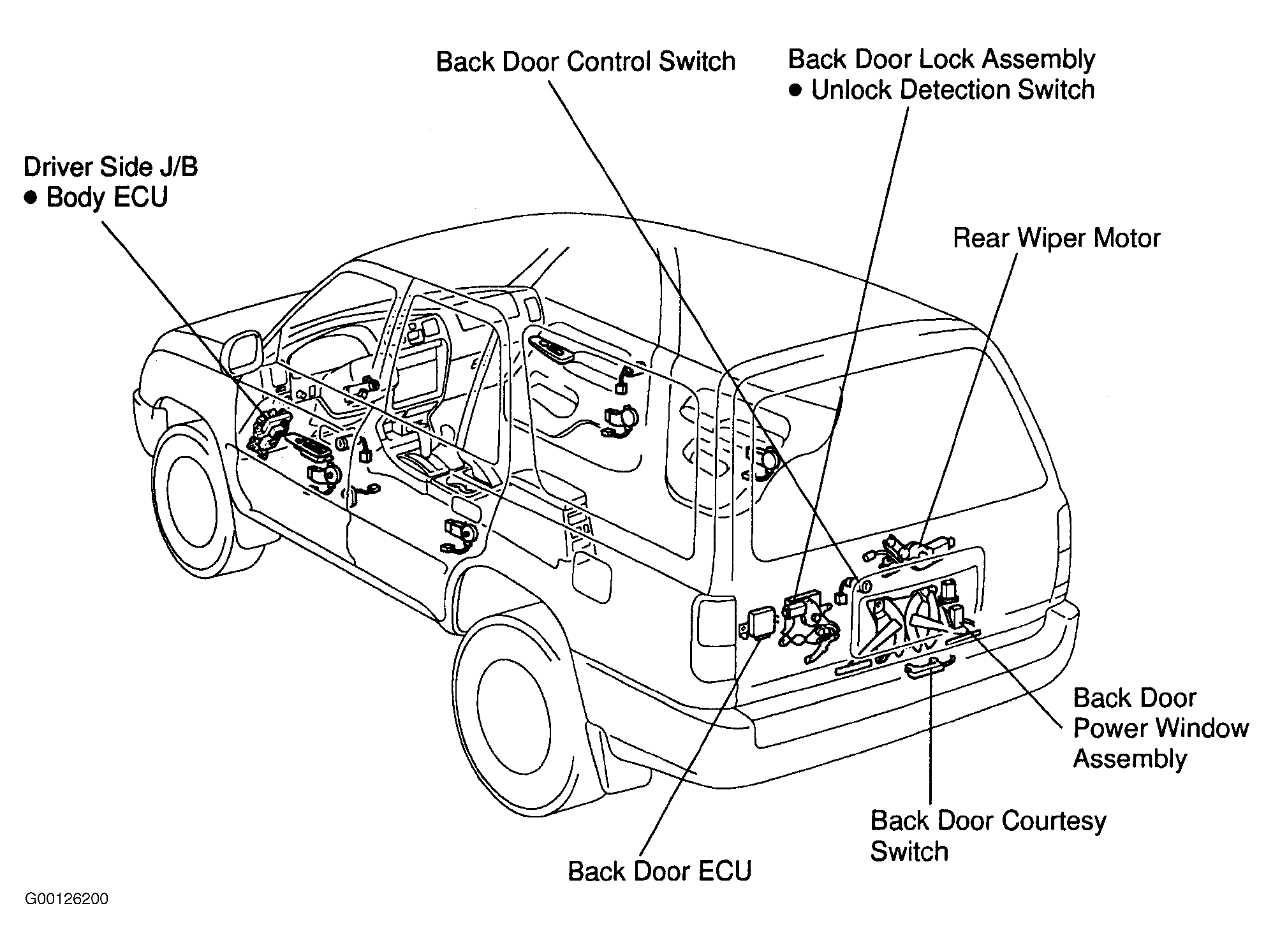

Fig 1: Locating Back Door Control System Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

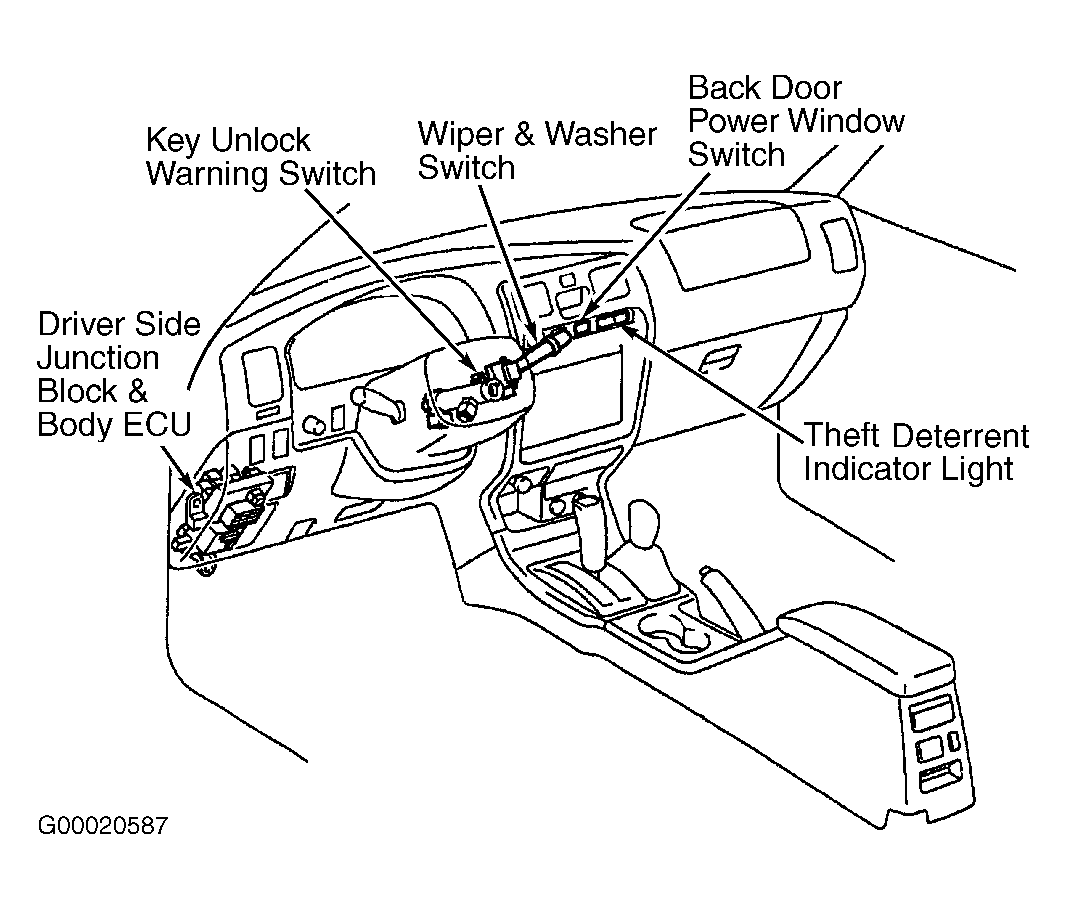

Fig 2: Locating Body Control System Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

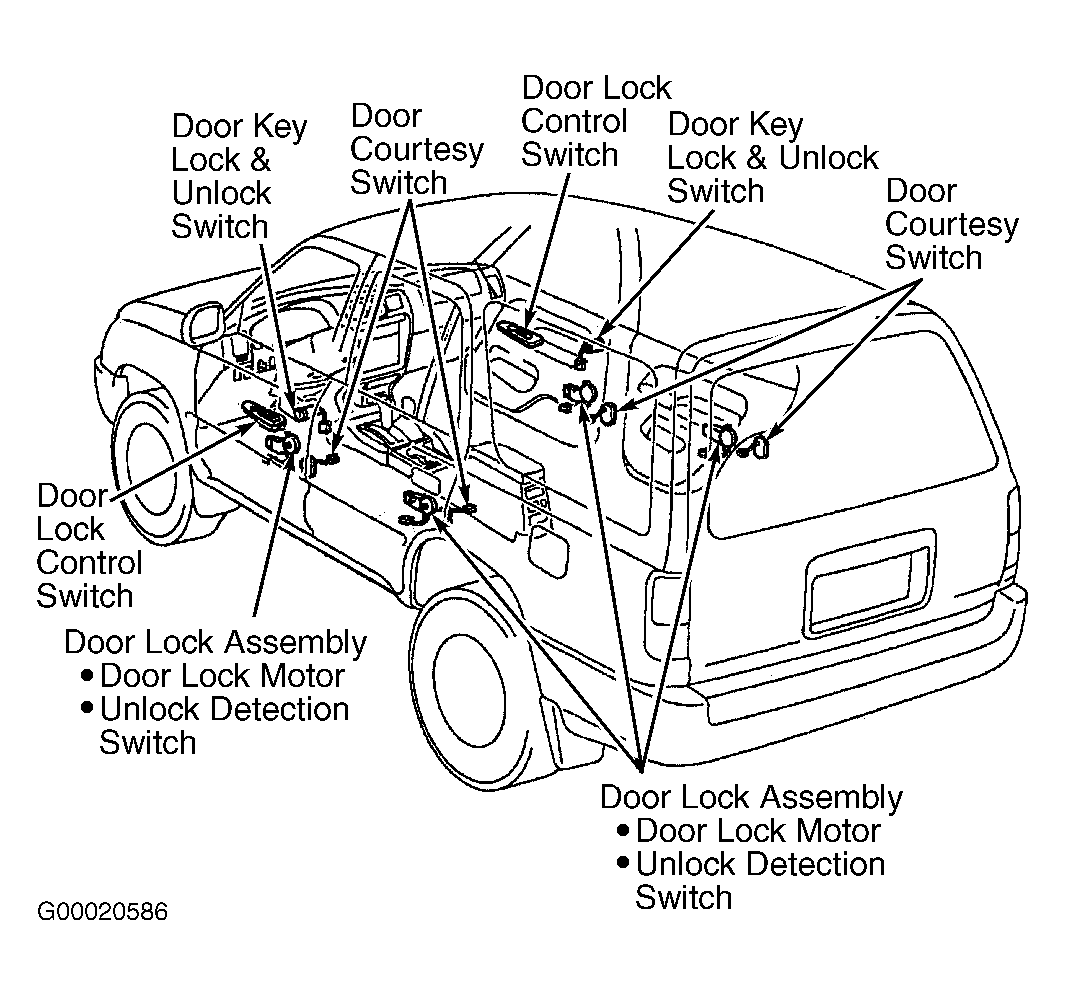

Fig 3: Locating Body Control System Components (2 Of 3)

Fig 4: Locating Body Control System Components (3 Of 3)
