Diagnostic Tests: Notes

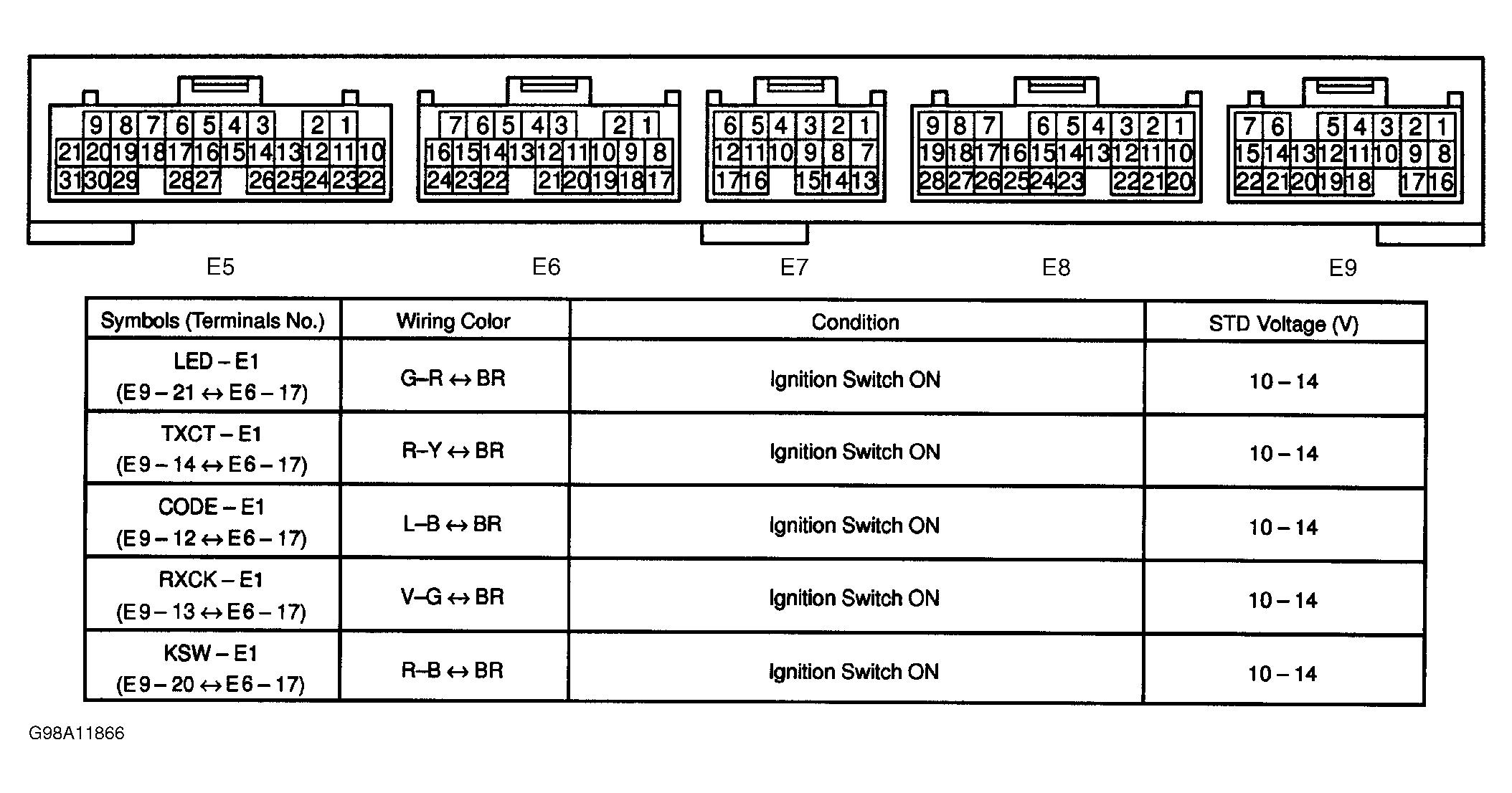

NOTE: When performing diagnostic tests, it may be necessary to identify Engine Control Module (ECM) terminals. For ECM terminal identification, see Figure.
