Front Wheel Speed Sensor: Removal

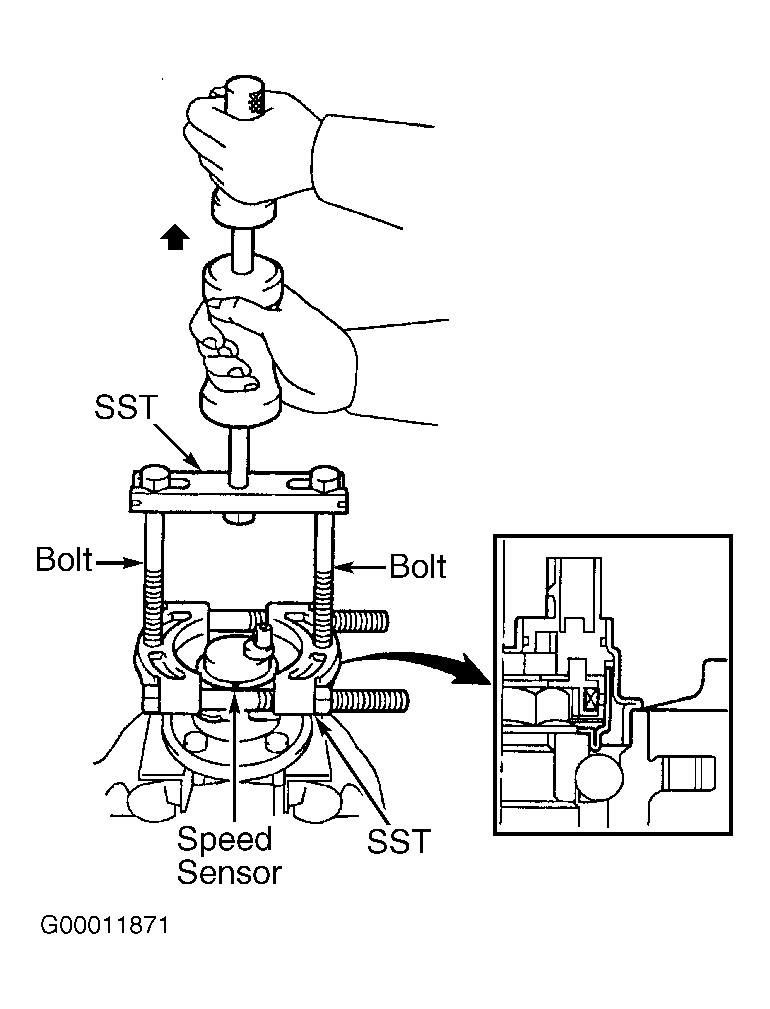

Remove appropriate front wheel. Disconnect speed sensor electrical connector. Remove front axle hub with speed sensor still installed. Mount axle hub assembly in a soft-jawed vise. Use slide hammer/puller (09520-00031) to remove speed sensor from rear of axle hub assembly. See Fig 1. If speed sensor rotor is damaged, replace hub assembly.
