Torque Specifications

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Timing Chain Cover Plug

ECHO & Prius

11 (15.0)

Valve Cover Bolt Or Nut

Camry CNG & Gasoline Models, & Camry Solara

33 (45)

Celica

1.8L 1ZZ-FE

⁽¹⁾

1.8L 2ZZ-GE

⁽²⁾

Corolla

⁽³⁾

ECHO

⁽⁴⁾

Highlander

⁽⁶⁾

MR2

⁽³⁾

Prius

⁽⁴⁾

RAV4

⁽⁵⁾

Tacoma

⁽⁷⁾

Ventilation Pipe Bolt/Nut

Celica

1.8L 2ZZ-GE

⁽⁸⁾

Wheel Lug Nut

Highlander

76 (103)

INCH Lbs. (N.m)

Ignition Coil Bolt

Celica, Corolla, ECHO, Highlander, MR2, Prius & RAV4

80 (9.0)

Tacoma

66 (7.5)

⁽¹⁾	Tighten bolts/nuts with washer to 80 INCH lbs. (9.0 N.m). Tighten bolts/nuts without washer to 97 INCH lbs. (11.0 N.m).

⁽²⁾	Tighten bolts to 88 INCH lbs. (9.9 N.m).

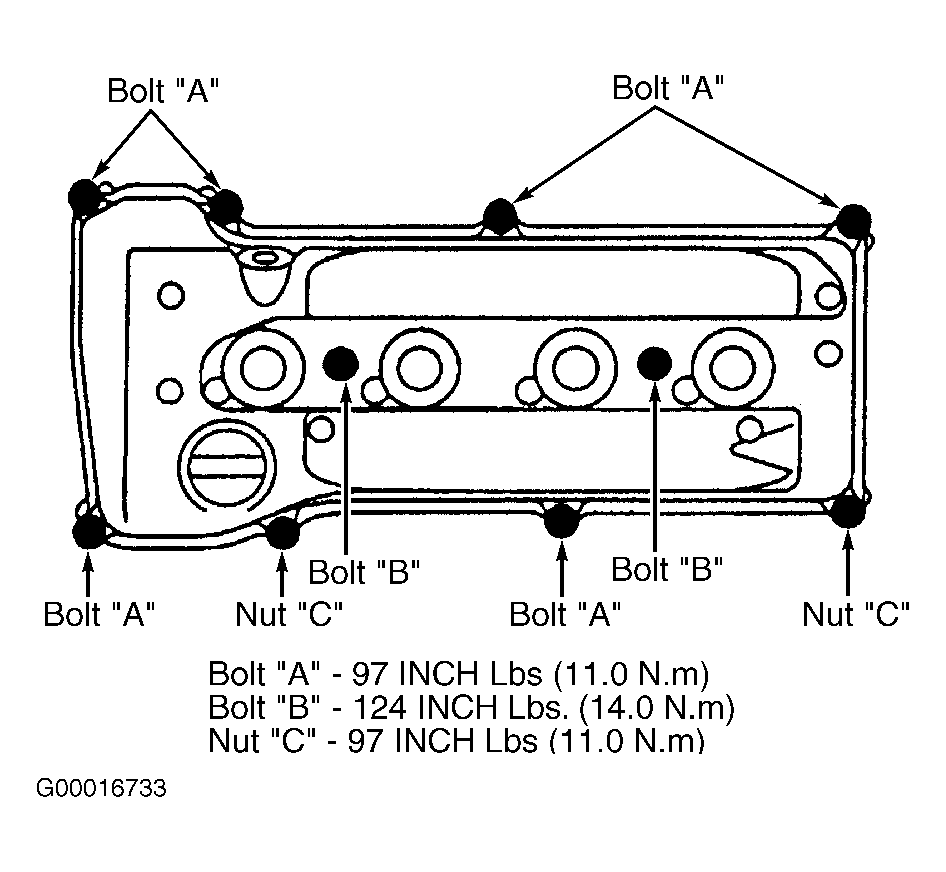

⁽³⁾	Tighten bolts/nuts with washer to 80 INCH lbs. (9.0 N.m). Tighten bolts/nuts without washer to 97 INCH lbs. (11.0 N.m). Tighten bolts/nuts to specification in sequence. See Figure.

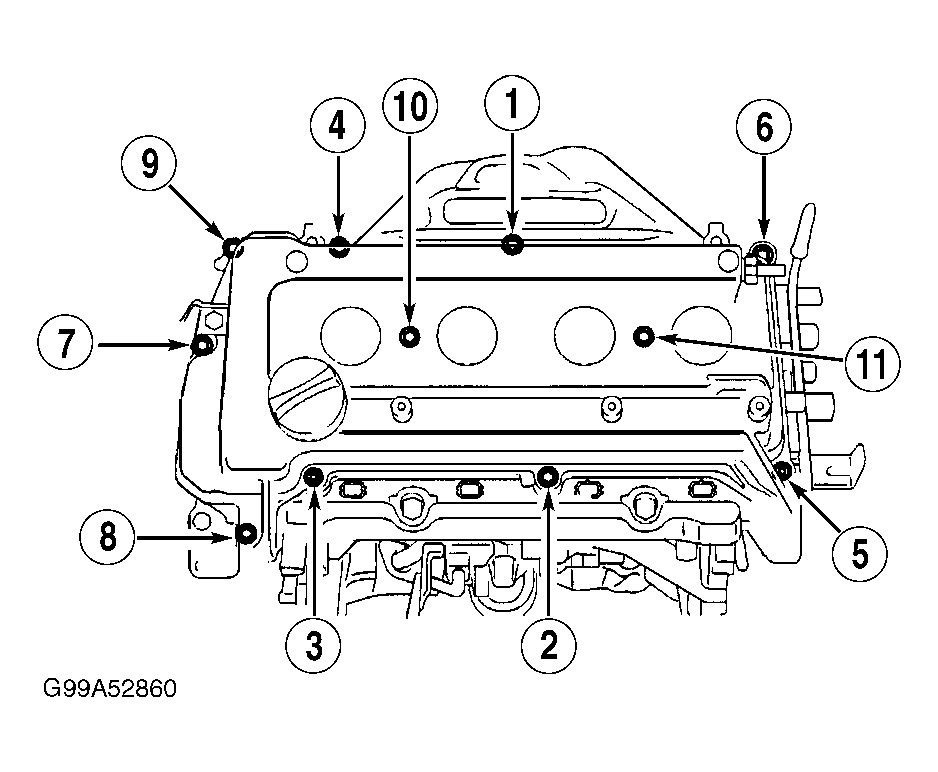

⁽⁴⁾	Tighten bolts/nuts to 88 INCH lbs. (9.9 N.m) using proper sequence. See Figure.

⁽⁵⁾	Tighten bolts/nuts to 97 INCH lbs. (11.0 N.m).

⁽⁶⁾	Tighten bolts/nuts to specification. See Figure.

⁽⁷⁾	Information is not available from manufacturer.

⁽⁸⁾	Tighten nuts to 88 INCH lbs. (9.9 N.m) and bolt to 18 ft. lbs. (24 N.m).
