Engine Unit: Components

WARNING: This page is about a different car, the 2004 Toyota MR2, 2003 Toyota MR2, and 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

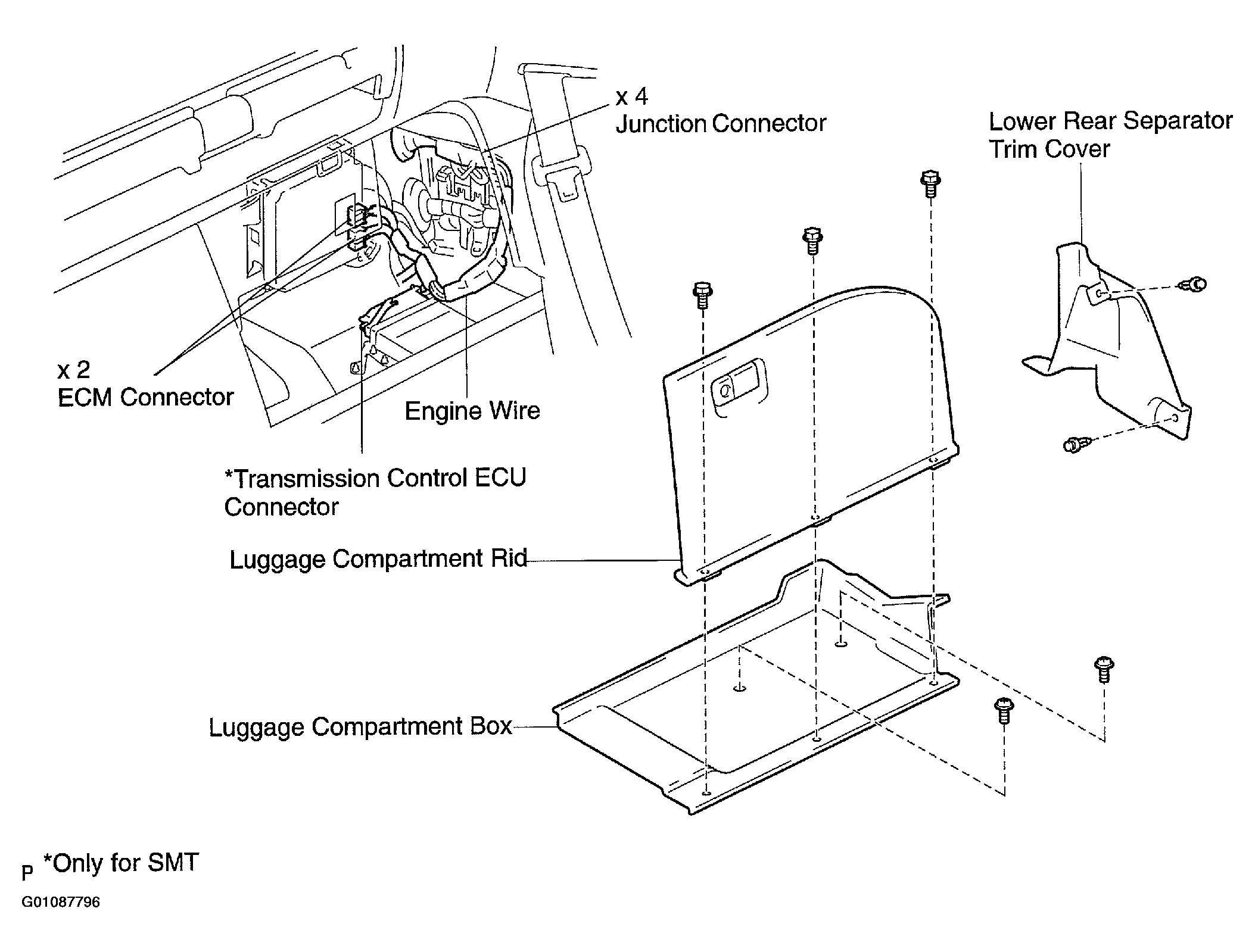

Fig 1: Identifying Components To Perform Engine Installation (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

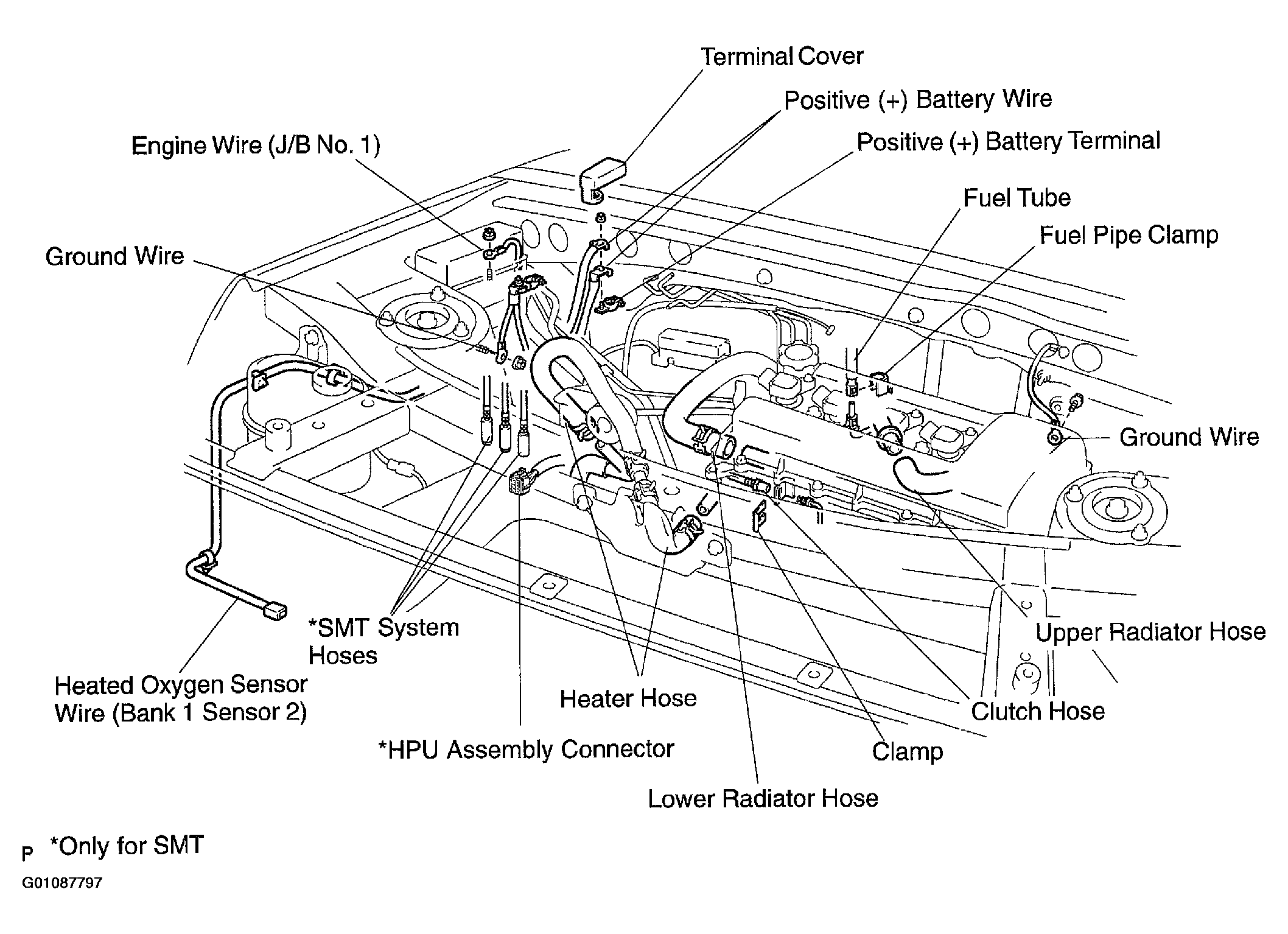

Fig 2: Identifying Components To Perform Engine Installation (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

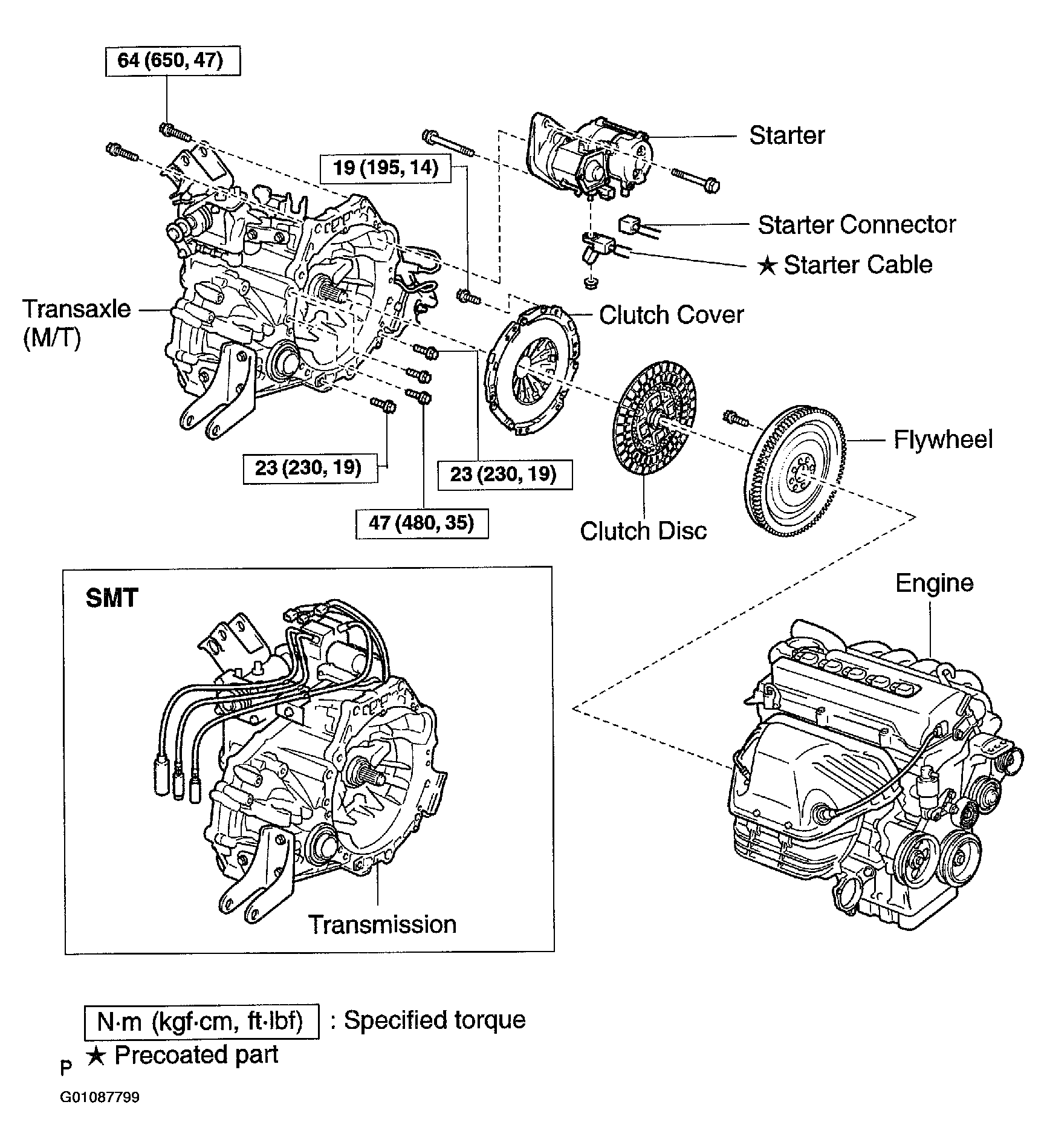

Fig 3: Identifying Components To Perform Engine Installation (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

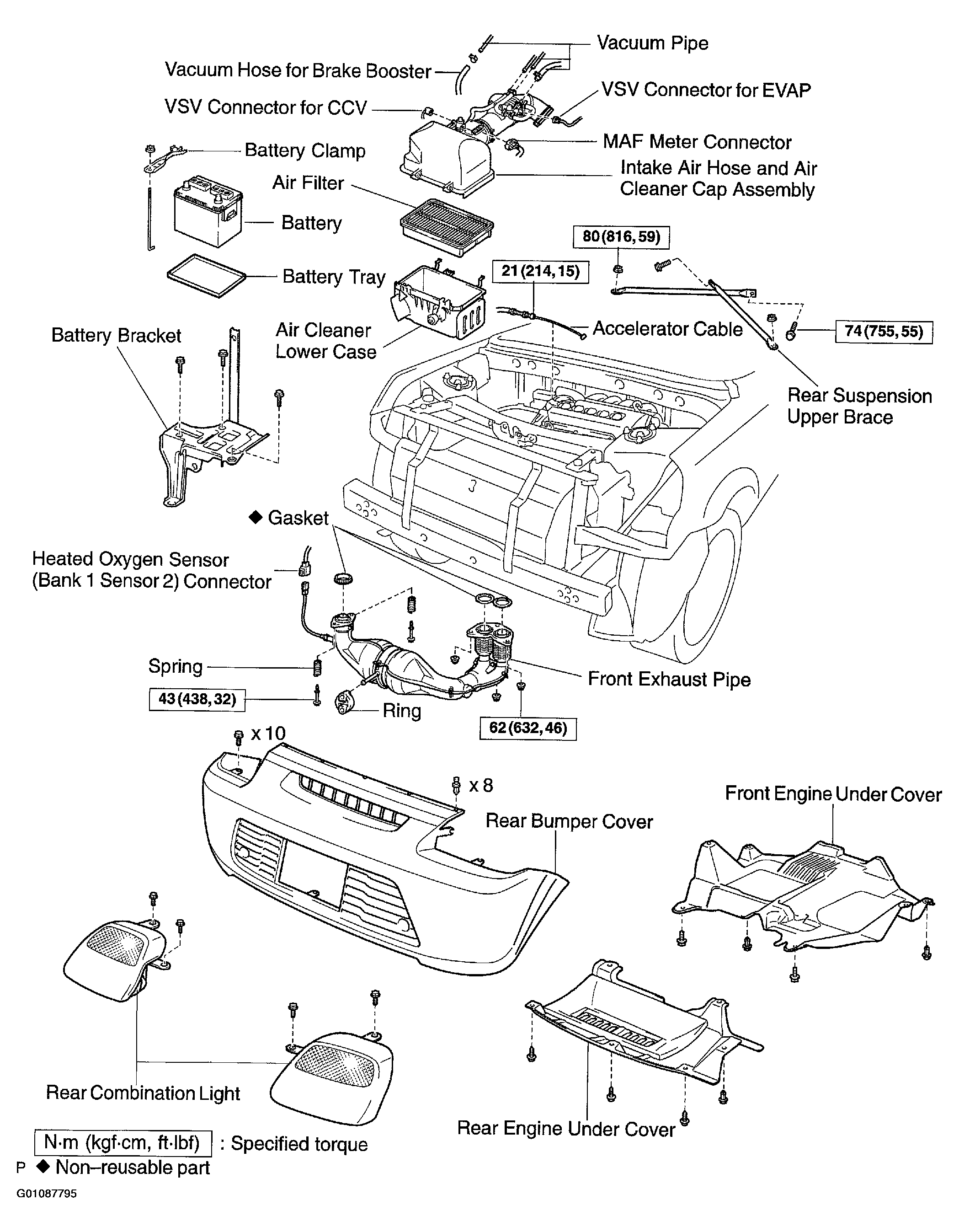

Fig 4: Identifying Components To Perform Engine Installation (4 Of 5)

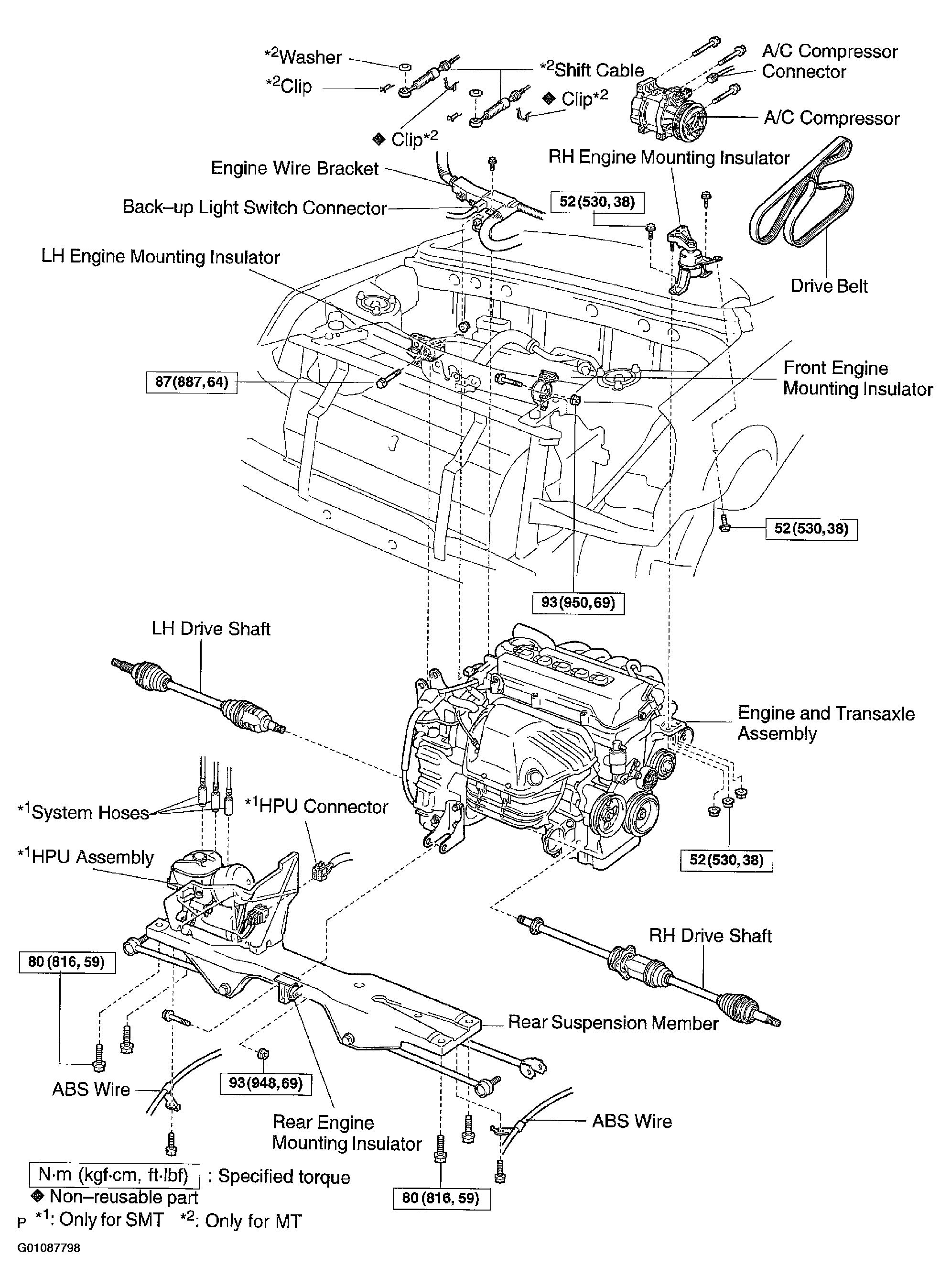

Fig 5: Identifying Components To Perform Engine Installation (5 Of 5)
