Timing Chain: Replacement

WARNING: This page is about a different car, the 2004 Toyota MR2, 2003 Toyota MR2, and 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. REPLACE CRANKSHAFT FRONT OIL SEAL

    HINT:

    NOTE: There are 2 methods ( a and ( b to replace the oil seal.
    1. If the timing chain cover is removed from the cylinder block.
      1. Using a screwdriver and a hammer, tap out the oil seal.
        Fig 1: Using Screwdriver To Remove Oil Seal
        G01087674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the timing chain cover edge.

        SST 09309-37010

      3. Apply MP grease to the oil seal lip.
        Fig 2: Tapping In New Oil Seal Using SST (Cover Removed)
        G01087675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. If the timing chain cover is installed to the cylinder block.
      1. Using SST, remove the oil seal.

        SST 09308-10010

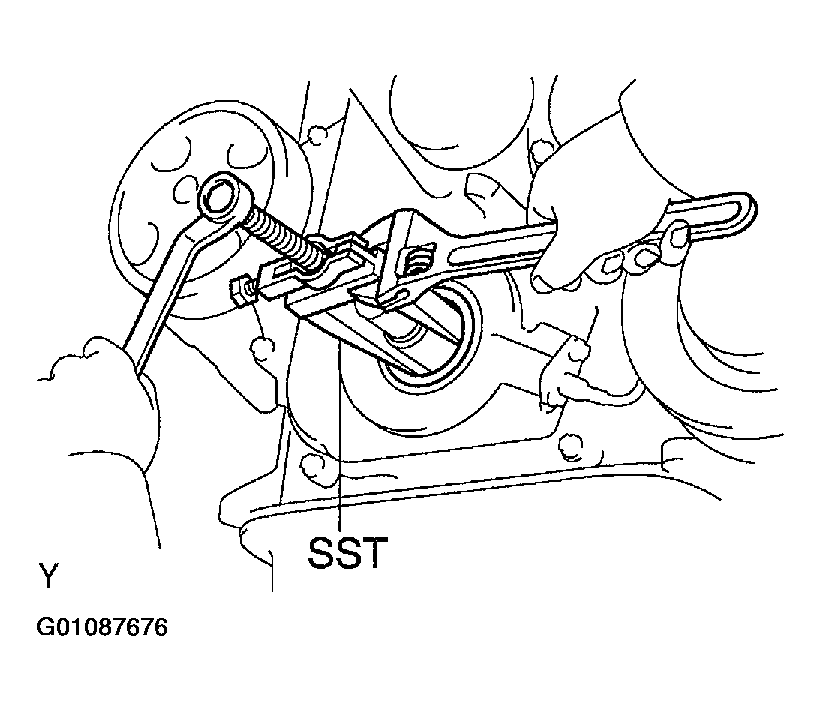

        Fig 3: Using SST To Remove Oil Seal From Front Cover
        G01087676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the timing chain cover edge.

        SST 09309-37010

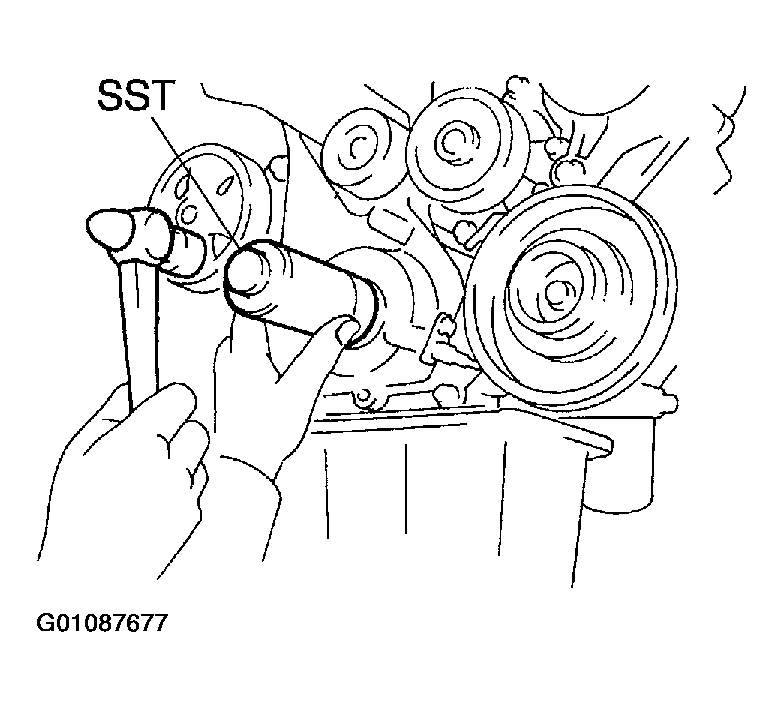

        Fig 4: Tapping In New Oil Seal Using SST (Cover Installed)
        G01087677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REPLACE DRIVE BELT IDLER BEARING
    1. Mount the drive belt idler in a vice, and remove the bolt, washer and pulley.

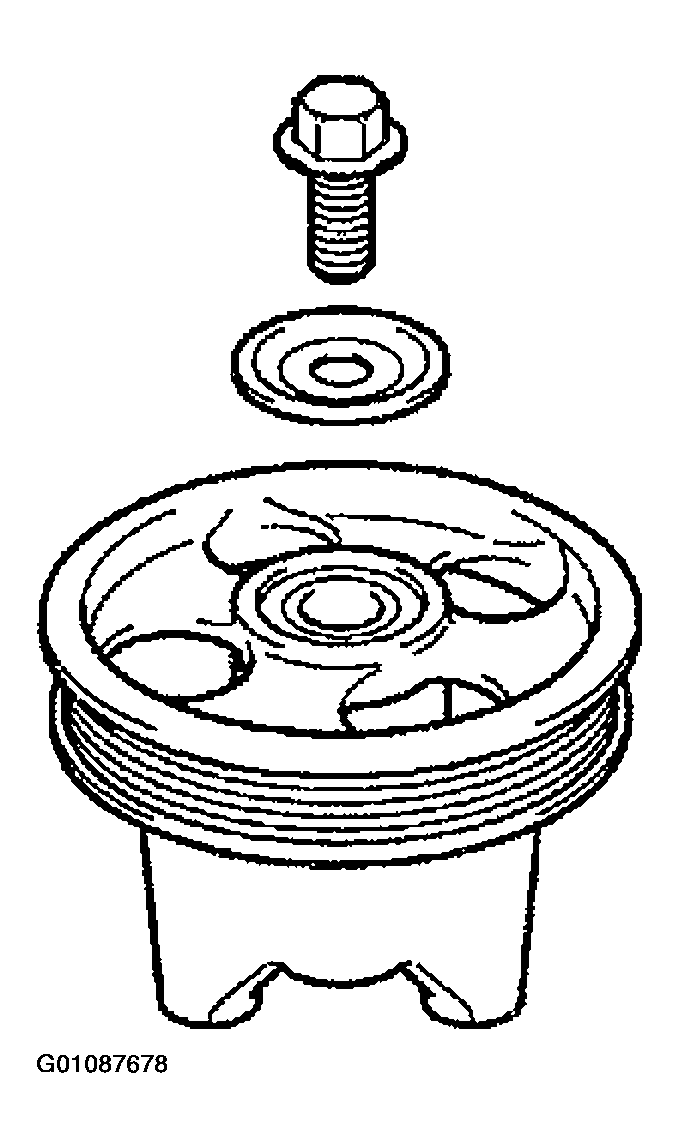

      Fig 5: Removing Idler Bolt, Washer And Pulley
      G01087678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, press out the bearing.

      SST 09950-60010 (09951-00240), 09950-70010 (09951-07100)

      Fig 6: Pressing Out Bearing From Idler Pulley
      G01087679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST and a press, press in a new bearing.

      SST 09950-60010 (09951-00390), 09950-70010 (09951-07100)

      Fig 7: Pressing In New Idler Bearing
      G01087680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Mount the drive belt idler in a vice, and reinstall the pulley with the washer and bolt.

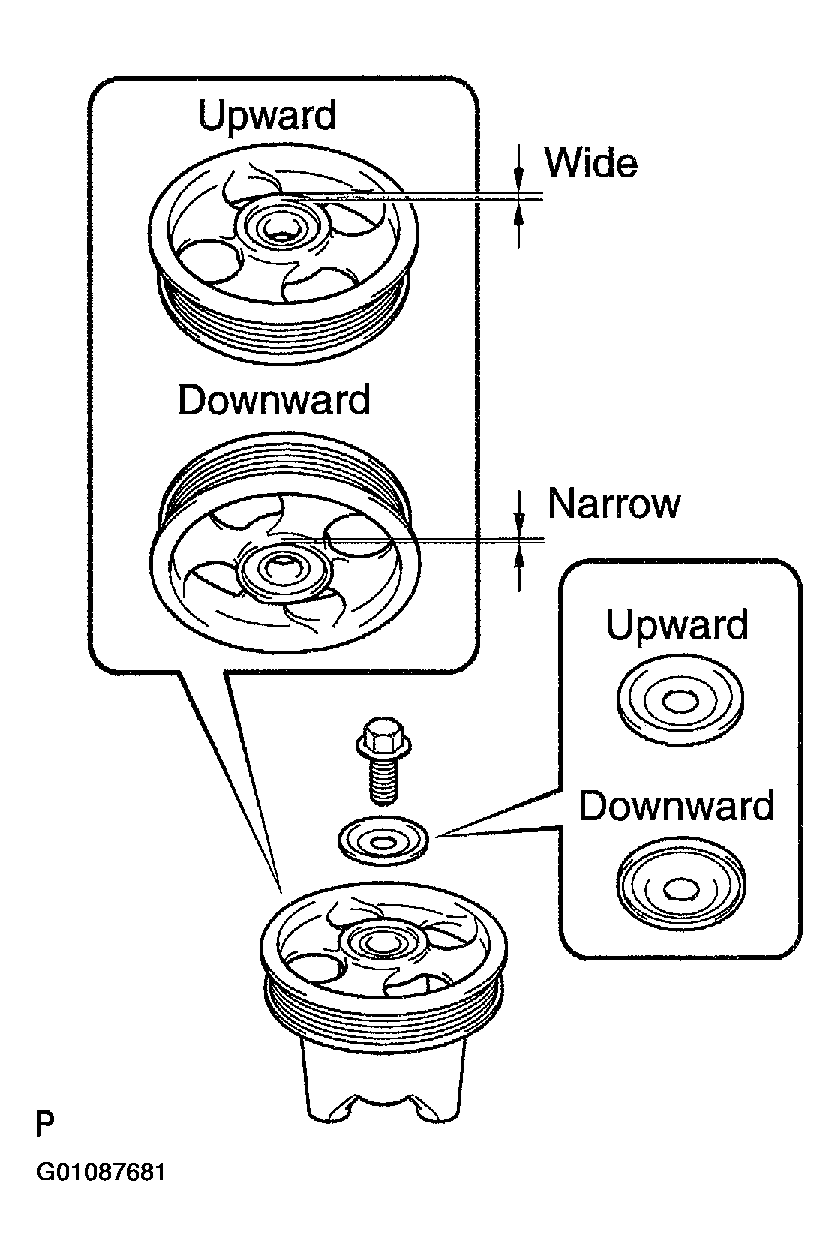

      Fig 8: Reinstalling Pulley
      G01087681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

      NOTE: Be careful of the installation direction of pulley and washer.
