Special Service Tools (SS001-00)

Publication date: 2000-09-15
Reference number: SS001-00

SPECIAL SERVICE TOOLS

SPECIAL SERVICE TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS001-00, Date of Issue:  September 15, 2000
COPYRIGHT: © 2018 Toyota, USA License Agreement TMS1002

SPECIAL SERVICE TOOLS

Model(s): 2000 Toyota, All Models

2001 Toyota Prius

Section: Special Service Tools

Bulletin No.: SS001-00

Date: September 15, 2000

INTRODUCTION

This TSB contains information regarding Special Service Tools (SSTs) distributed or added to the SST program during the 2000 model year as well as those regarding 2001 model year Prius. Both the Essential and Available SSTs are listed by tool number, tool name, and model application.

Special Service Tools can be ordered through the Toyota SST Program by calling 1-800-933-8335.

APPLICABLE VEHICLES

All 2000 model year Toyota vehicles and 2001 model year Prius vehicles.

2000 MY ESSENTIAL SPECIAL SERVICE TOOLS

Refer to Fig 1 and Fig 2 .

2001 MY ESSENTIAL SPECIAL SERVICE TOOLS

Refer to Fig 3.

2000 MY AVAILABLE SPECIAL SERVICE TOOLS

Refer to Fig 4.

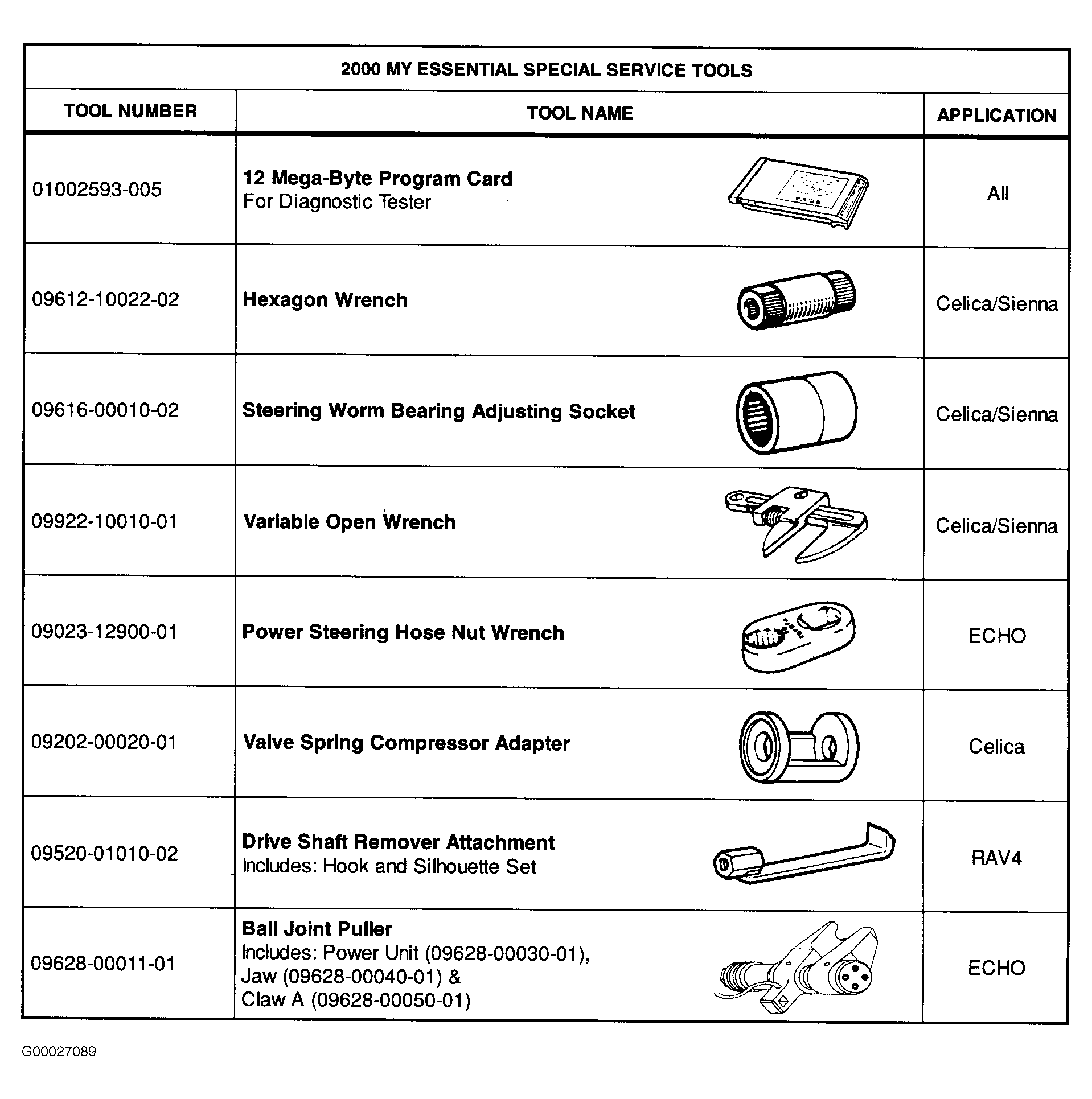

Fig 1: 2000 MY Essential Special Service Tools
G00027089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

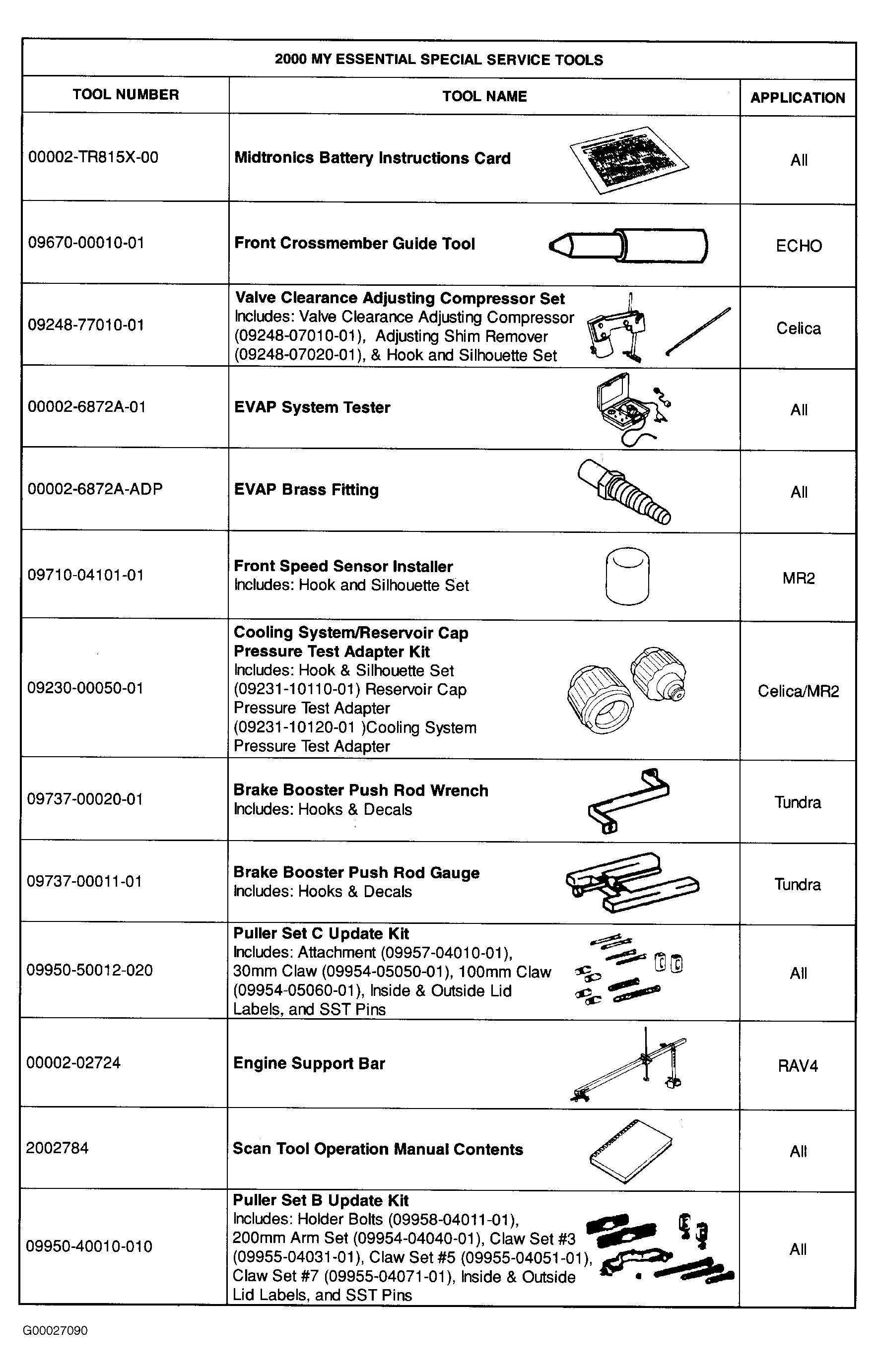

Fig 2: 2000 MY Essential Special Service Tools (Continued)
G00027090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

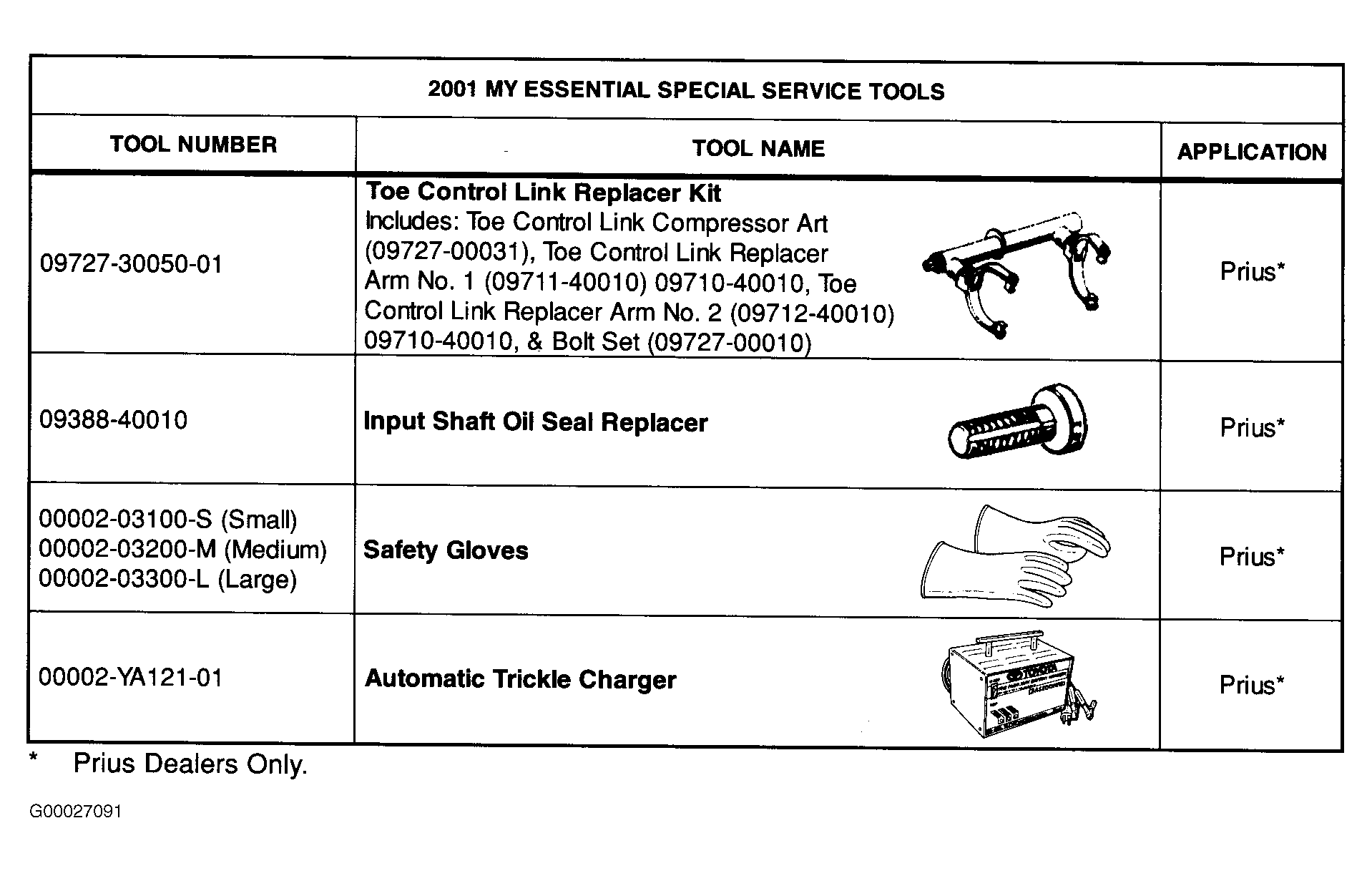

Fig 3: 2001 MY Essential Special Service Tools
G00027091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

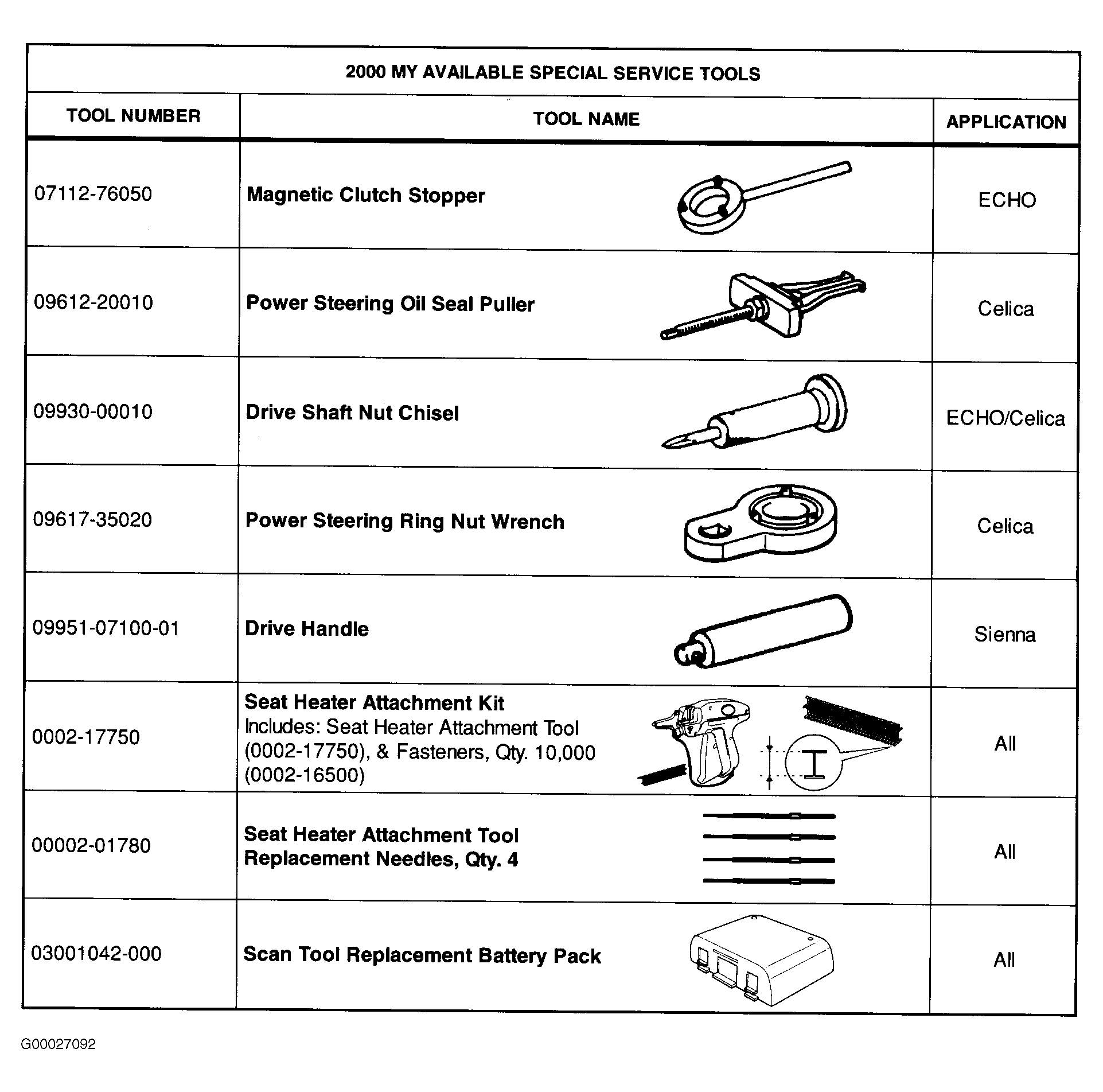

Fig 4: 2000 MY Available Special Service Tools
G00027092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
