System Tests: Notes

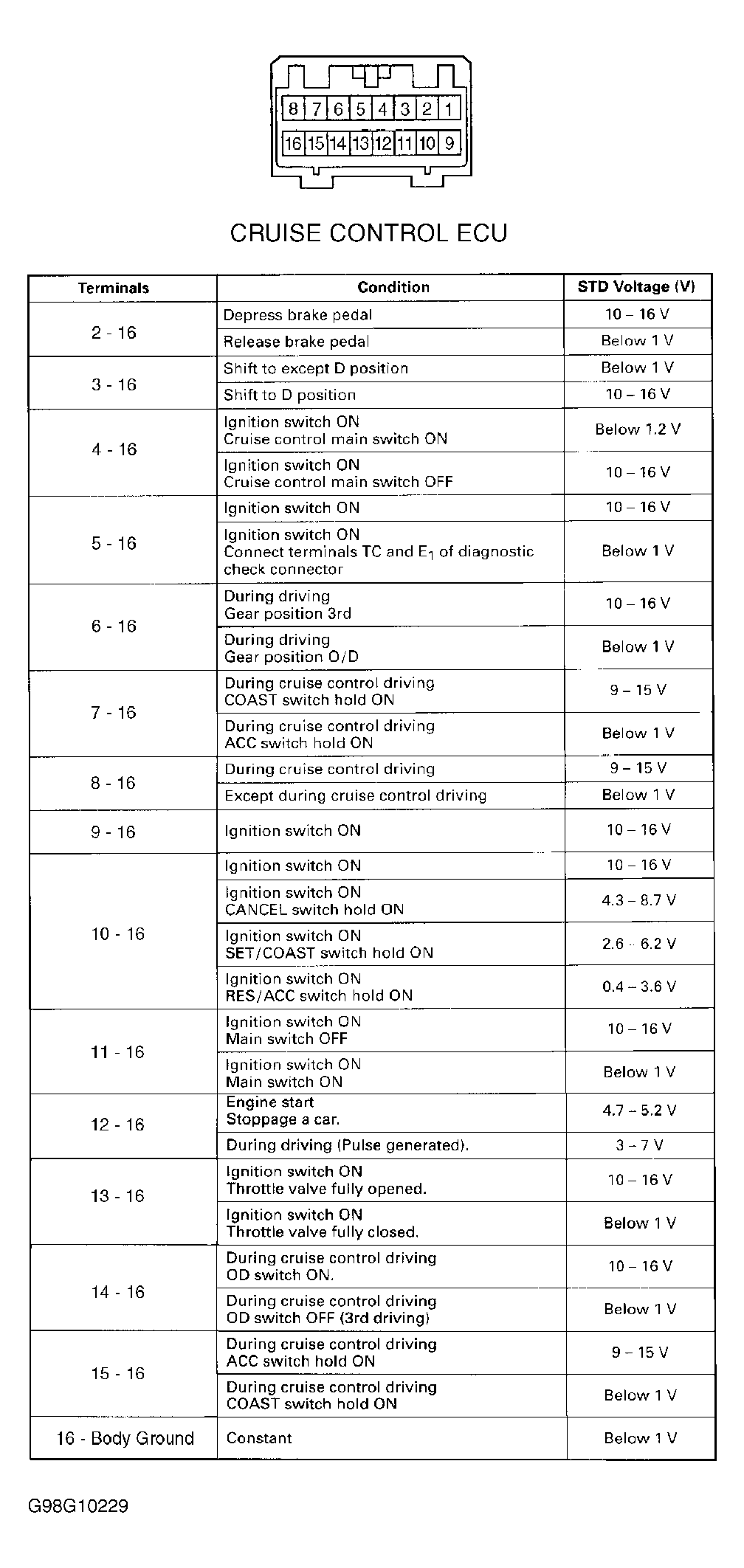

NOTE: To identify cruise control ECU connector terminals, see Figure. To help identify all other cruise control related connector terminals and wire colors, see WIRING DIAGRAMS .
