Instrument Panel Junction Block: RAV4

With all harness connectors attached at instrument panel junction block, connect positive and negative leads from voltmeter to specified connector and terminals. See Fig 1 and Fig 2 . See INSTRUMENT PANEL JUNCTION BLOCK TERMINAL IDENTIFICATION (RAV4) .
Set selected door lock switch to UNLOCK position. Measure voltage between specified terminals. See INSTRUMENT PANEL JUNCTION BLOCK TERMINAL IDENTIFICATION (RAV4) table. Voltage should rise from zero to battery voltage for approximately 0.2 seconds.
Reverse voltmeter leads and set selected door lock switch to LOCK position. Voltage should rise from zero to battery voltage for approximately 0.2 seconds. If operation is not as specified, replace instrument panel junction block.

INSTRUMENT PANEL JUNCTION BLOCK TERMINAL IDENTIFICATION (RAV4)

Harness Connector

Positive Terminal No.

Negative Terminal No.

Switch Position

Integration Relay Socket ⁽¹⁾

Driver's Door UNLOCK

Integration Relay Socket ⁽¹⁾

Driver's Door LOCK

Instrument Panel Junction Box 1C ⁽²⁾

Passenger's Front Door UNLOCK

Instrument Panel Junction Box 1C ⁽²⁾

Passenger's Door LOCK

Instrument Panel Junction Box 1D ⁽²⁾

Back Door UNLOCK

Instrument Panel Junction Box 1D ⁽²⁾

Back Door LOCK

⁽¹⁾	See Fig 1.

⁽²⁾	See Fig 2.

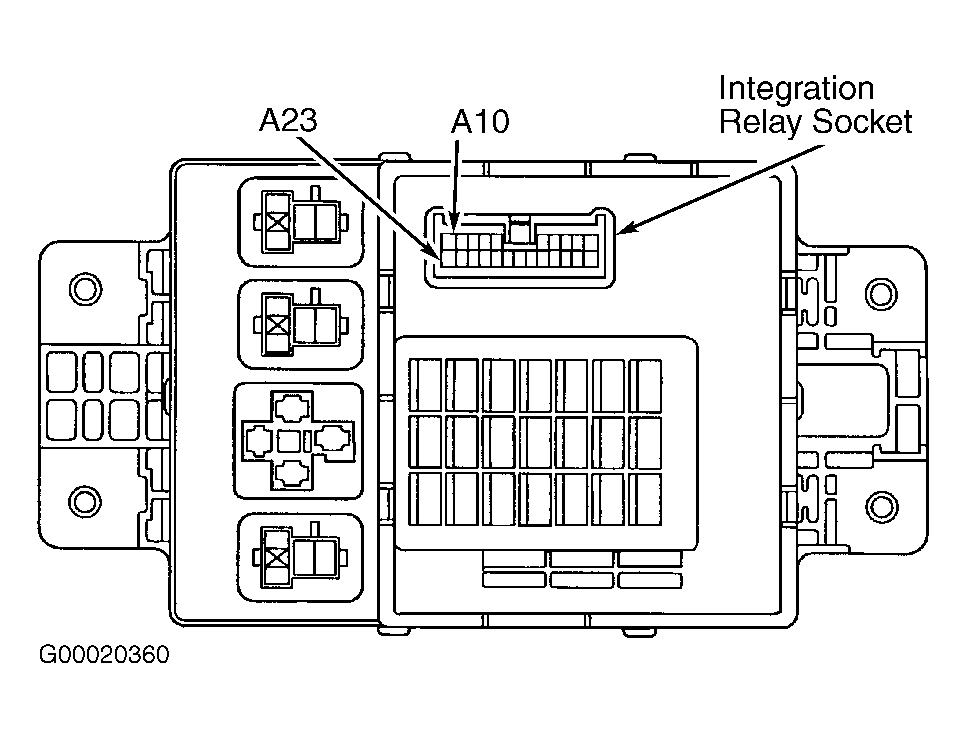

Fig 1: Identifying Integration Relay Socket Terminals (RAV4)

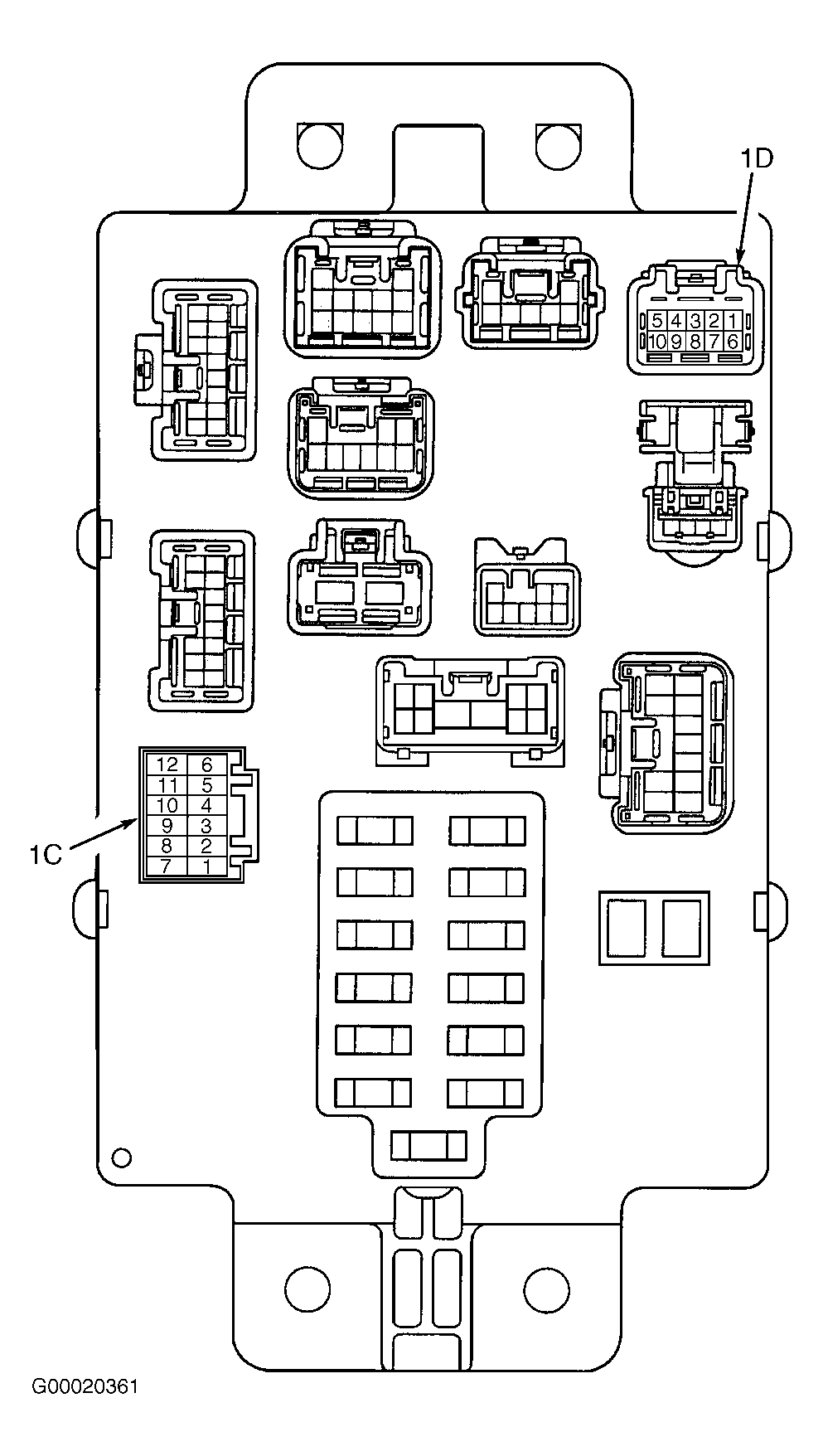

Fig 2: Identifying Instrument Panel Junction Box Harness Connector 1C & 1D Terminals (RAV4)
