Connecting Rods Specifications
WARNING: This page is about a different car, the 2000 Toyota Tundra, 2000 Toyota Land Cruiser, 2000 Lexus LX 470, 1999 Toyota Land Cruiser, and 1999 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTING RODS
| Application | In. (mm) | ||||
|---|---|---|---|---|---|
| Bore Diameter | |||||
| Bushing Pin Bore | .8663-.8667 (22.005-22.014) | ||||

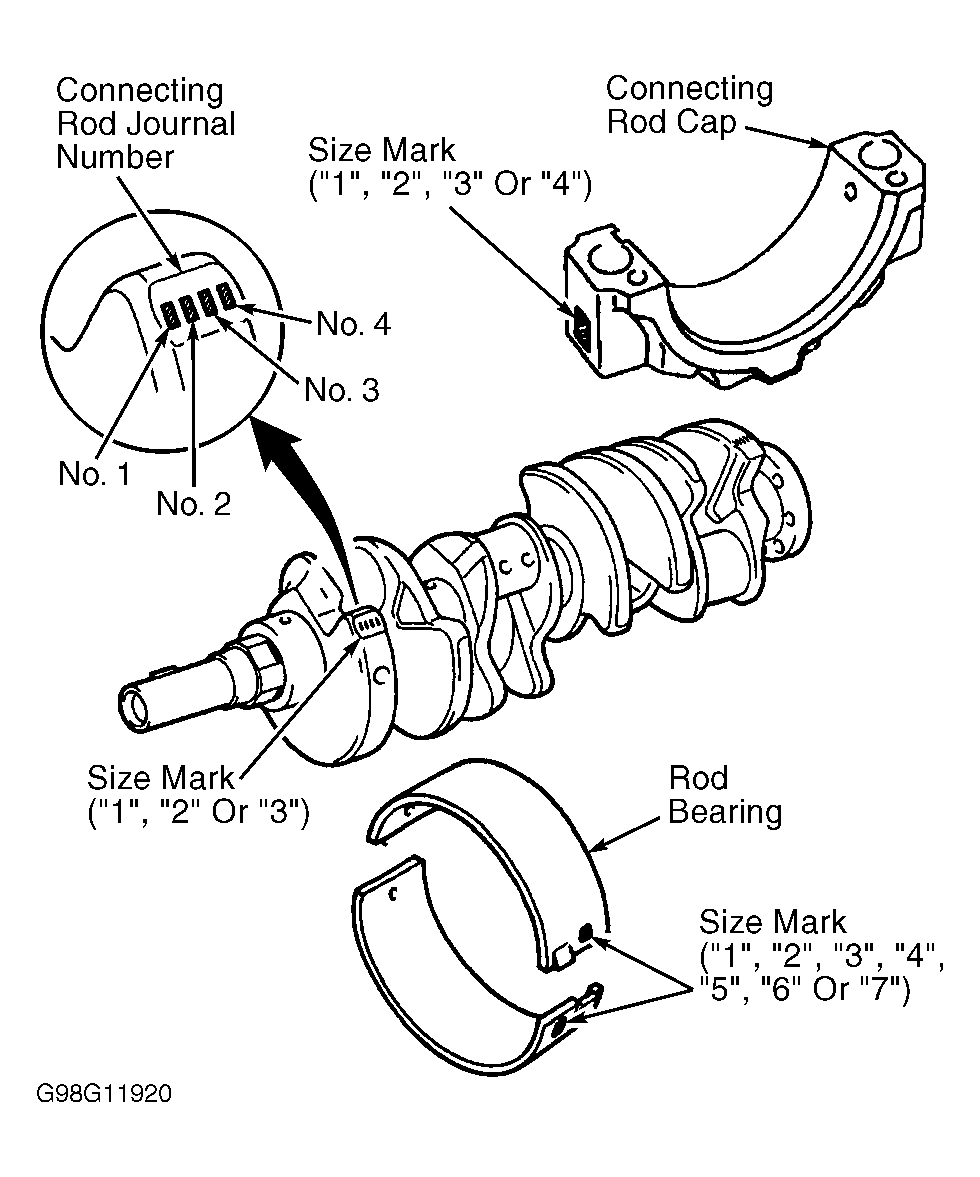

| Crankpin Bore (1) | |||||
| Size Mark "1" | 2.1654-2.1656 (55.000-55.006) | ||||
| Size Mark "2" | 2.1656-2.1658 (55.006-55.012) | ||||
| Size Mark "3" | 2.1658-2.1661 (55.012-55.018) | ||||
| Size Mark "4" | 2.1661-2.1663 (55.018-55.024) | ||||
| Maximum Bend | .0020 Per 3.94 (.050 Per 100.0) | ||||
| Maximum Twist | .0059 Per 3.94 (.150 Per 100.0) | ||||
| Side Play | |||||
| Standard | .0063-.0114 (.160-.290) | ||||
| Wear Limit | .0138 (.350) | ||||
|
|||||
