Cooling System (Mechanical): Radiator: Components

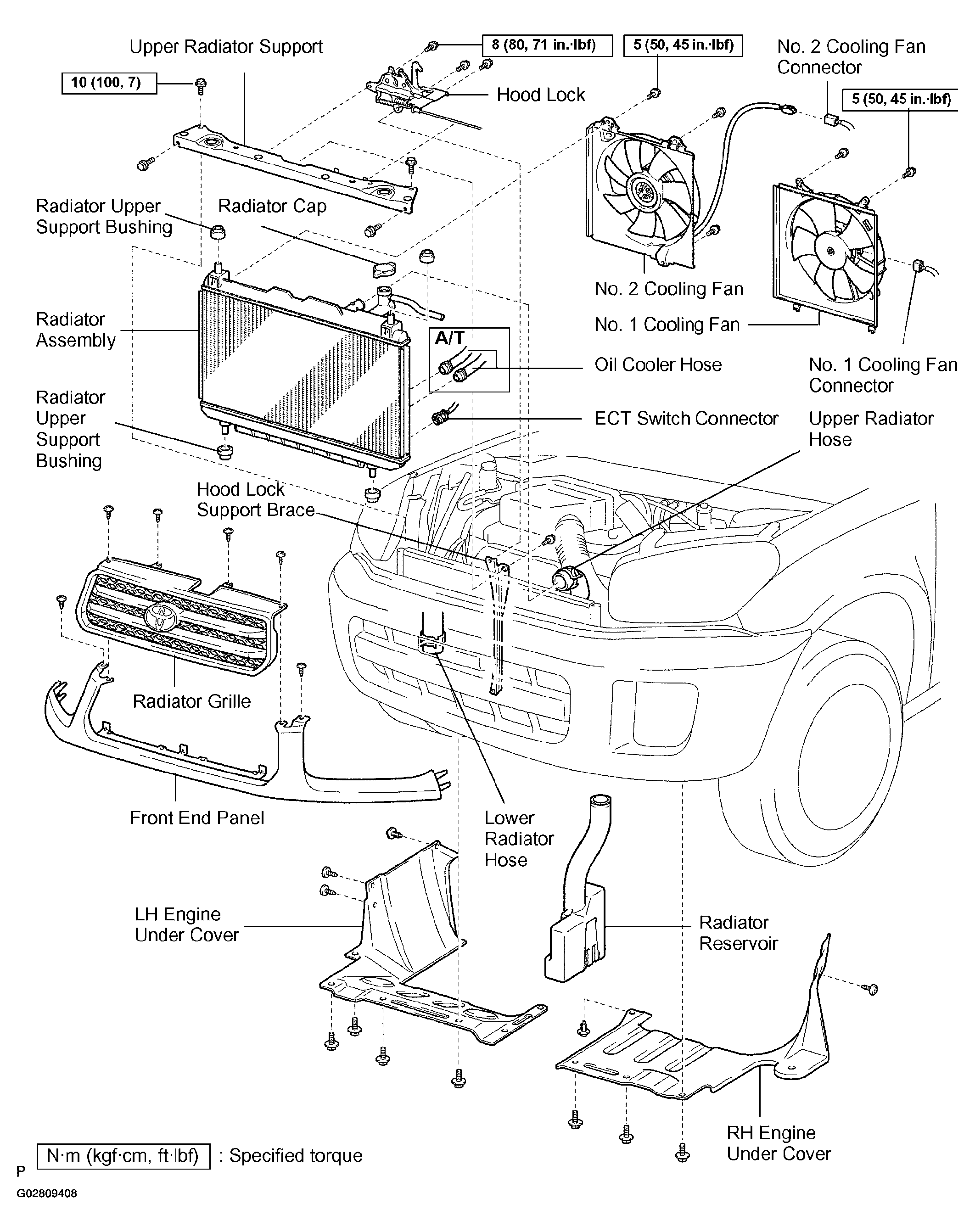

Fig 1: Identifying Components For Radiator Removal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

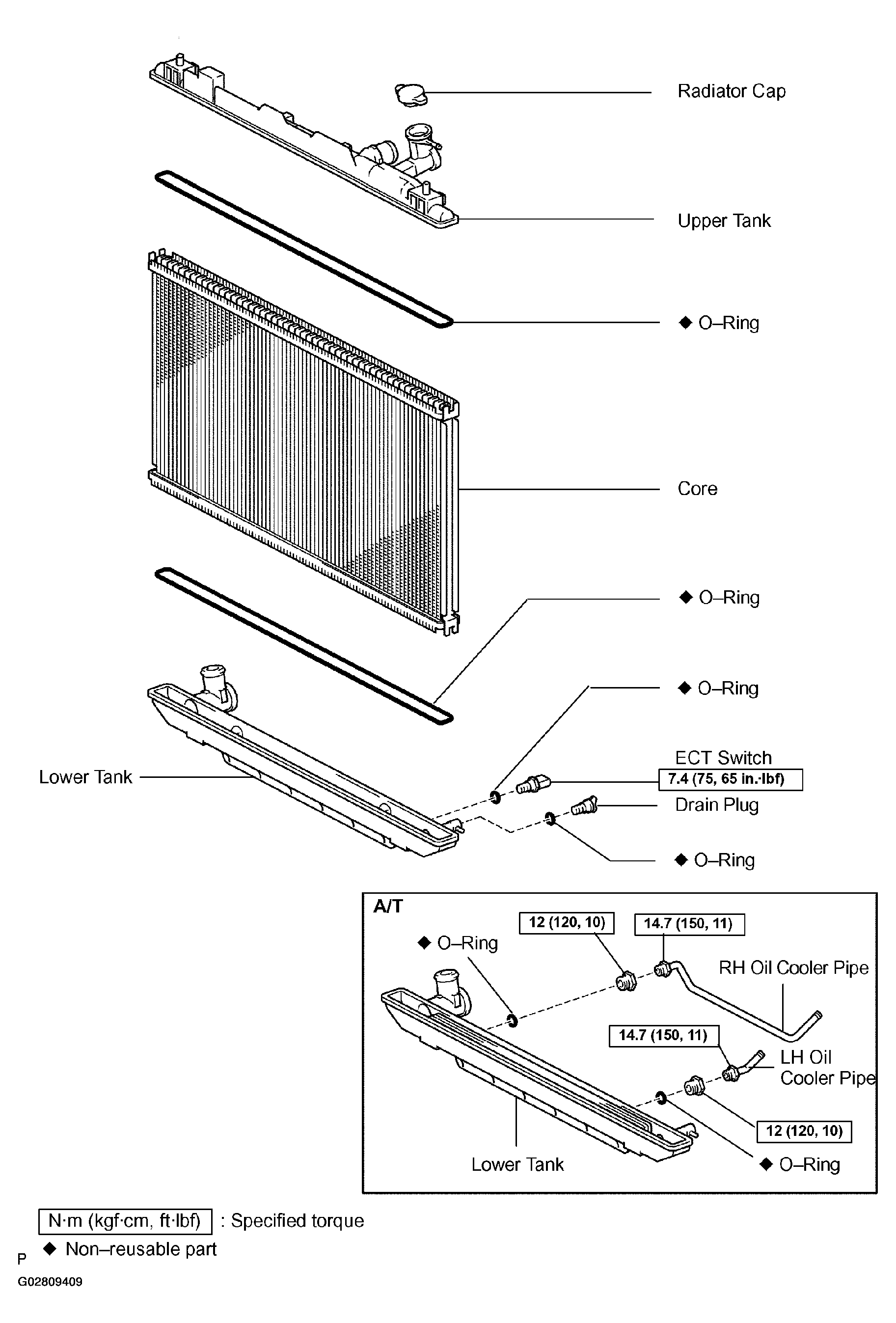

Fig 2: Exploded View Of Radiator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
