Combination Meter: Circuit

WARNING: This page is about a different car, the 2002 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

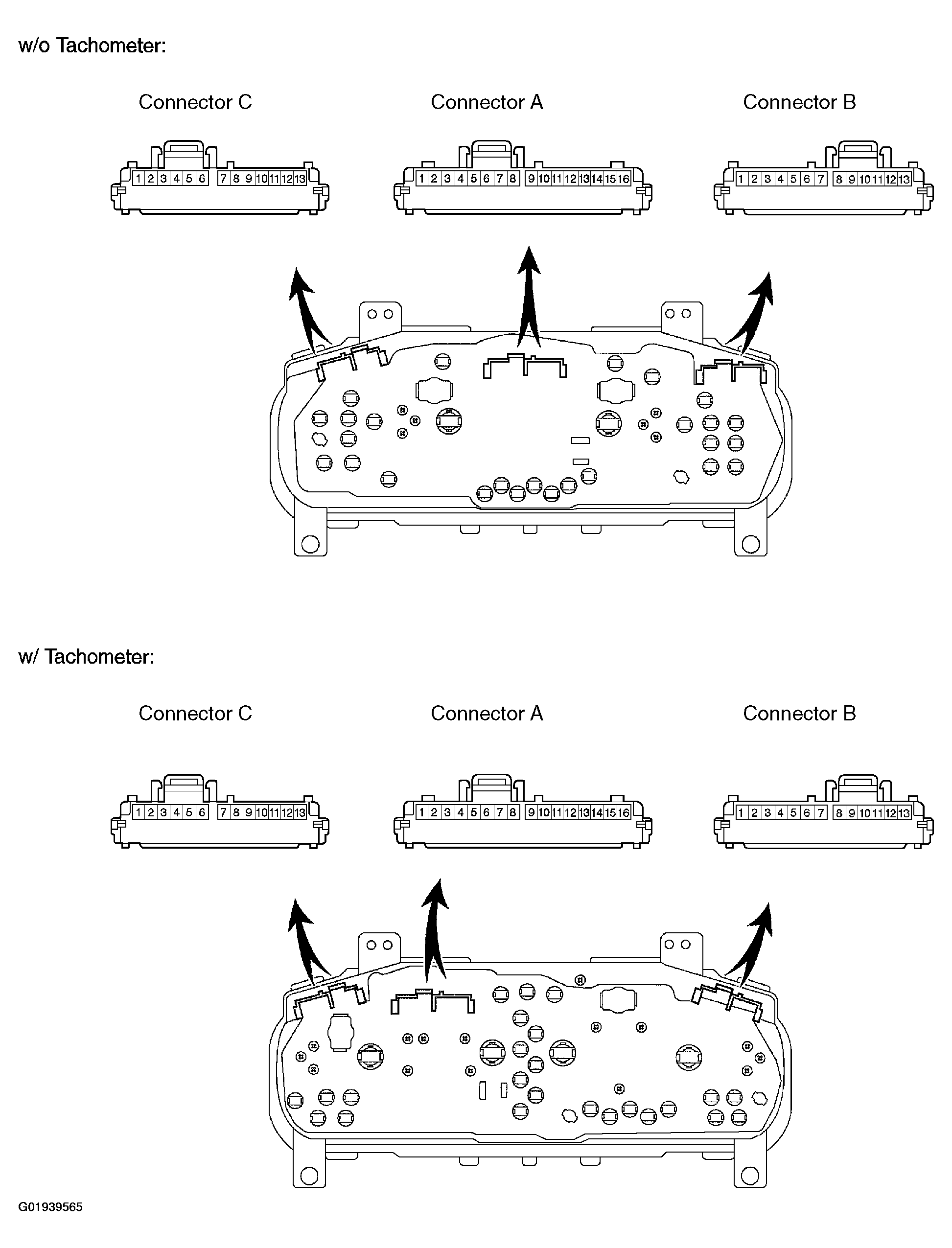

Fig 1: Identifying Combination Meter Connectors A-C

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

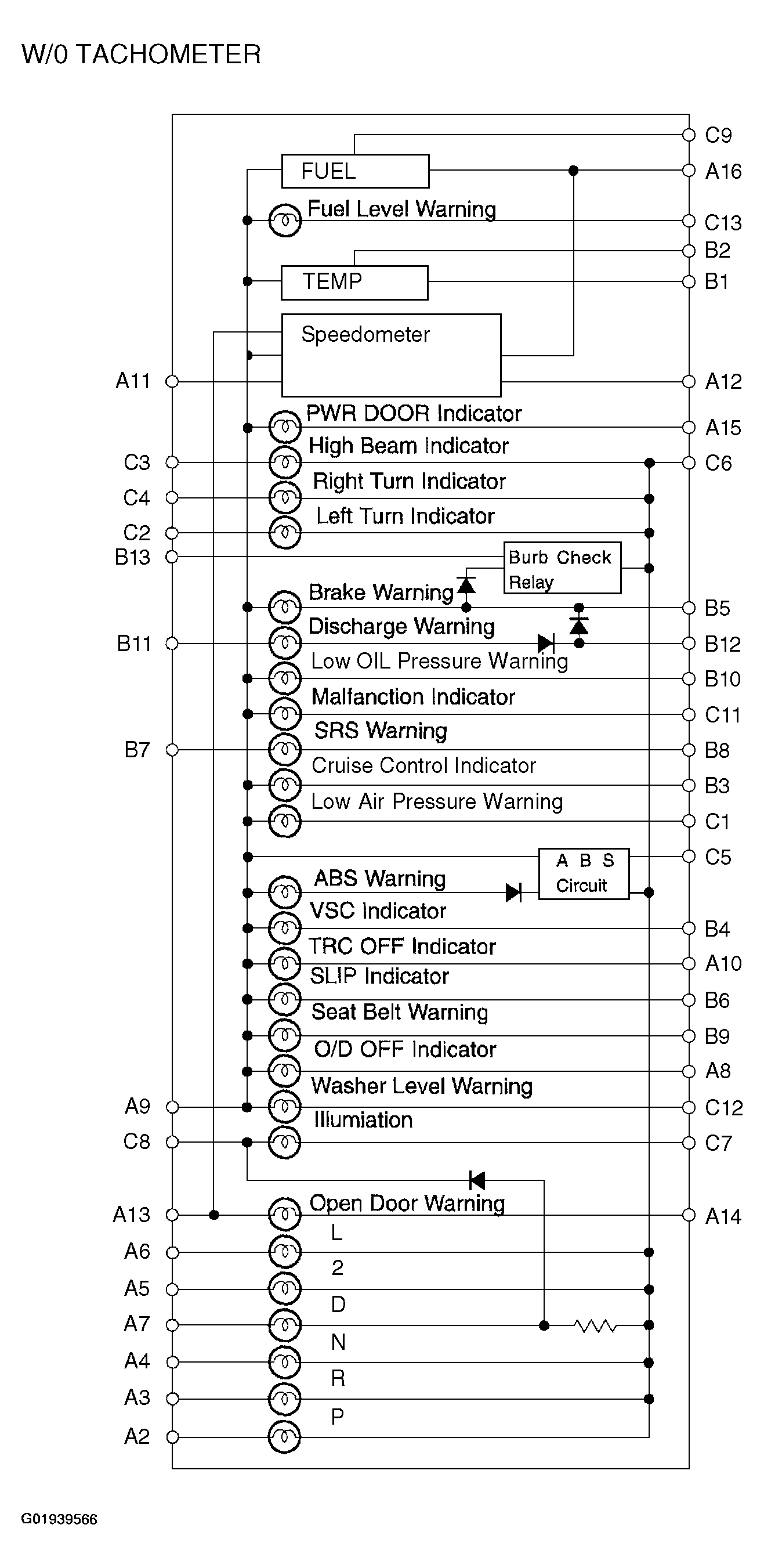

Fig 2: Combination Meter Circuit Schematic (W/O Tachometer)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

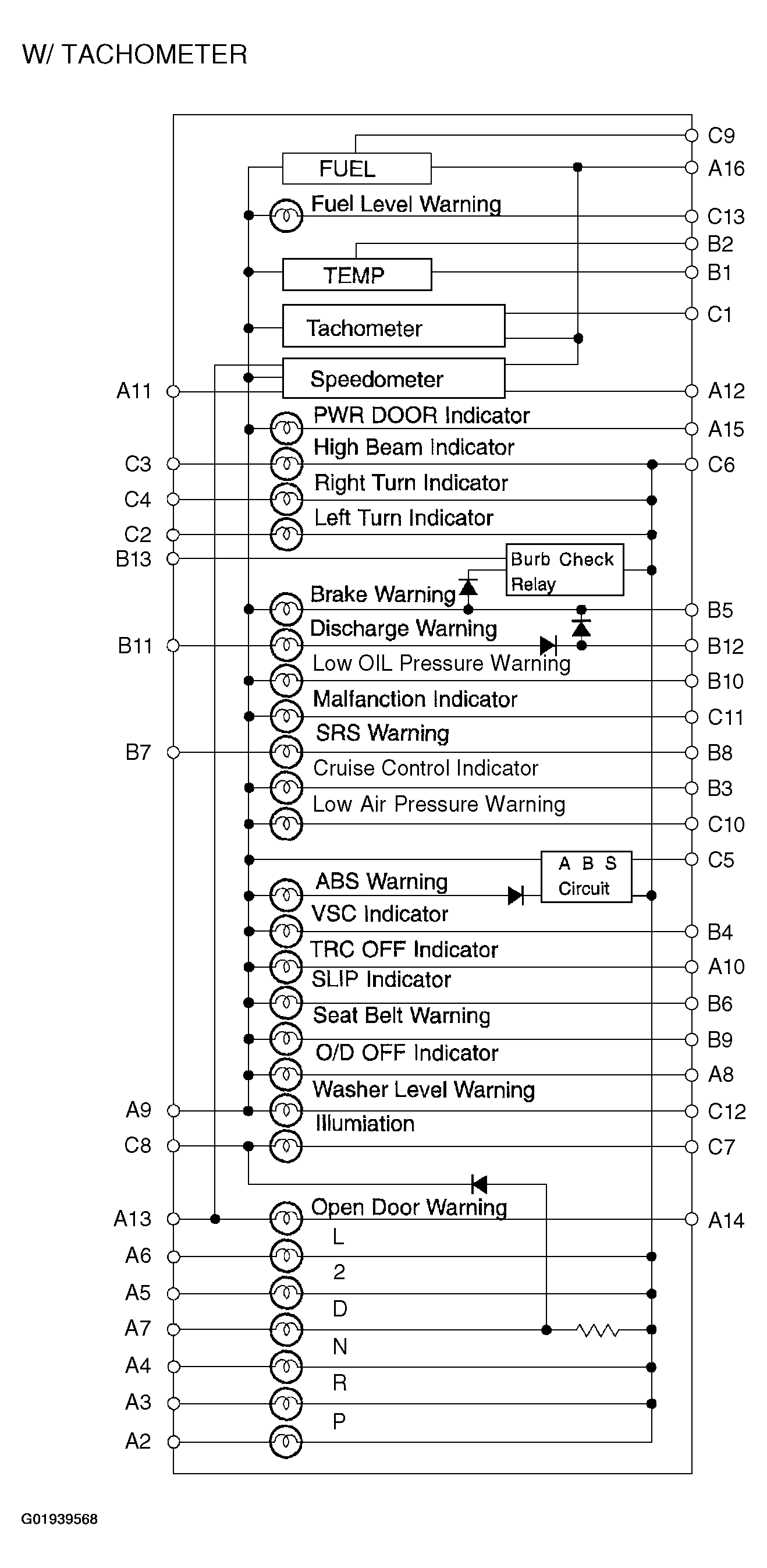

Fig 3: Combination Meter Circuit Schematic (W/Tachometer)

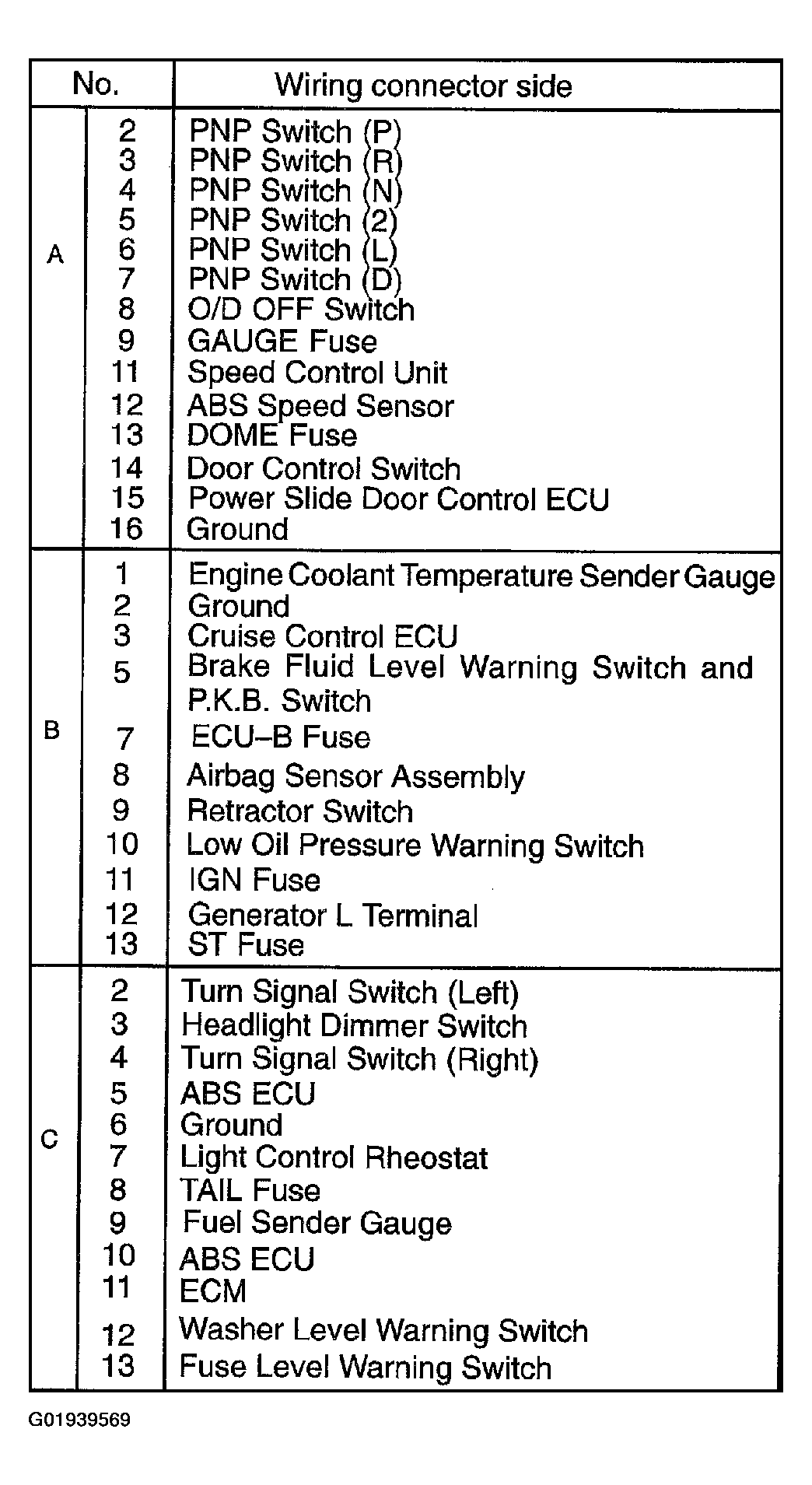

Fig 4: Combination Meter Circuit Schematic Legend (Connector Terminals A-C With Or W/O Tachometer)
