Diagnostic Tests: Notes

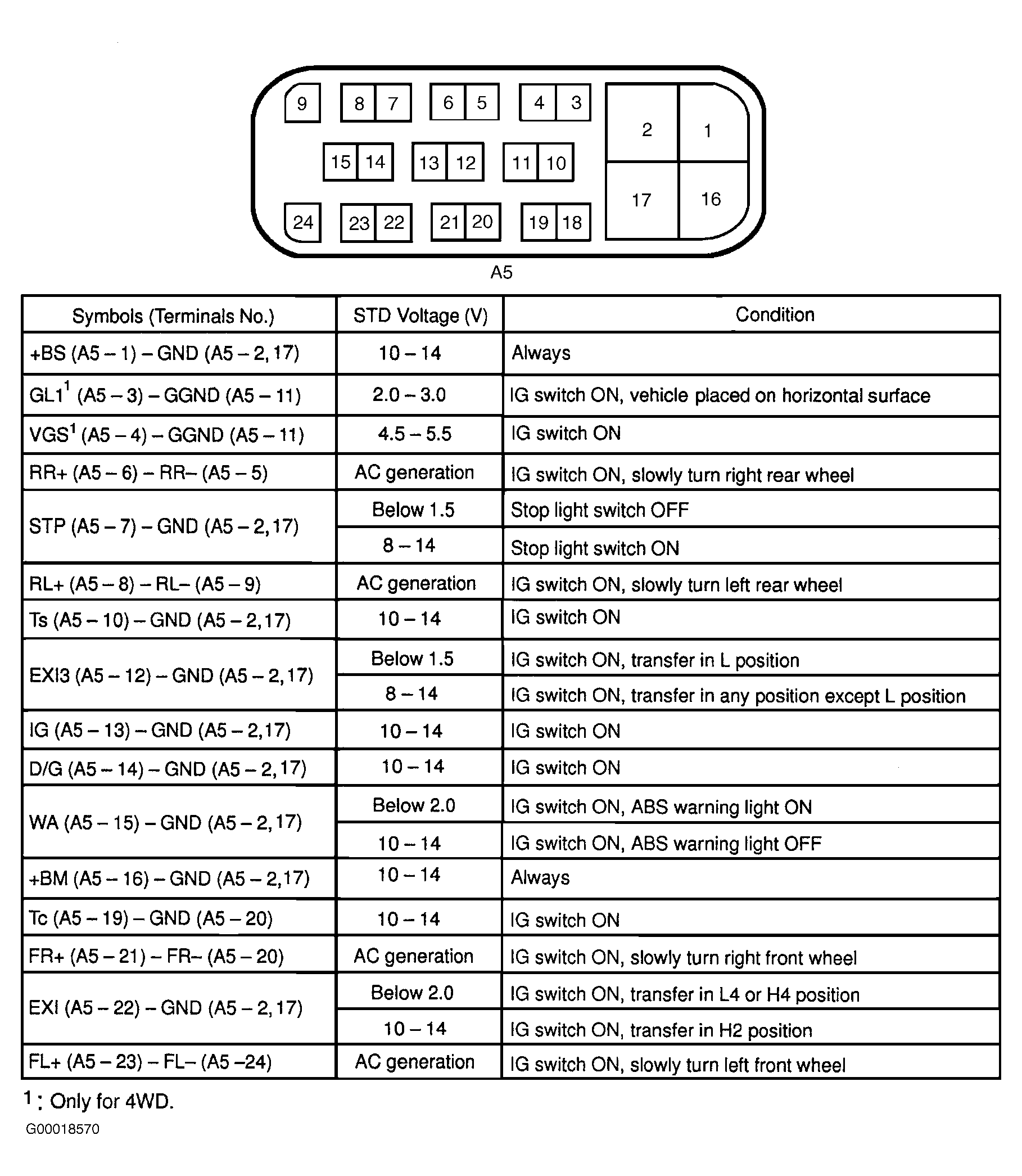

NOTE: For identification of ABS ECU terminals and circuits, see Figure. Also see WIRING DIAGRAMS .
