Back Door Control System - Diagnostics
›
Parts Location
Parts Location

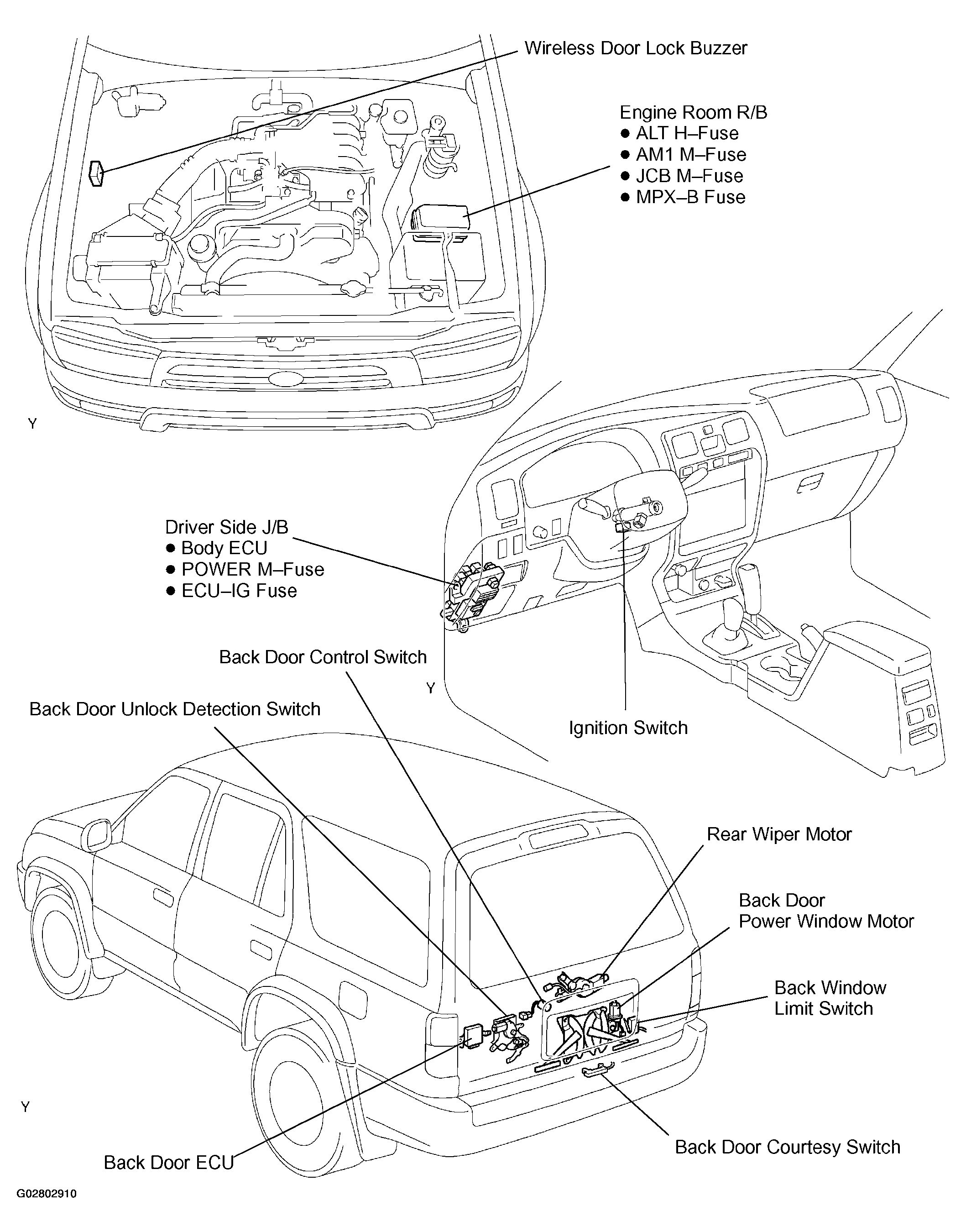

Fig 1: Identifying Back Door Control System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
