Description & Operation: 4RUNNER

Both front seats slide forward and backward, and seat backs recline forward and backward. Rear of driver's seat tilts up and down, and is also equipped with an adjustable lumbar (lower back) support. See Fig 8. Power seat switch controls power and ground circuits of power seat motors. Power (30-amp) fuse in driver side junction block protects circuit.

Some models are also equipped with optional heated front seats. Heating elements are located in seat cushion and seat back.

Fig 1: Locating Power Seat Components (Avalon)

G00020320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

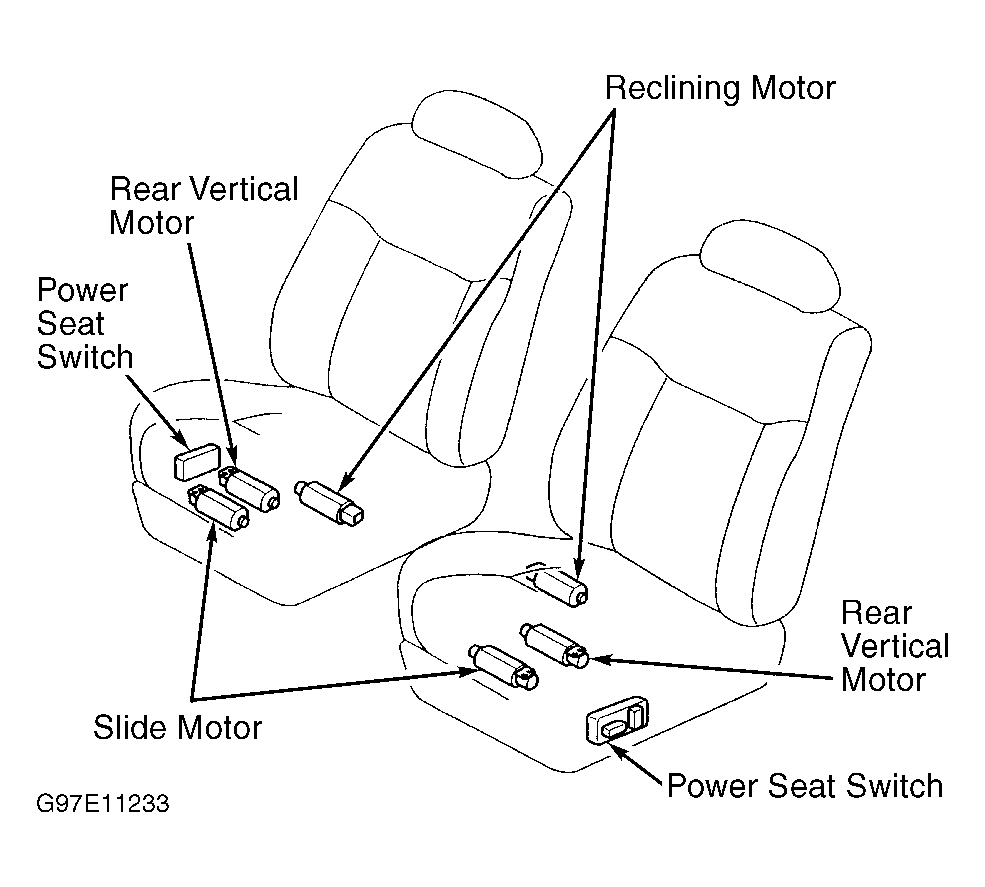

Fig 2: Locating Power Seat Components (Camry)

G97E11233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

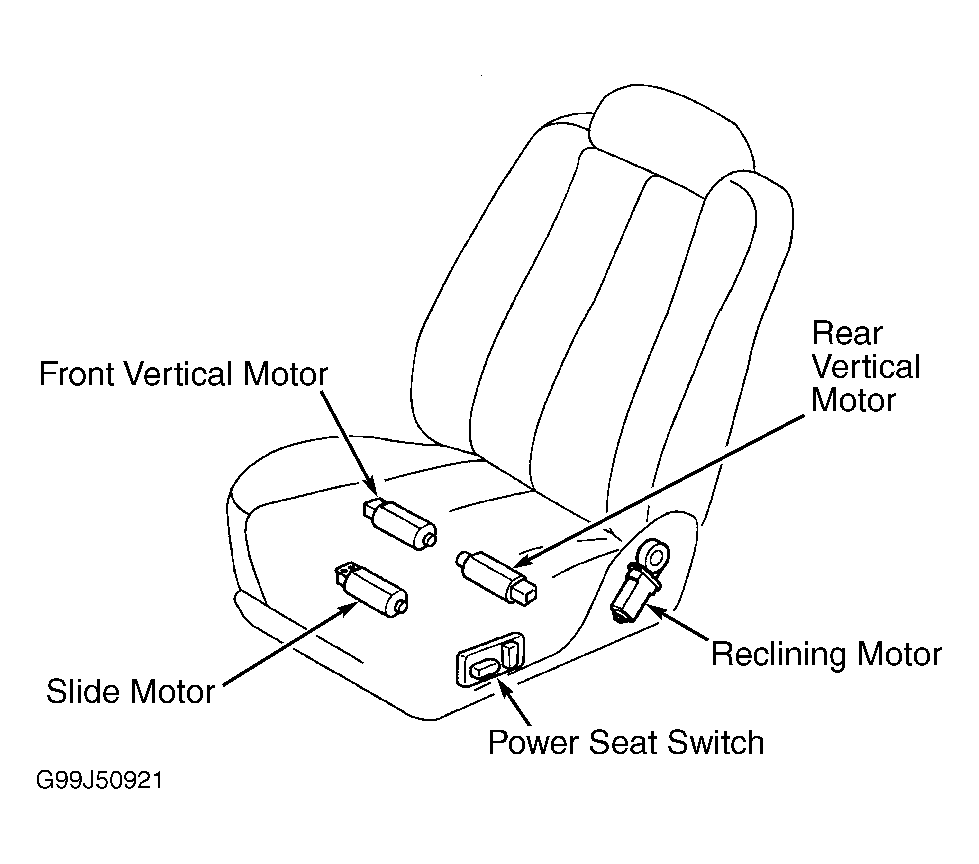

Fig 3: Locating Power Seat Components (Camry Solara)

G99J50921

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

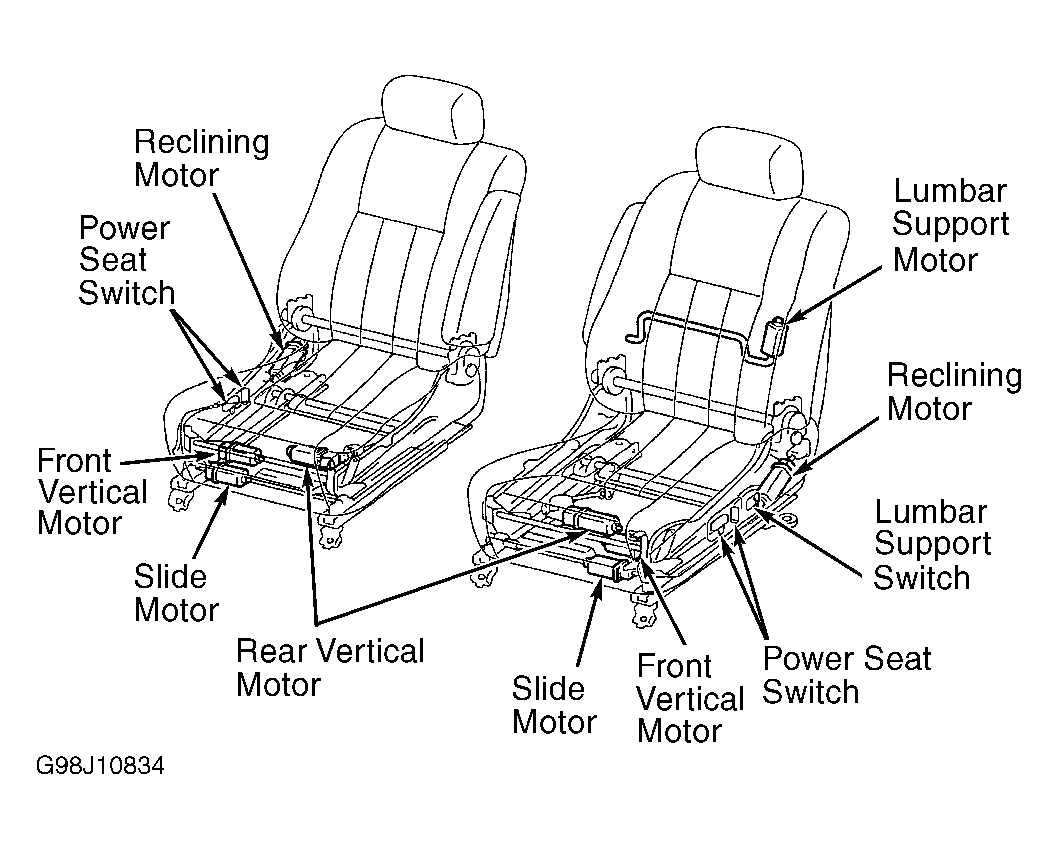

Fig 4: Locating Power Seat Components (Land Cruiser)

G98J10834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

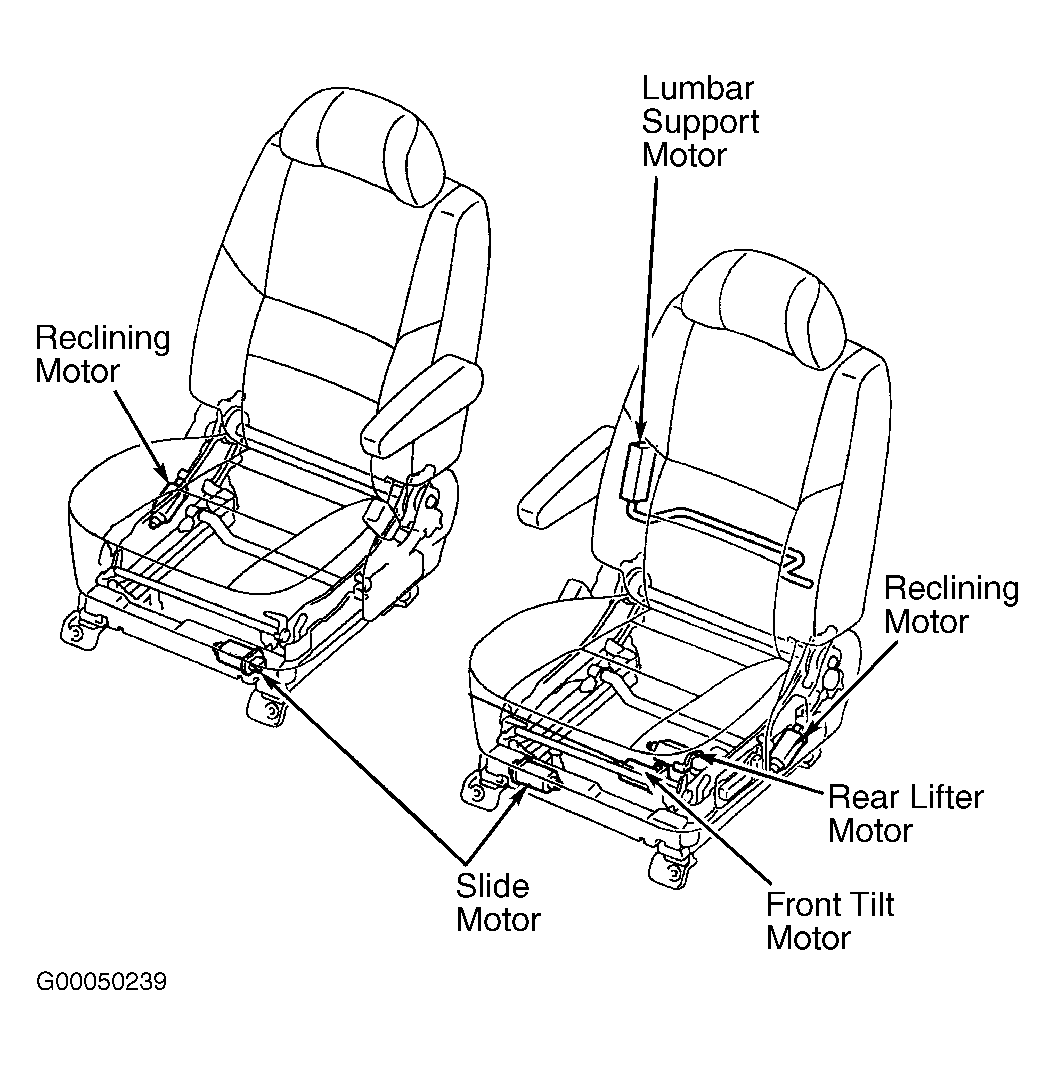

Fig 5: Locating Power Seat Components (Sequoia)

G00050239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

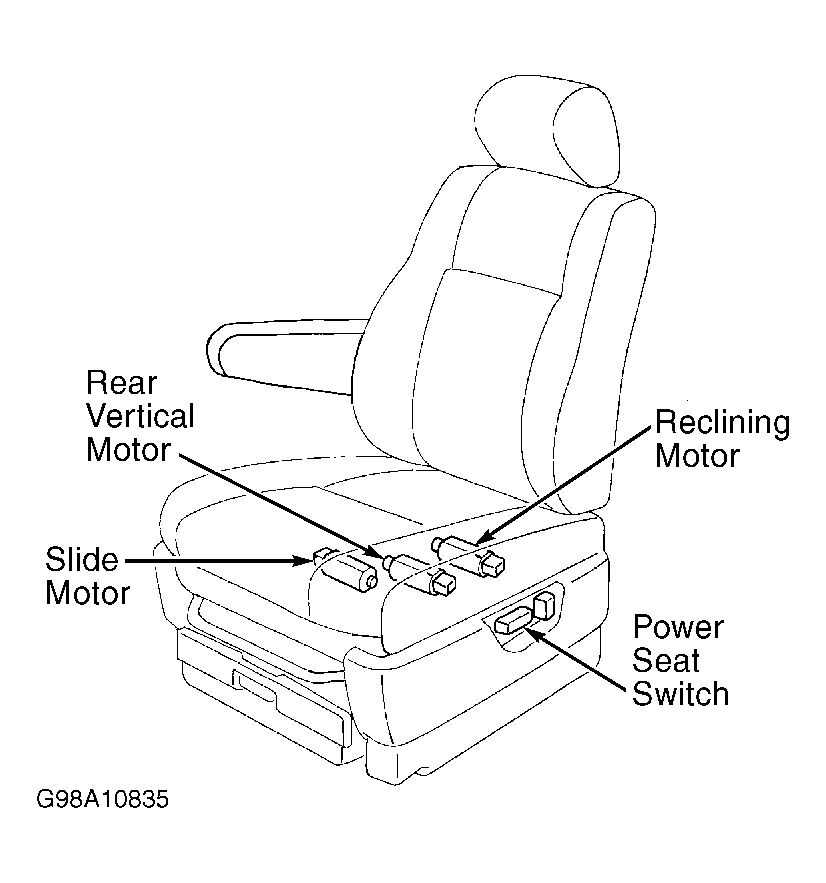

Fig 6: Locating Power Seat Components (Sienna)

G98A10835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

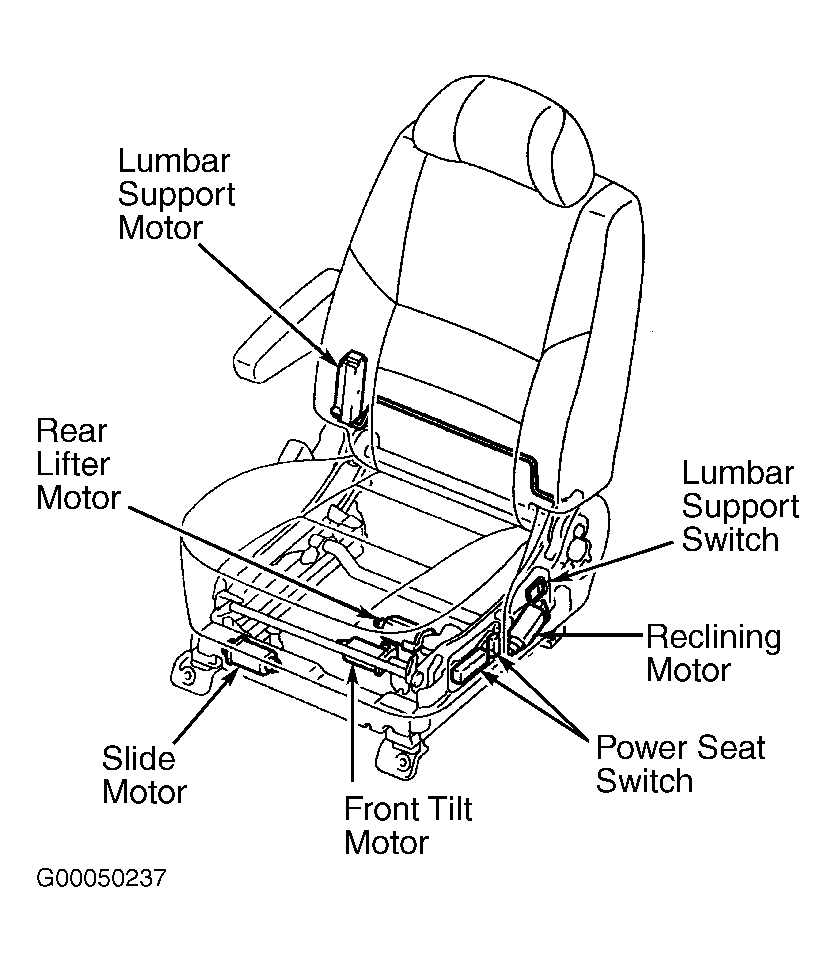

Fig 7: Locating Power Seat Components (Tundra)

G00050237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

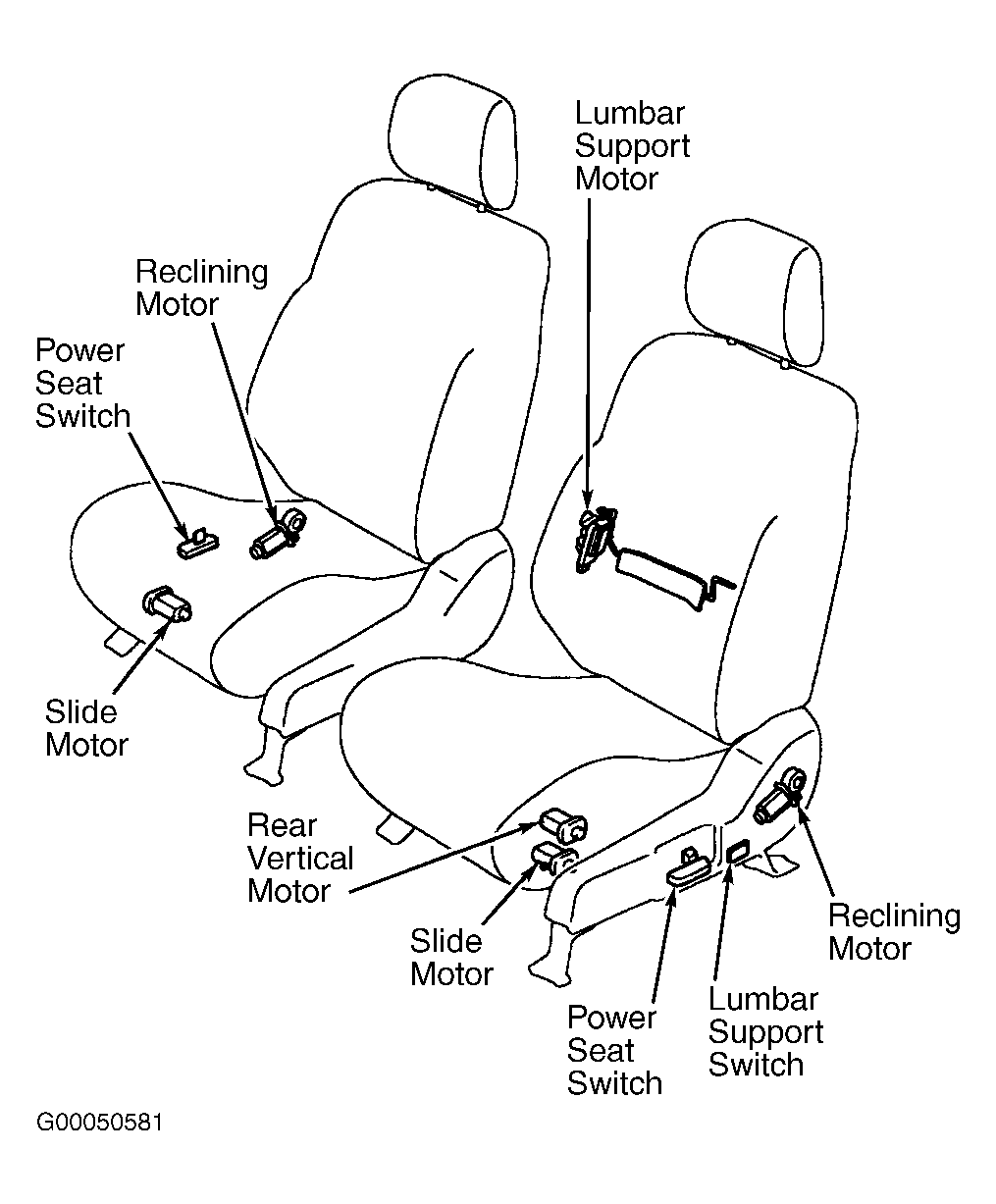

Fig 8: Locating Power Seat Components (4Runner Shown; Highlander Similar)

G00050581

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
