Trouble Shooting: RAV4

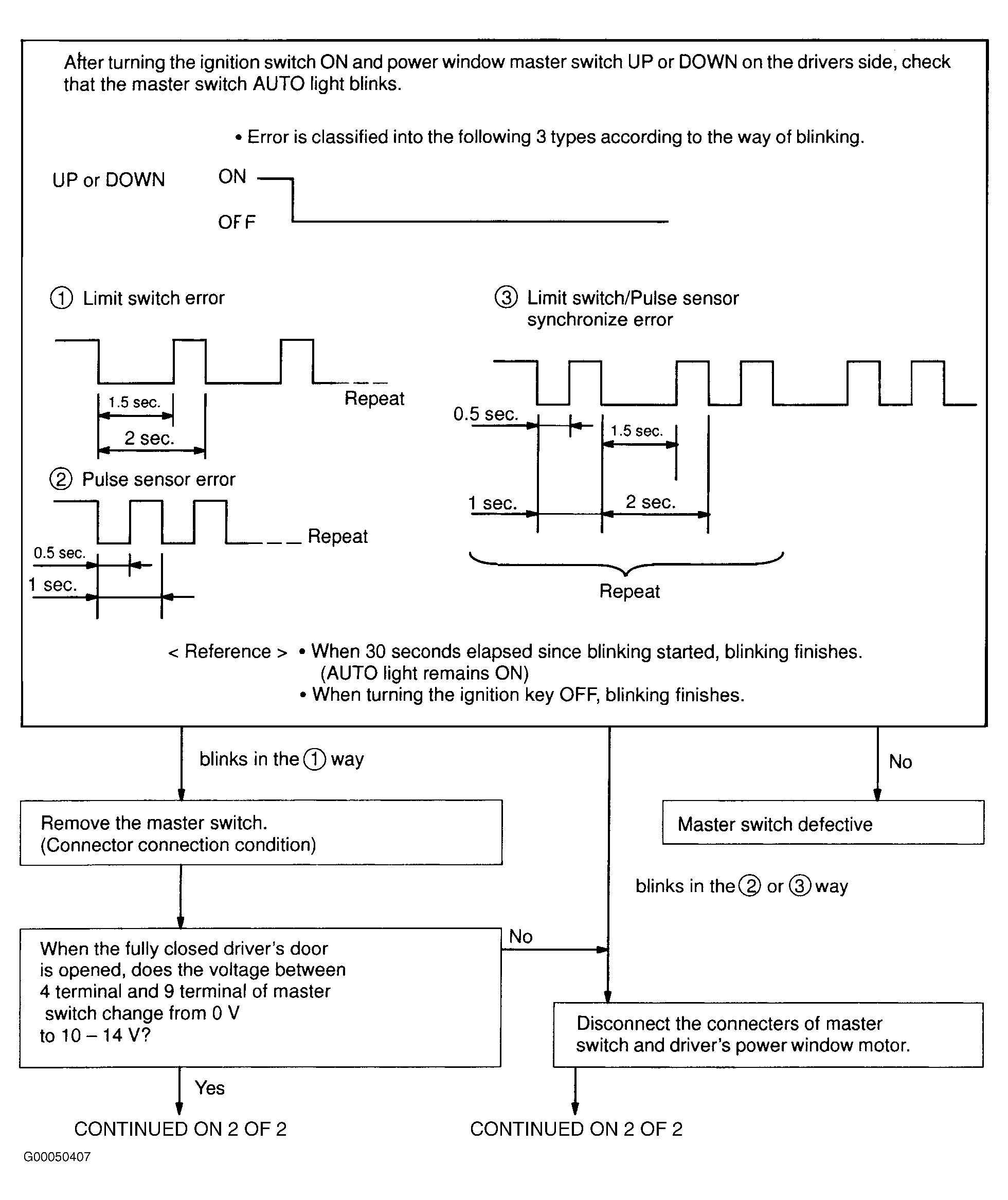

Fig 1: Test 1: One Touch Power Window Does Not Move Up & Down (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

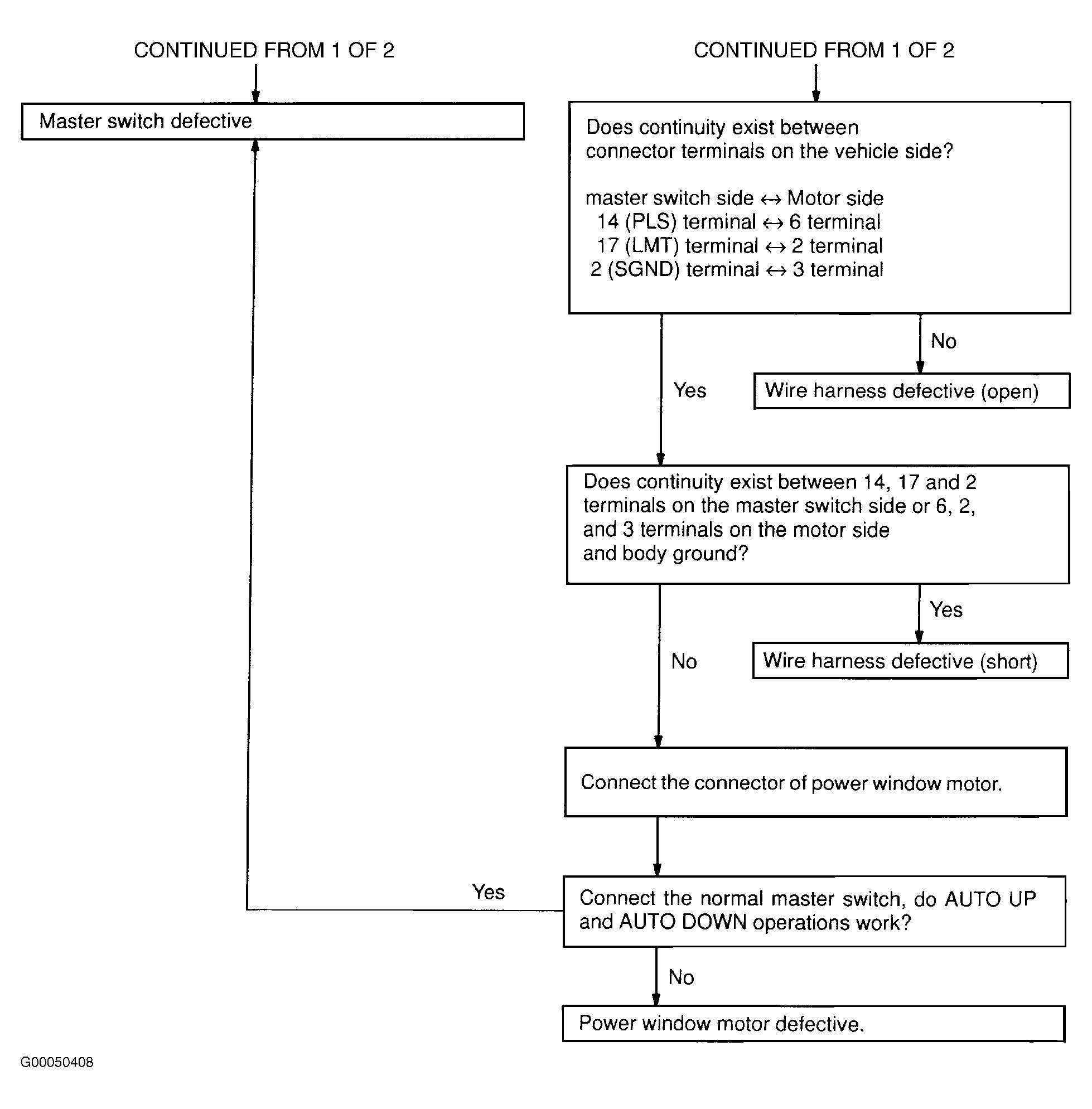

Fig 2: Test 1: One Touch Power Window Does Not Move Up & Down (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

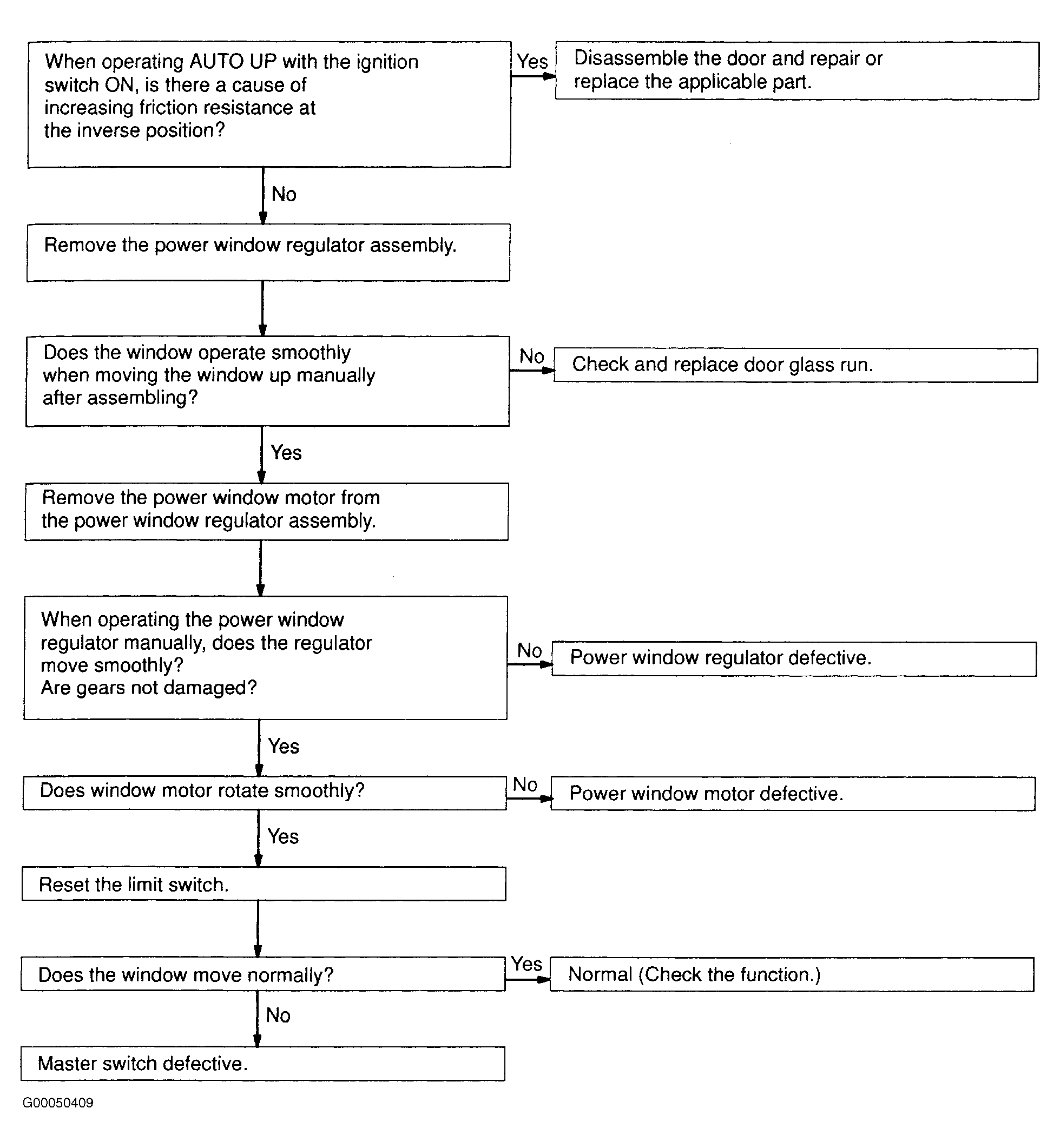

Fig 3: Test 2: Power Window Moves Down During AUTO UP Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

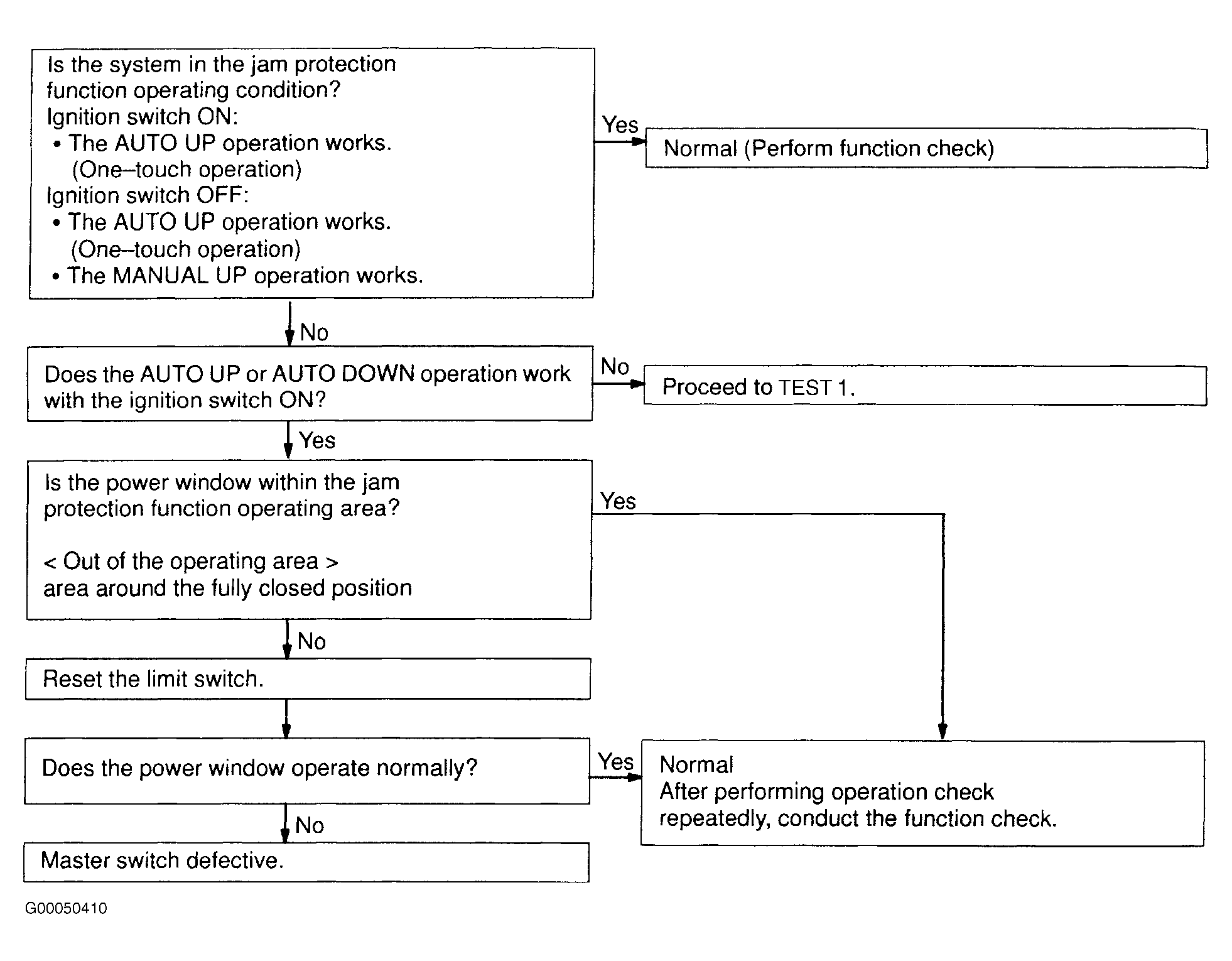

Fig 4: Test 3: DOWN Operation Does Not Function With Object Caught In Window
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
