Section 347 (Engine Cooling System): Radiator: Components

WARNING: This page is about a different car, the 2004 Toyota MR2, 2003 Toyota MR2, and 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

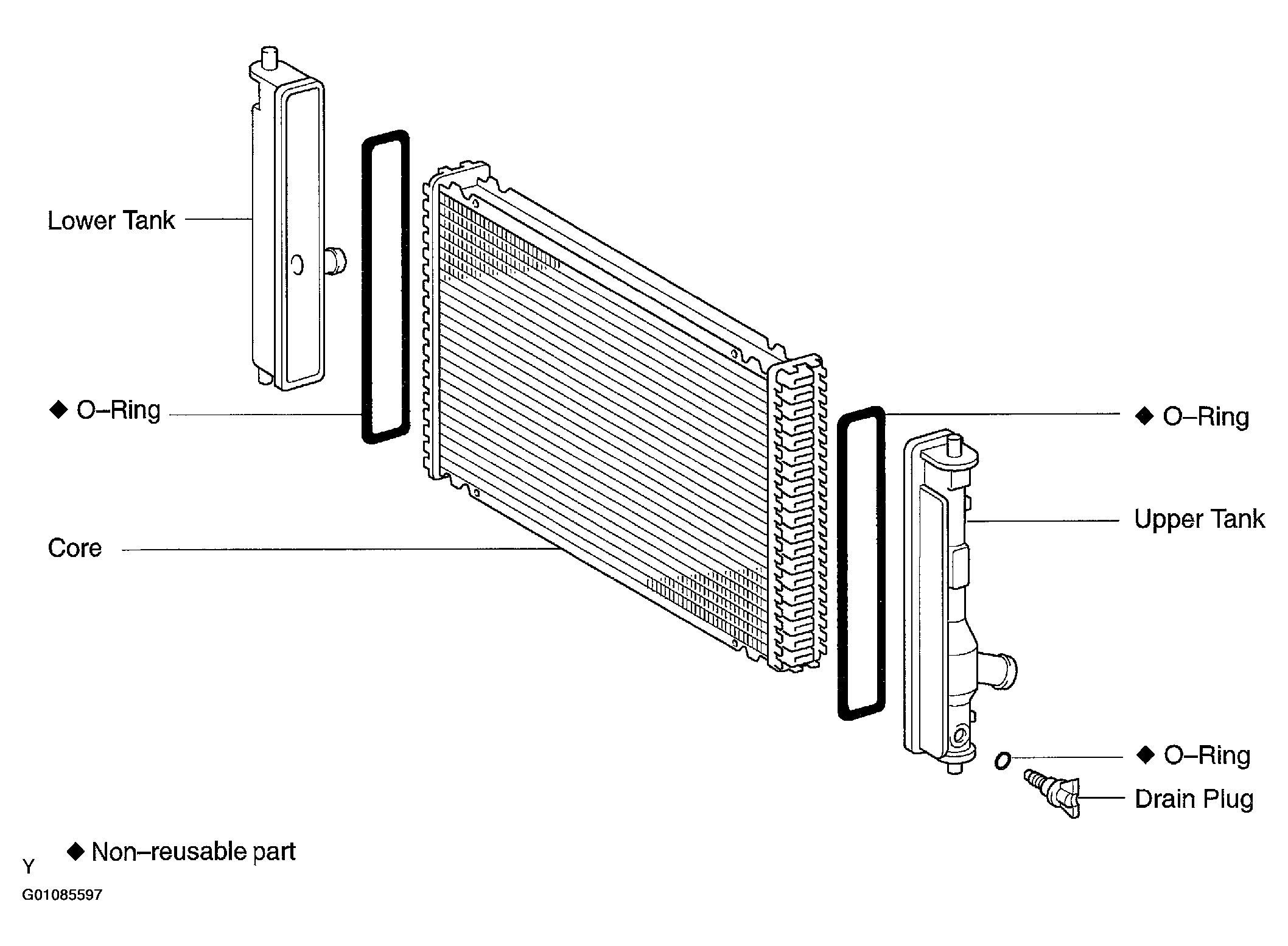

Fig 1: Displaying Radiator Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

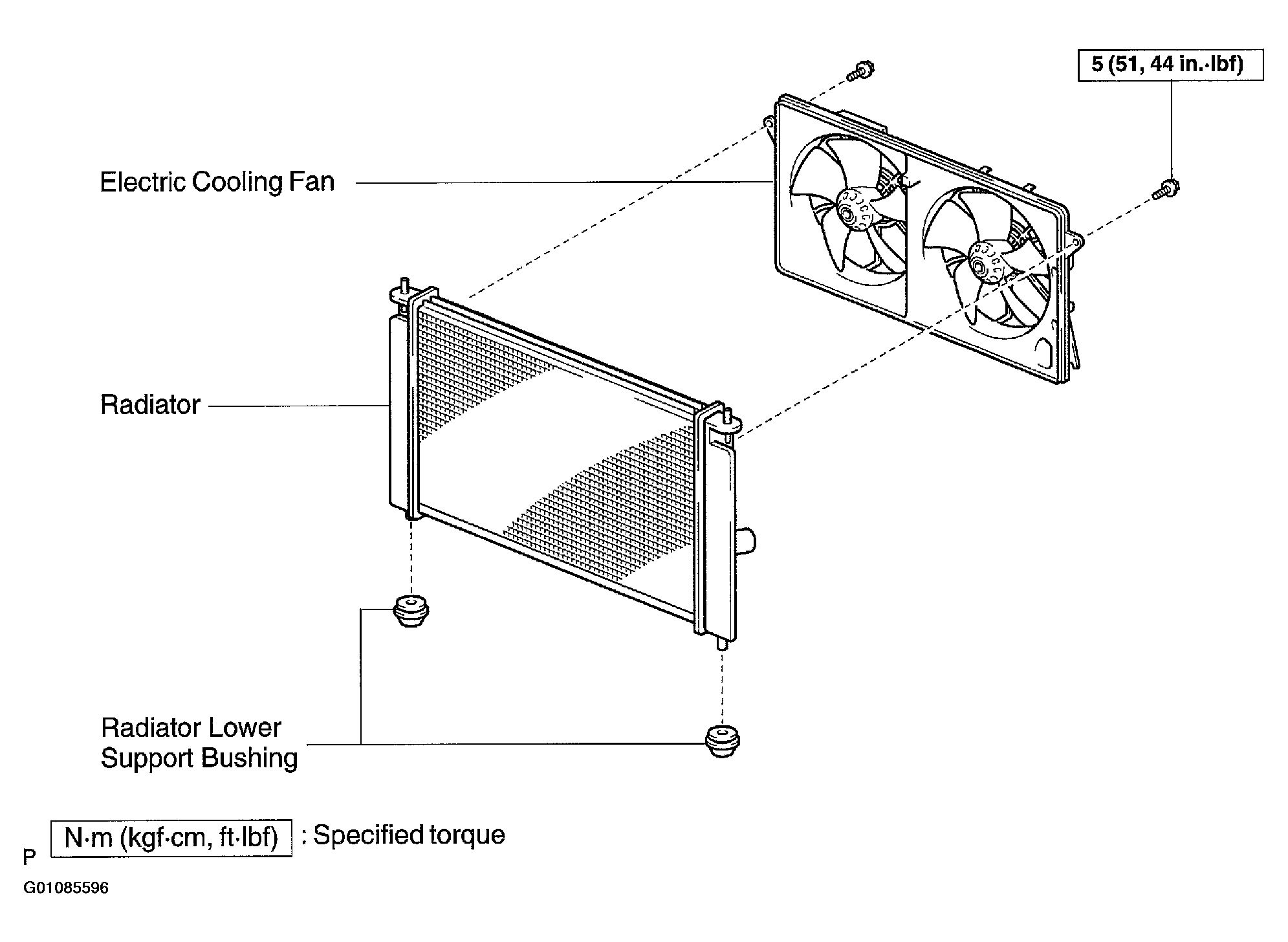

Fig 2: Displaying Radiator Components (2 Of 3)

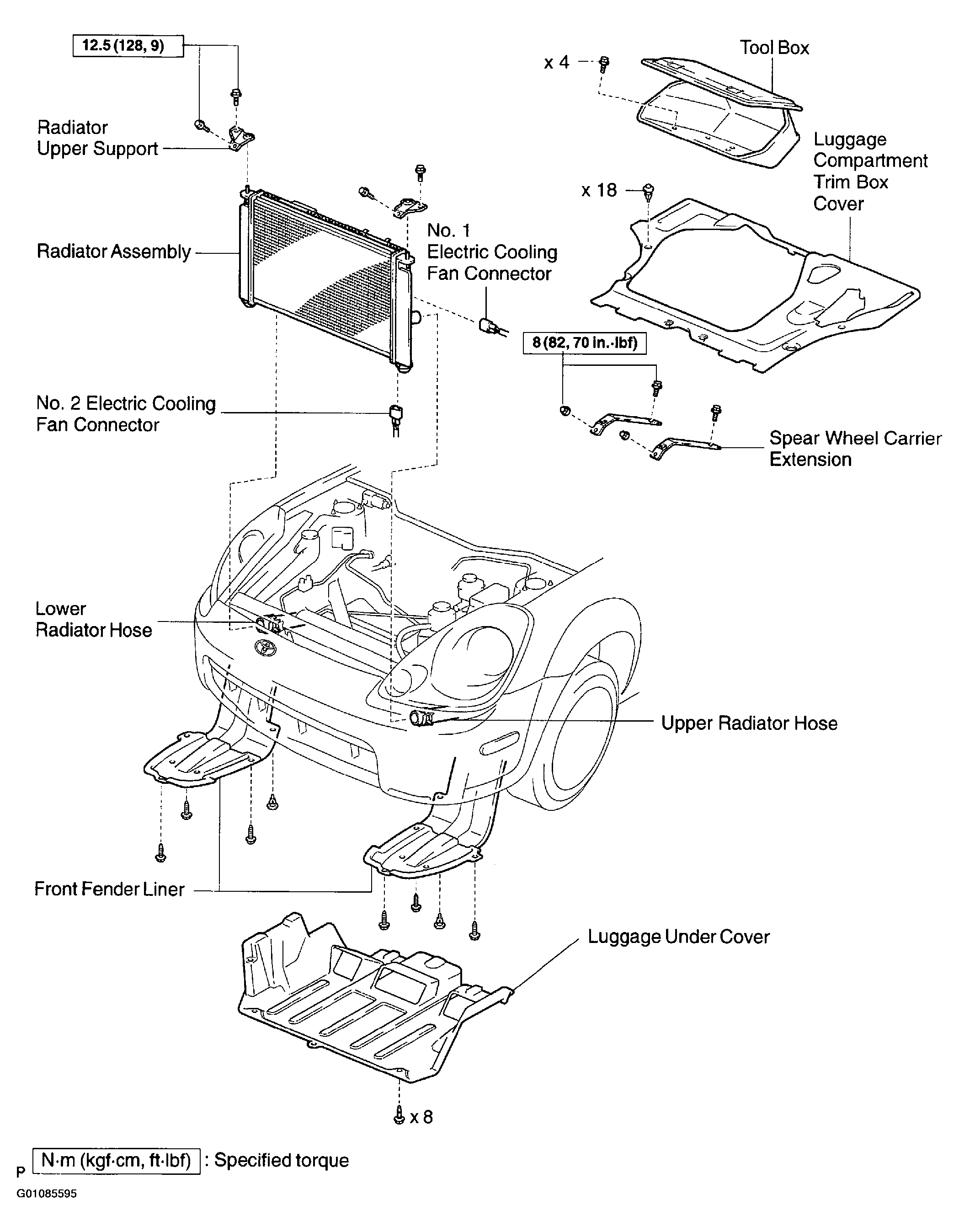

Fig 3: Displaying Radiator Components (3 Of 3)
