Section 347 (Engine Cooling System): Radiator: Installation

WARNING: This page is about a different car, the 2004 Toyota MR2, 2003 Toyota MR2, and 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

Install Electric Cooling Fan To Radiator
Install the electric cooling fan with the 2 bolts.
1. Torque:
2. 5 N.m (51 kgf.cm, 44 in.lbf)
Install Radiator Assembly
1. Install the 2 radiator lower support bushings.
2. Place the radiator assembly to the body.
3. Install the 2 radiator upper supports with the 4bolts.
  1. Torque:
  2. 12.5 N.m (128 kgf.cm, 9 ft.lbf)

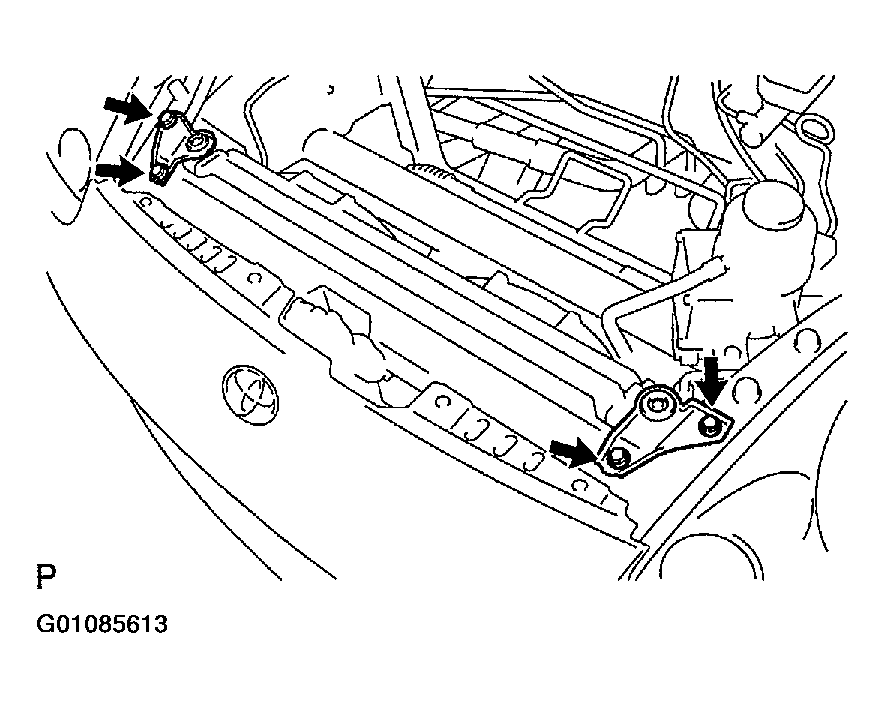

  Fig 1: Installing Radiator Upper Supports With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the 2 radiator hoses.
5. Connect the 2 electric cooling fan connectors.

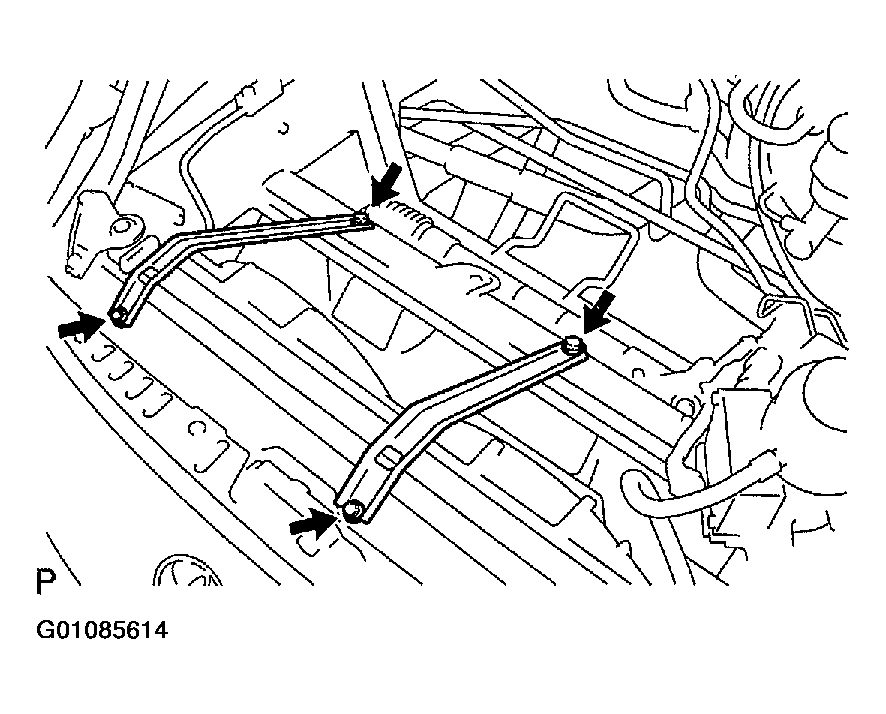

6. Install the 2 spear wheel carrier extensions with the 2 bolts and 2 nuts.
  1. Torque:
  2. 8 N.m (82 kgf.cm, 70 in.lbf)
Fill With Engine Coolant . See 2 under REMOVAL.
Install Luggage Compartment Trim Box Cover And Tool Box
Start Engine And Check For Leak
Recheck Engine Coolant Level
