Steering Column: Components

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

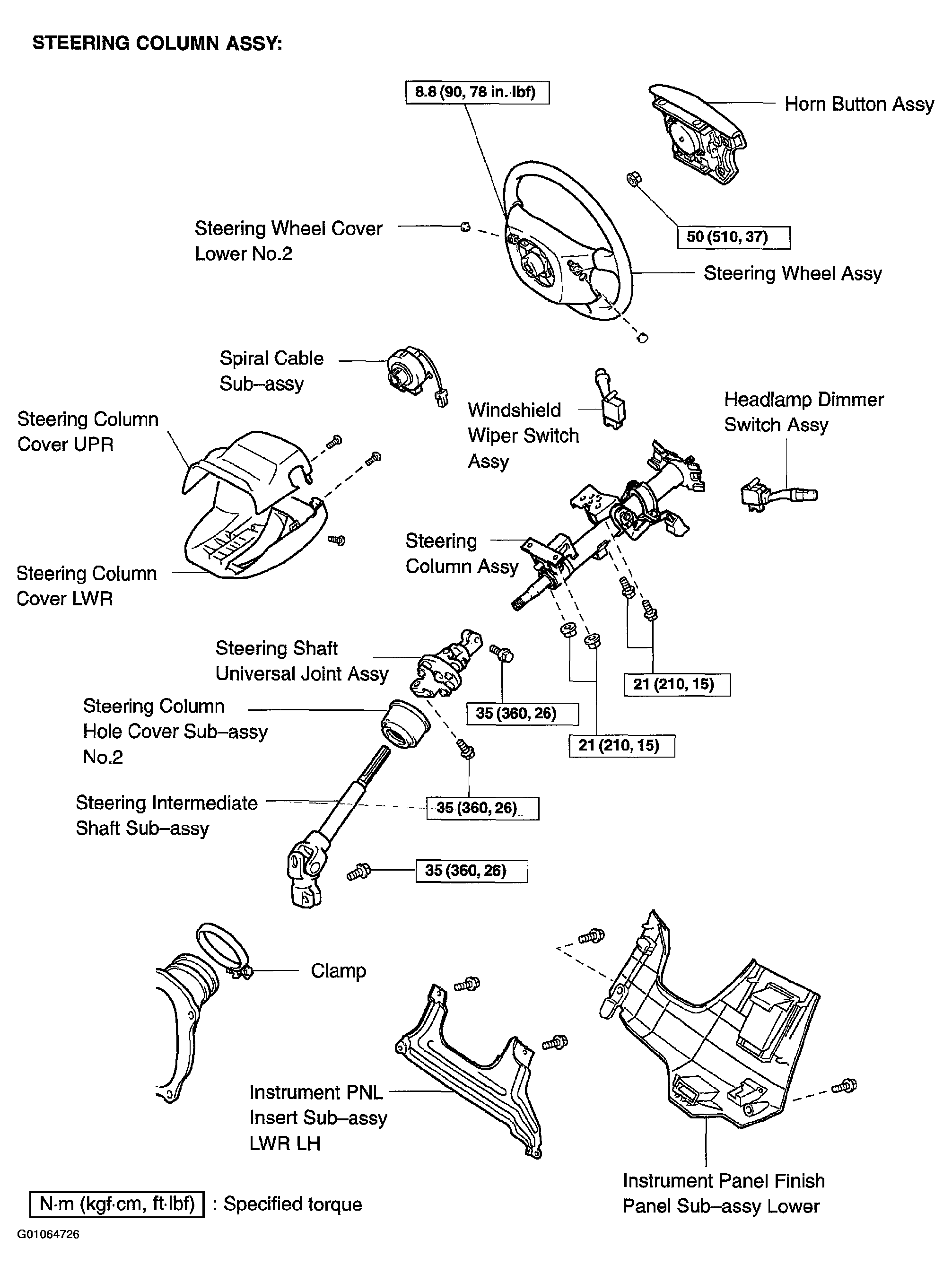

Fig 1: Identifying Components For Steering Column Removal
G01064726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

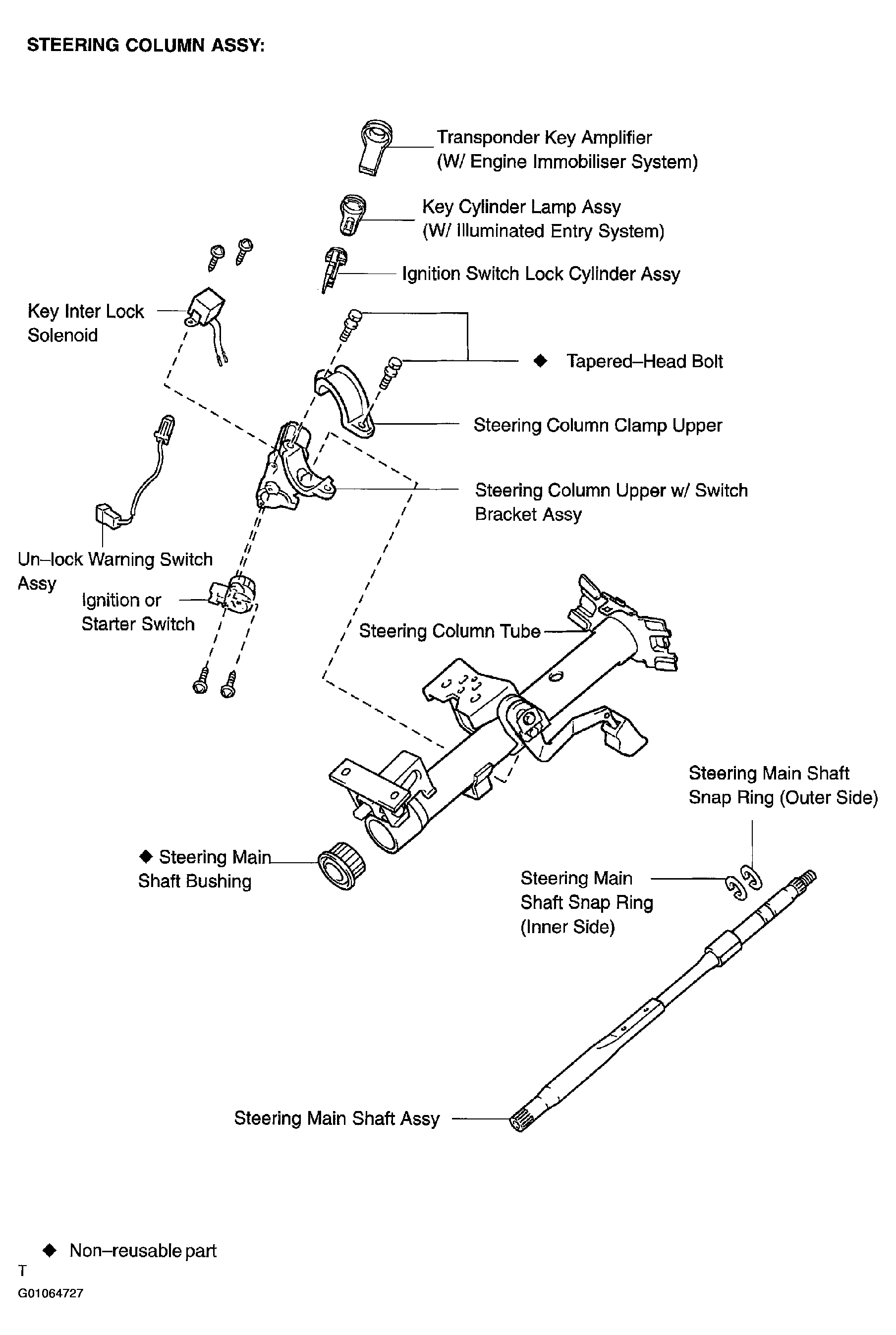

Fig 2: Exploded View Of Steering Column
G01064727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
