Abs Actuator: Components

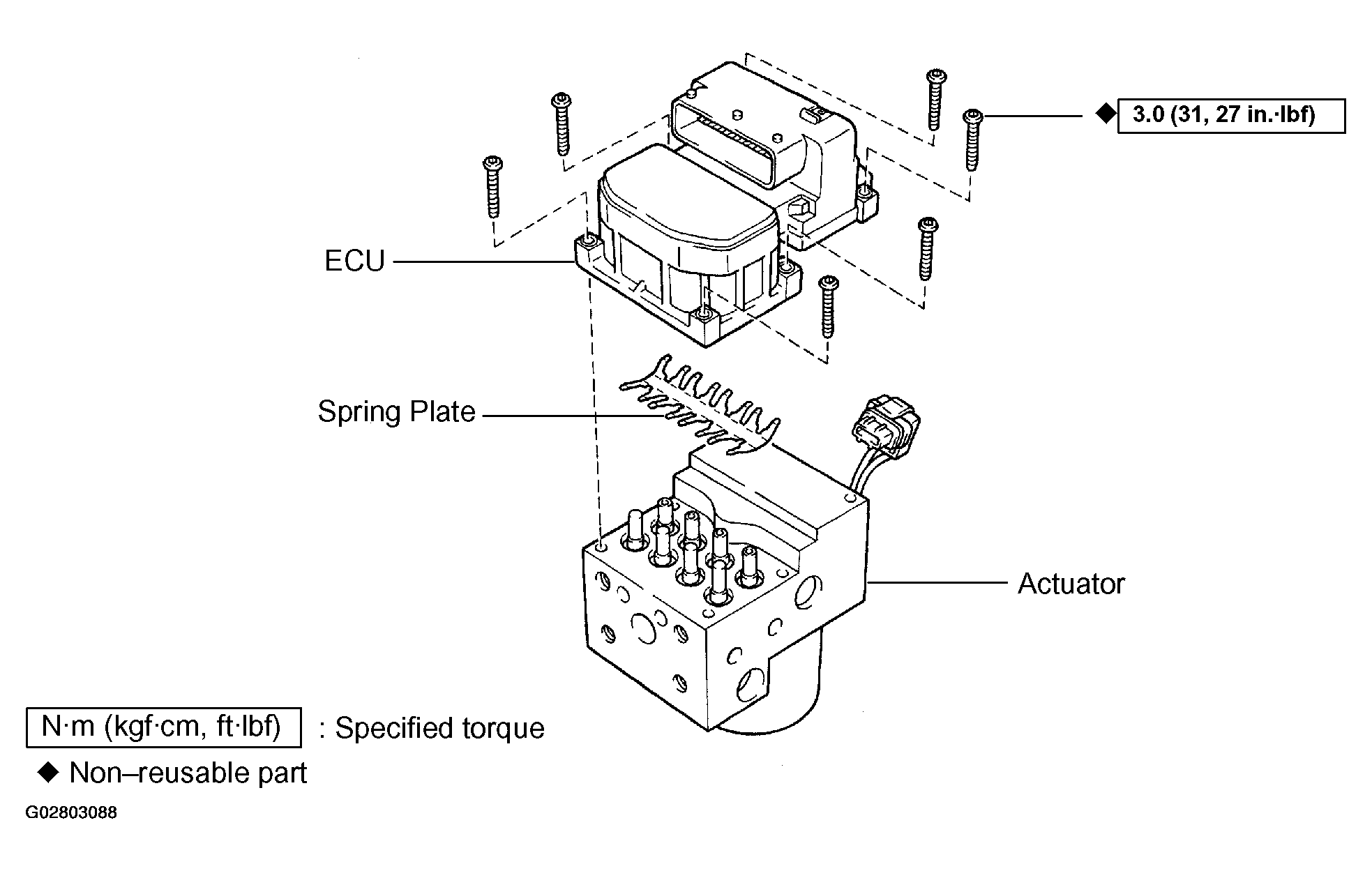

Fig 1: Exploded View And Torque Specification Of ABS Actuator (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

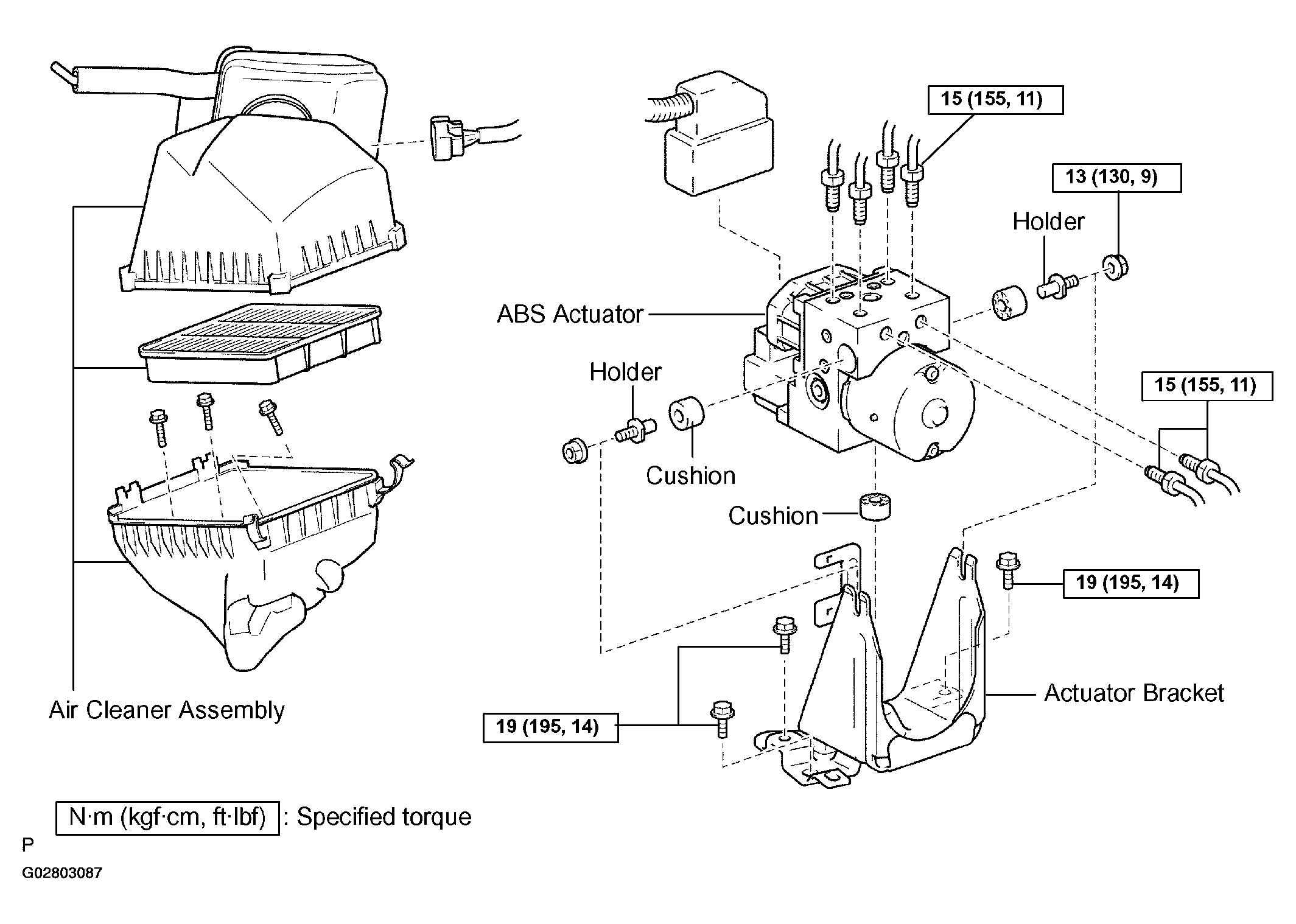

Fig 2: Exploded View And Torque Specification Of ABS Actuator (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
