Diagnostic Trouble Code Chart
HINT:
- Using SST 09843-18020 connect the terminals Tc and E1 of the DLC1 or DLC2.
- If a malfunction code is displayed during the DTC check, check the circuit listed in code. For details of each code, refer to appropriate code under "DTC No." in Fig 1.

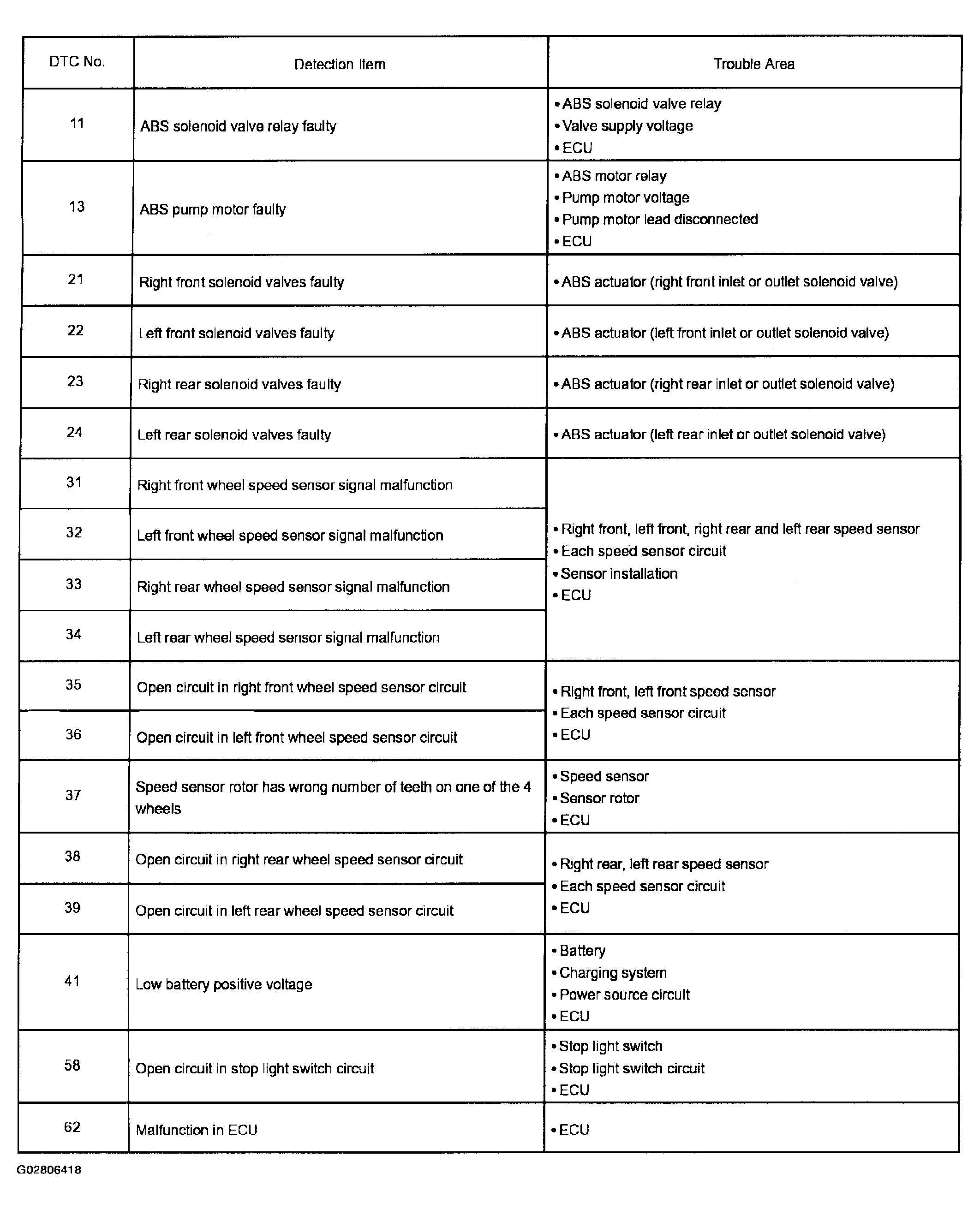

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC 11 | ABS Solenoid Valve Relay Circuit |
| DTC 13 | Pump Motor Circuit |
| DTC 21, 22, 23, 24 | ABS Solenoid Valve Circuit |
| DTC 31, 32, 33, 34, 35, 36, 38, 39 | Speed Sensor Circuit |
| DTC 37 | Speed Sensor Rotor Faulty |
| DTC 41 | Power Source Circuit |
| DTC 58 | Stop Light Switch Circuit |
| DTC 62 | ABS ECU Malfunction |
