Component Locations
NOTE:
For multiplex control system component locations, see
Fig 1
.

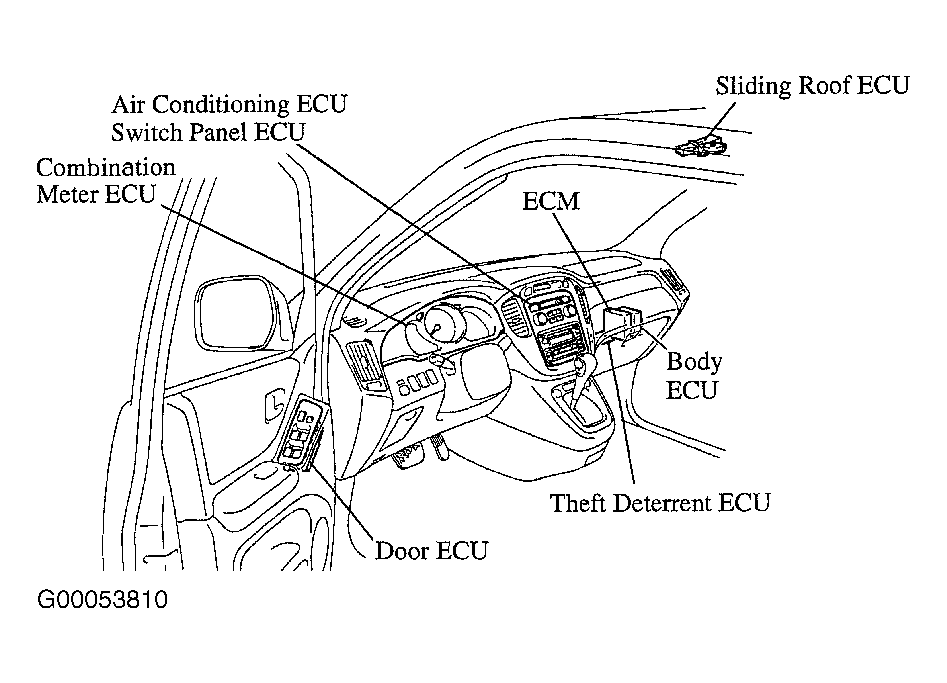

Fig 1: Identifying Control Units Of BEAN Communications Network
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
