Home › Toyota › 2001 › Prius › Repair and Diagnosis (Single Page) › Engine Mechanical › Cooling System (Mechanical) › Radiator And CONDENSOR Module › Components

Radiator And CONDENSOR Module: Components

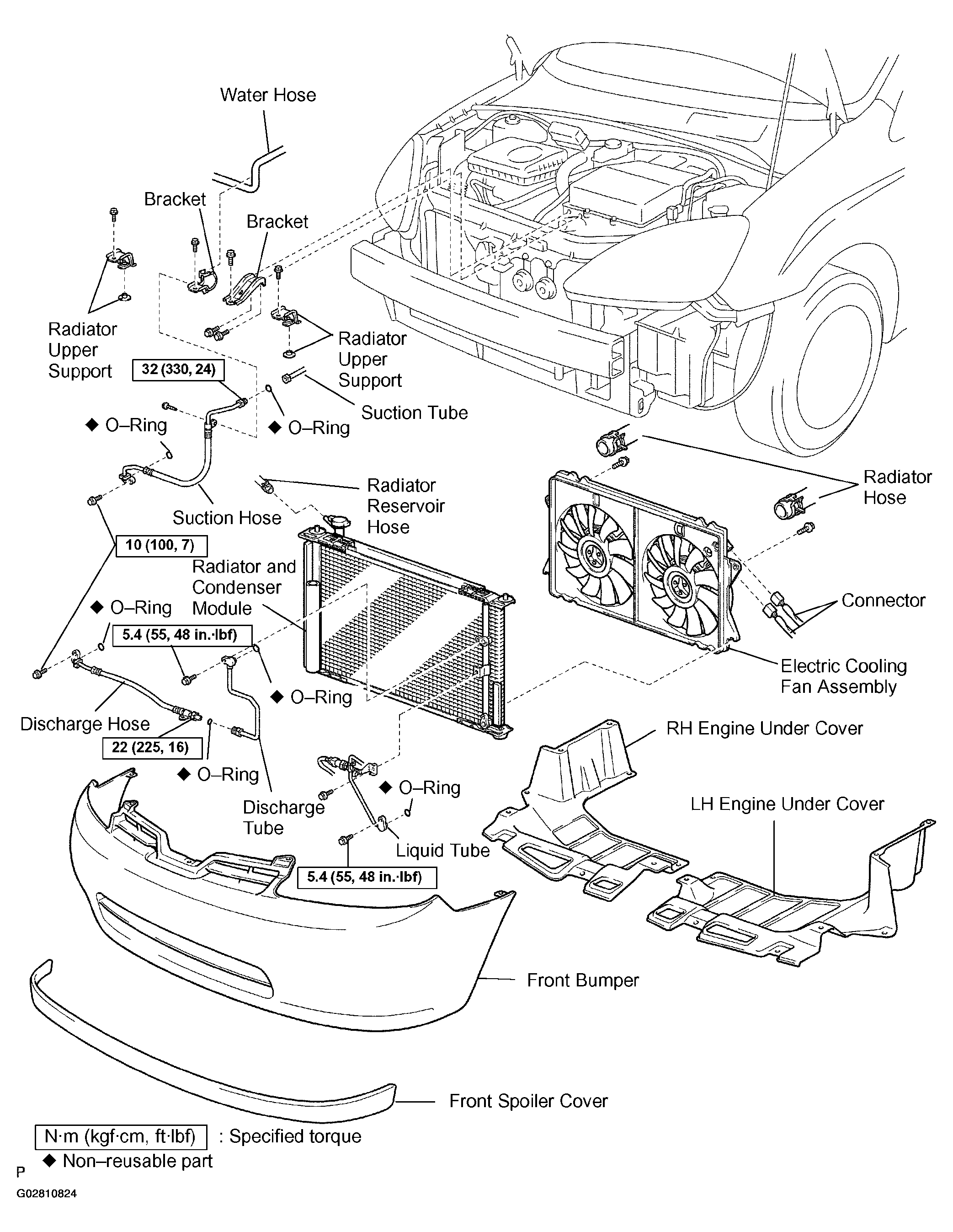

Fig 1: Identifying Components For Radiator & Condenser Module Removal
G02810824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
