Component Locations

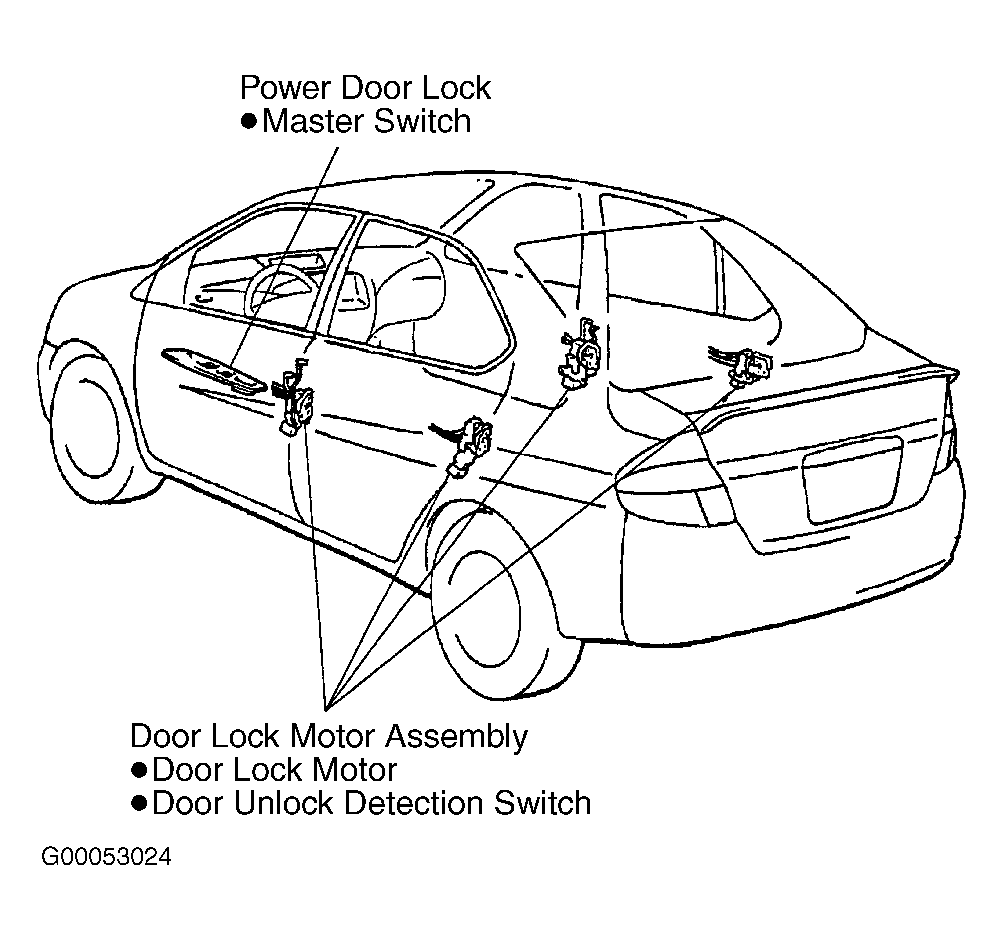

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body ECU | Attached To Instrument Panel Fuse Block |
| Door Key Lock & Unlock Switch | In Each Front Door |
| Door Lock Motor Assembly | In Each Door |
| Door Lock Motor | In Door Lock Motor Assembly |
| Door Unlock Detection Switch | In Door Lock Motor Assembly |
| Front Door Key Lock Switch | In Front Door Lock Motor Assembly |
| Ignition Switch | Inboard Side Of Steering Column |
| Instrument Panel Fuse Block | Behind Instrument Panel Left End Cover |
| Power Door Lock Switch | In Front Door Armrest Switch Panel |
| RKE Transmitter | Integral Of Ignition/Door Key |
