Parts Location

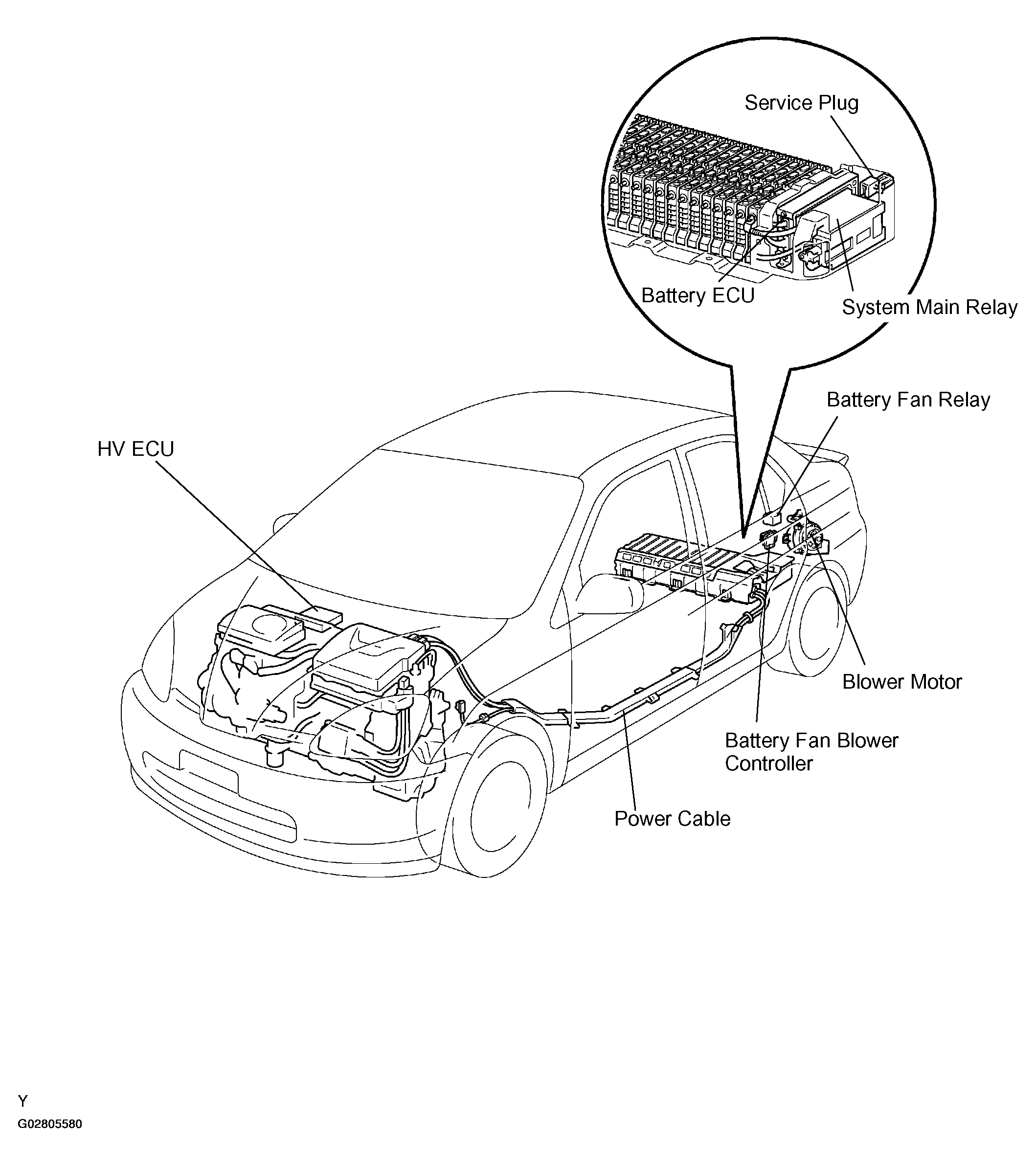

Fig 1: Identifying HV Battery Control System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
