Engine Exhaust System: Components

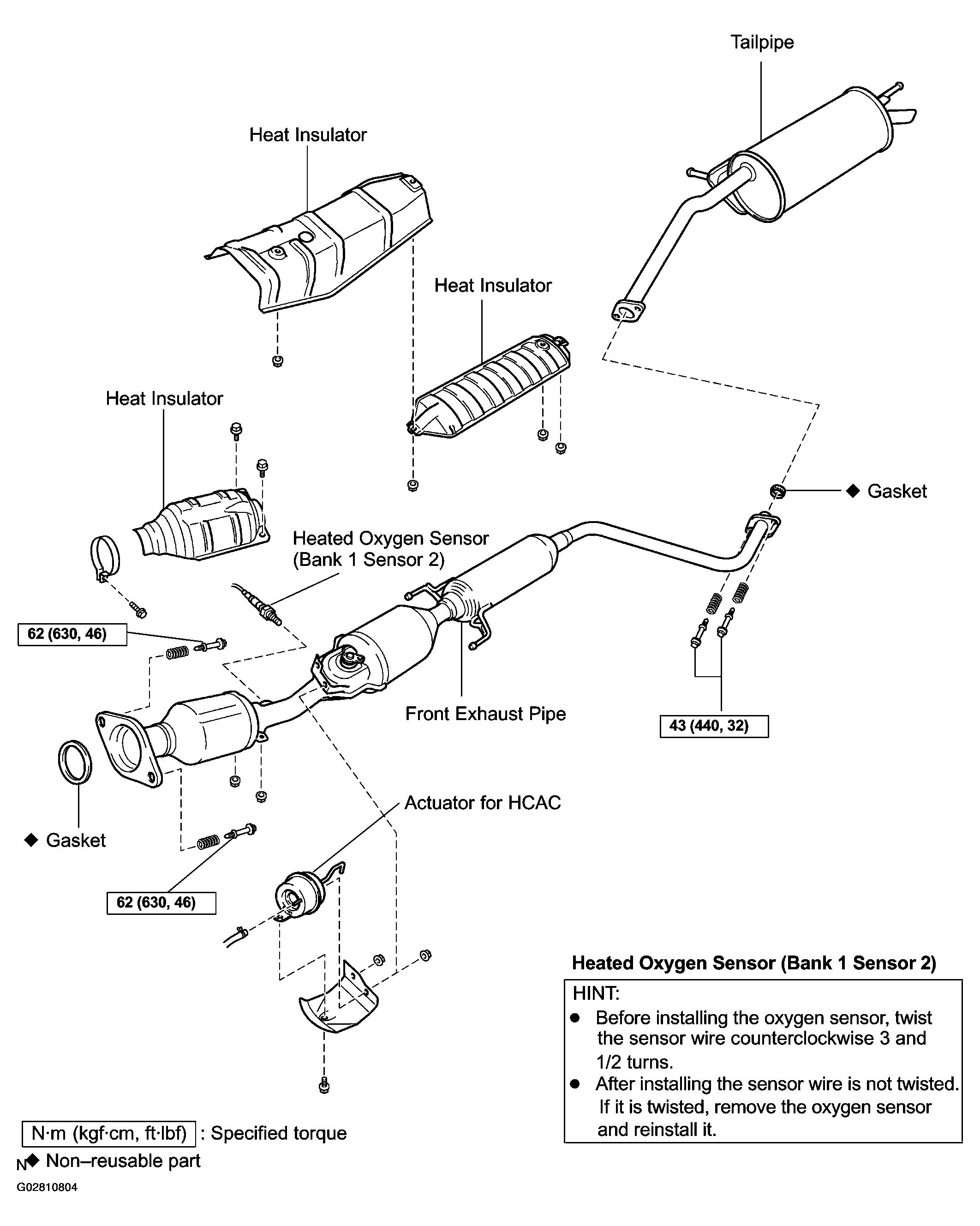

Fig 1: Identifying Exhaust System Components
G02810804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
