Stop Light Switch Circuit

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

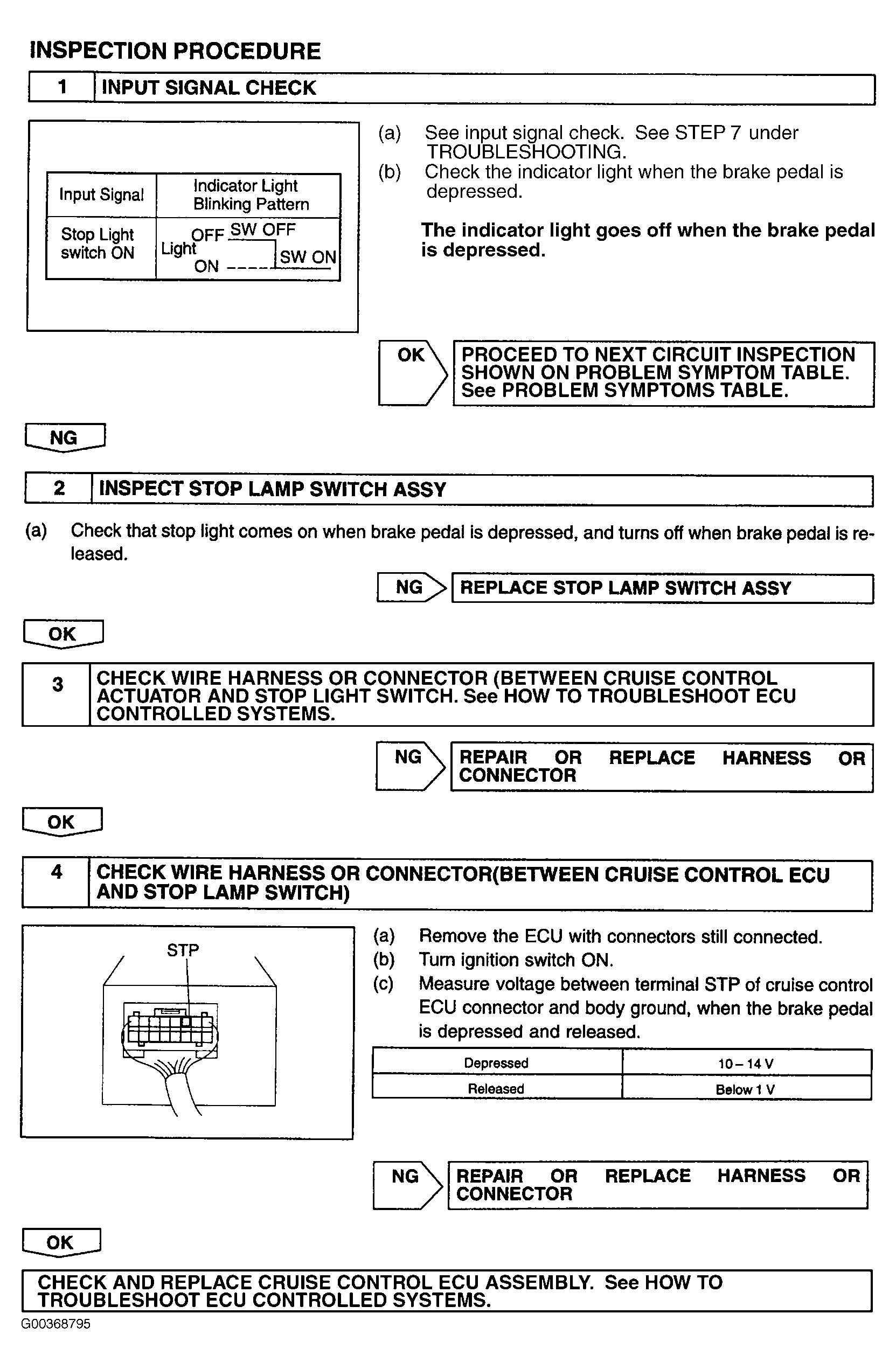

For Stop light switch circuit testing procedure, see Fig 1-Fig 2 .

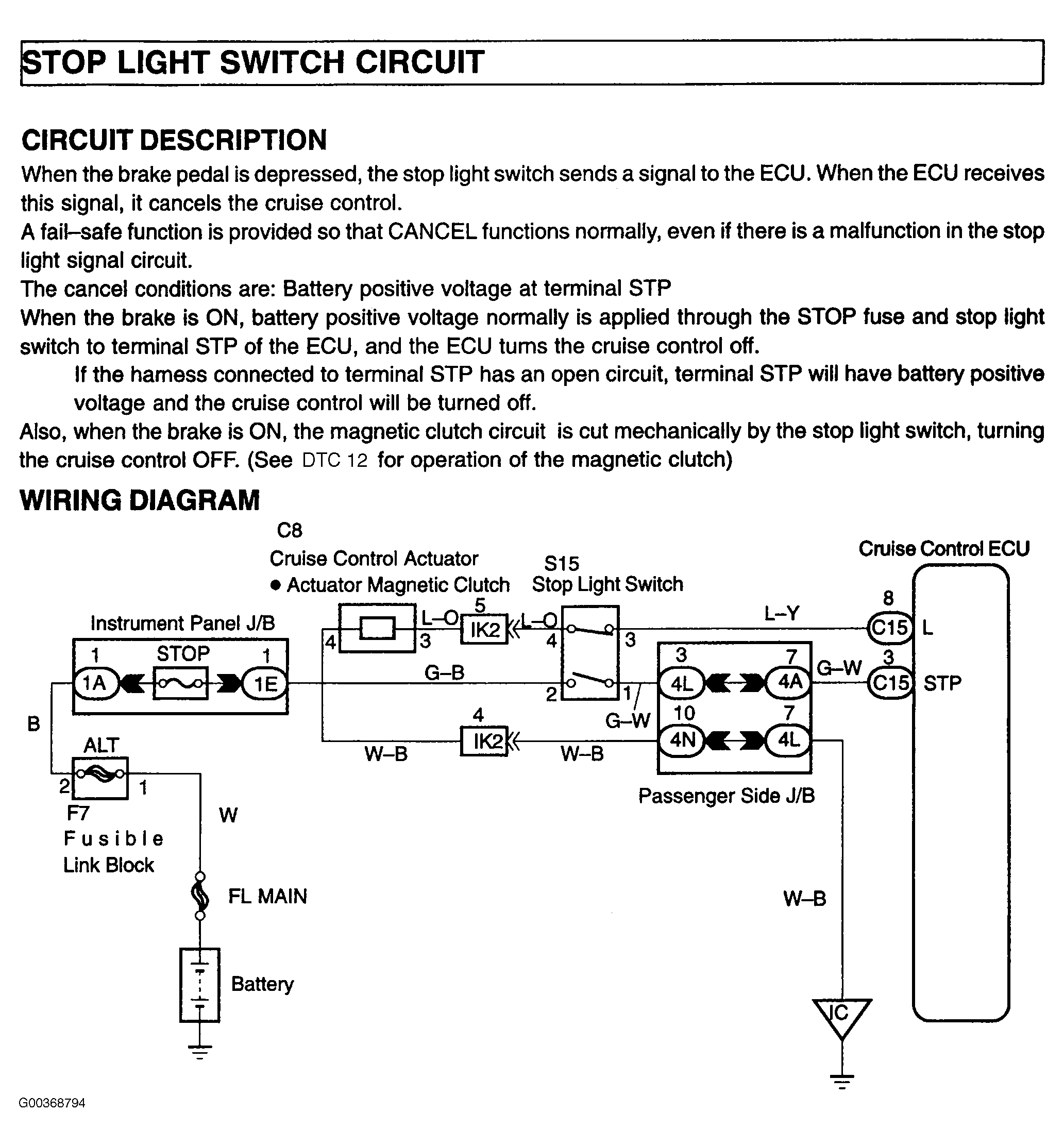

Fig 1: Testing Stop Light Switch Circuit (1 Of 2)
