Torque Specifications: Highlander
TORQUE SPECIFICATIONS (HIGHLANDER)
| Application |
Ft. Lbs. (N.m) |

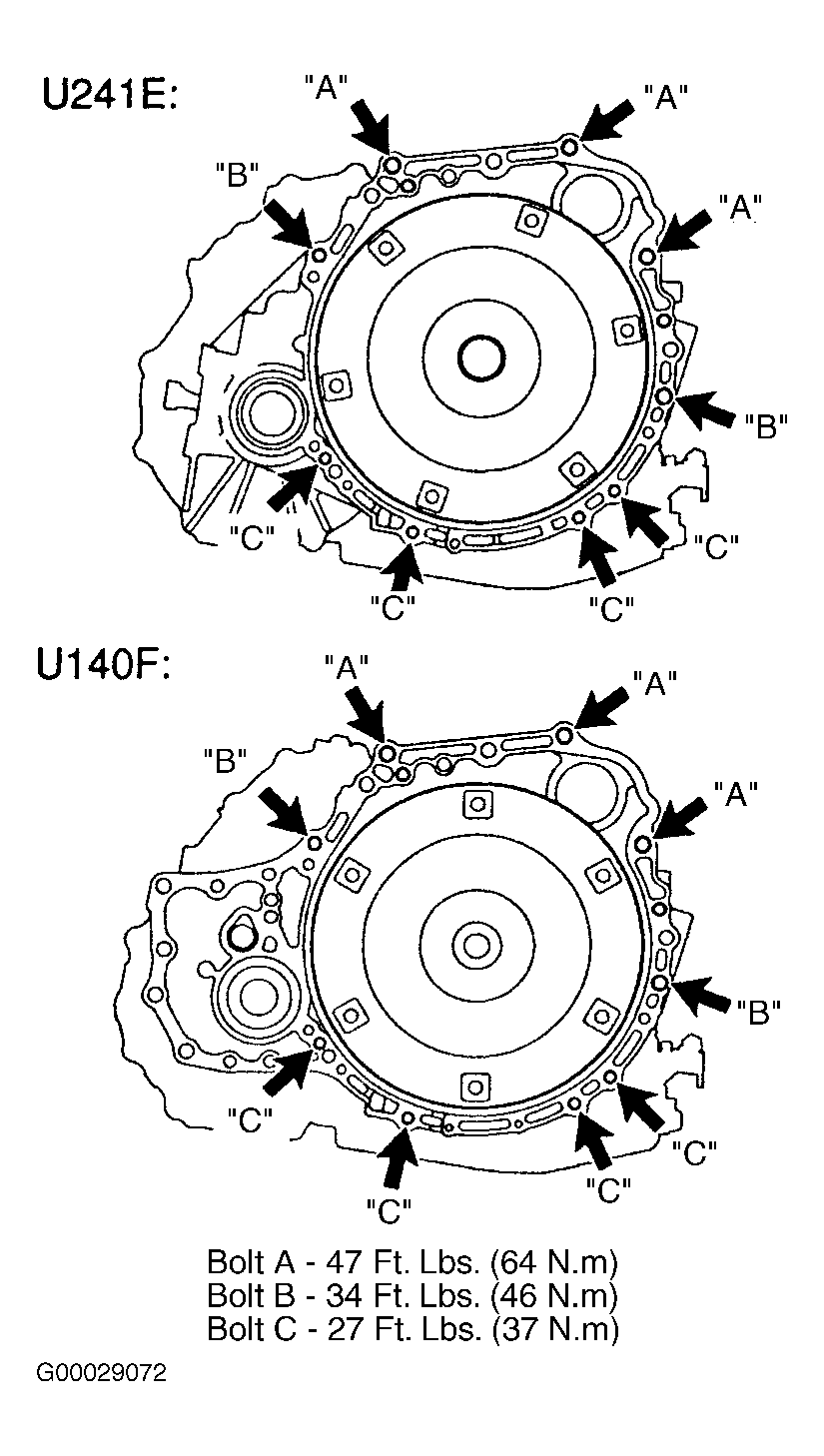

| Automatic Transaxle Mounting Bolts |
| Bolt "A" |
47 (64) |
| Bolt "B" |
34 (46) |
| Bolt "C" |
27 (37) |
| Oil Cooler Inlet & Outlet Tube Bolts |
25 (34) |
| Engine Mounting Brackets (Front Right) |
47 (64) |
| Manifold Stay Bolt/Nut (6-Cylinder) |
| Front |
| Bolt |
15 (20) |
| Nut |
|
| Starter Bolts |
| 4-Cylinder |
29 (39) |
| 6-Cylinder |
31 (42) |
| Torque Converter Bolts |
30 (41) |
| Wire Harness Bolt |
19 (25) |
| INCH Lbs. (N.m) |
| Control Cable Bracket Bolts |
106 (12) |
| Flywheel Housing Under Cover Bolts (6-Cylinder) |
71 (8) |
| Oil Filler Tube Bolt |
49 (6) |
| Starter Wire Nut |
87 (9) |
| Wire Harness Clamp Bolts |
74 (8) |
